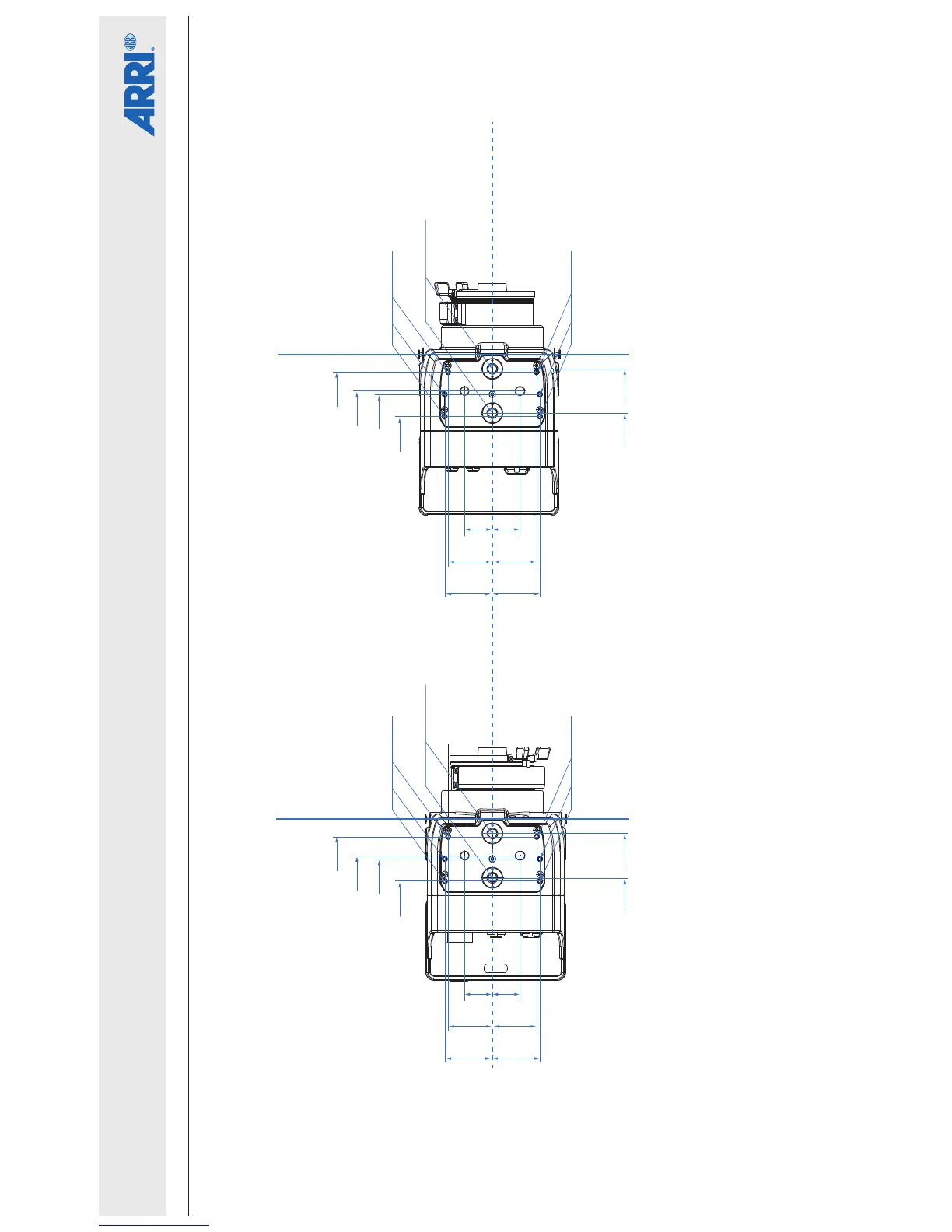

Technical Data are subject to change without notice.CAMERA DIMENSIONS – Version 2012-03
ALEXA M
Head Top Image Plane
Head Bottom Image Plane
Optical Center
43 mm
1.69”
25 mm
0.98”
43 mm
1.69”
40 mm
1.58”
40 mm
1.58”
25 mm
0.98”
13 mm
0.51”
53 mm
2.09”
16 mm
0.63”
36 mm
1.42”
56 mm
2.2”
33 mm
1.3”
M4 (4 mm deep) M4 (4 mm deep)
UNC 3/8“–16 (10 mm deep)
43 mm
1.69”
25 mm
0.98”
43 mm
1.69”
40 mm
1.58”
40 mm
1.58”
25 mm
0.98”
13 mm
0.51”
53 mm
2.09”
16 mm
0.63”
36 mm
1.42”
56 mm
2.2”
33 mm
1.3”
M4 (4 mm deep) M4 (4 mm deep)
UNC 3/8“–16 (10 mm deep)
