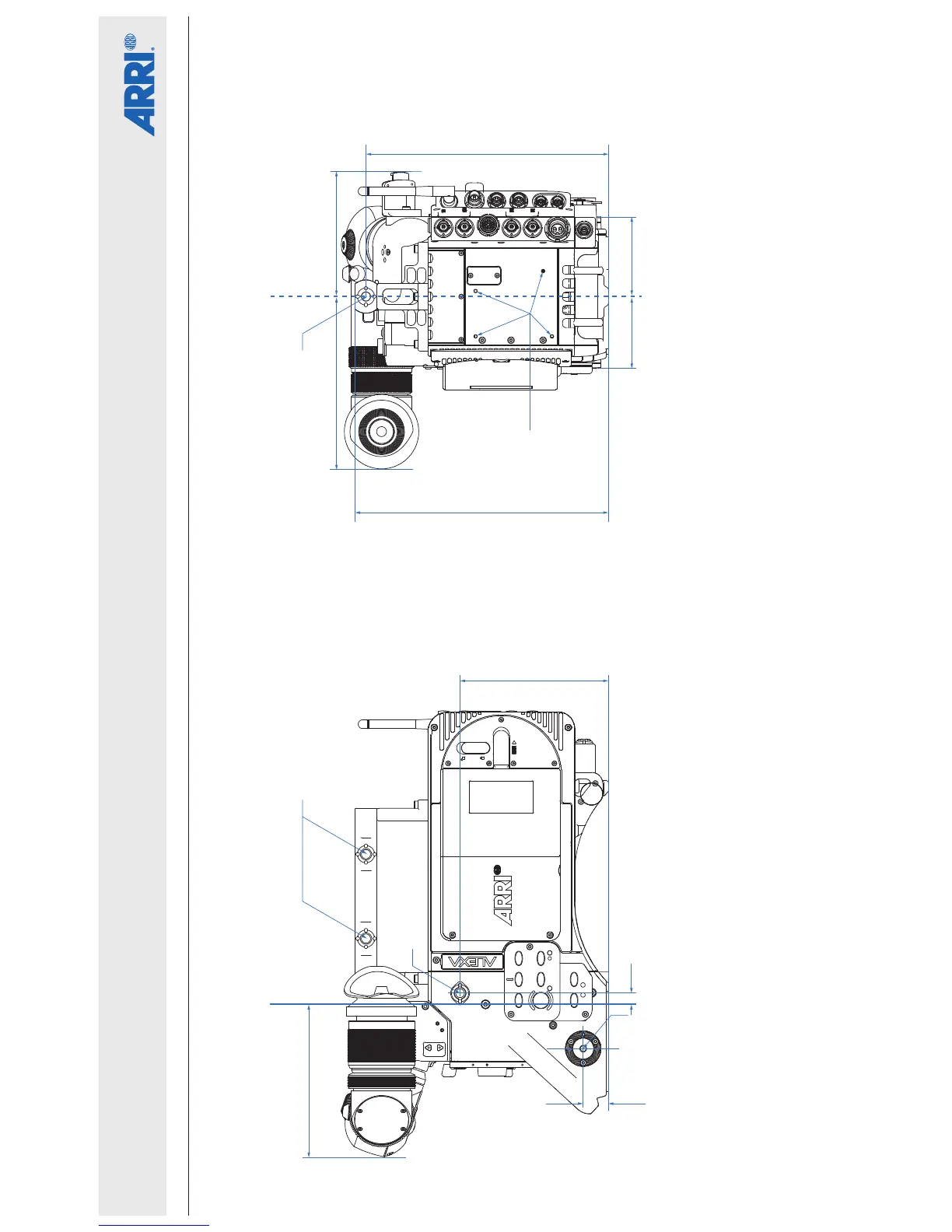

Technical Data are subject to change without notice.CAMERA DIMENSIONS – Version 2013-04
ALEXA Studio with XR Module
Camera Left Image Plane
Camera Back Optical Center
229 mm
9.02”
134 mm
5.28”
22.8 mm
0.9”
10 mm
0.39”
219 mm
8.62”
112 mm
4.41”
156 mm
6.14”
138 mm
5.43”
M6 (3.5 mm deep)
M3 (6 mm deep)
UNC 3/8“–16 (10 mm deep)
UNC 3/8“–16 (10 mm deep)UNC 3/8“–16 (10 mm deep)
64.9 mm
2.56”
71.9 mm
2.83”
