The Viewfinder Extension Bracket VEB-3 extends the mounting point of
the EVF-1 further back. It can be attached to a tripod head for use with
geared heads or greater comfort when using fluid heads using its
standard attachment point for the ARRI Eyepiece Leveler EL-3. The VEB-
3 has been improved over the VEB-1 in the following aspects:
The redesigned shape provides greater sturdiness at a lighter
weight.
The blue security pin at the VMB-3 connecting end prevents the
VEB-3 from accidently dropping out when it is released.
The connection part to the Eyepiece Leveler EL-3 is spring
loaded so that it automatically moves away from the camera
body when it is not in use.
The VEB-3 features a fold-out arm that can be used to rest the
VEB-3 on the camera body when moving the camera.
To avoid damage to the VMB-3 when using the VEB-3 with an eyepiece
leveler, loosen the friction on VMB-3’s rotating assembly.

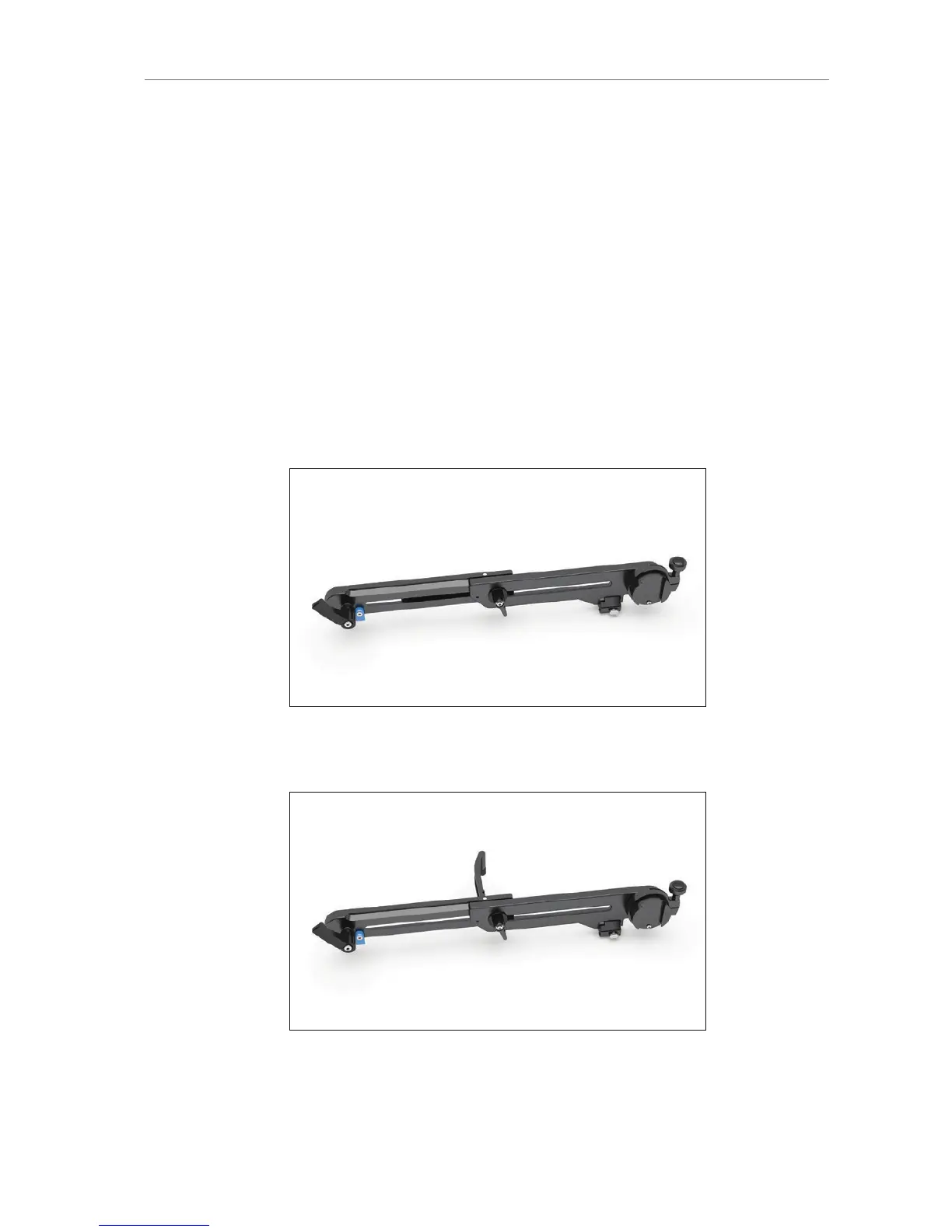

Figure 20: VEB-3 with closed fold-out arm
Figure 21: VEB-3 with opened fold-out arm
