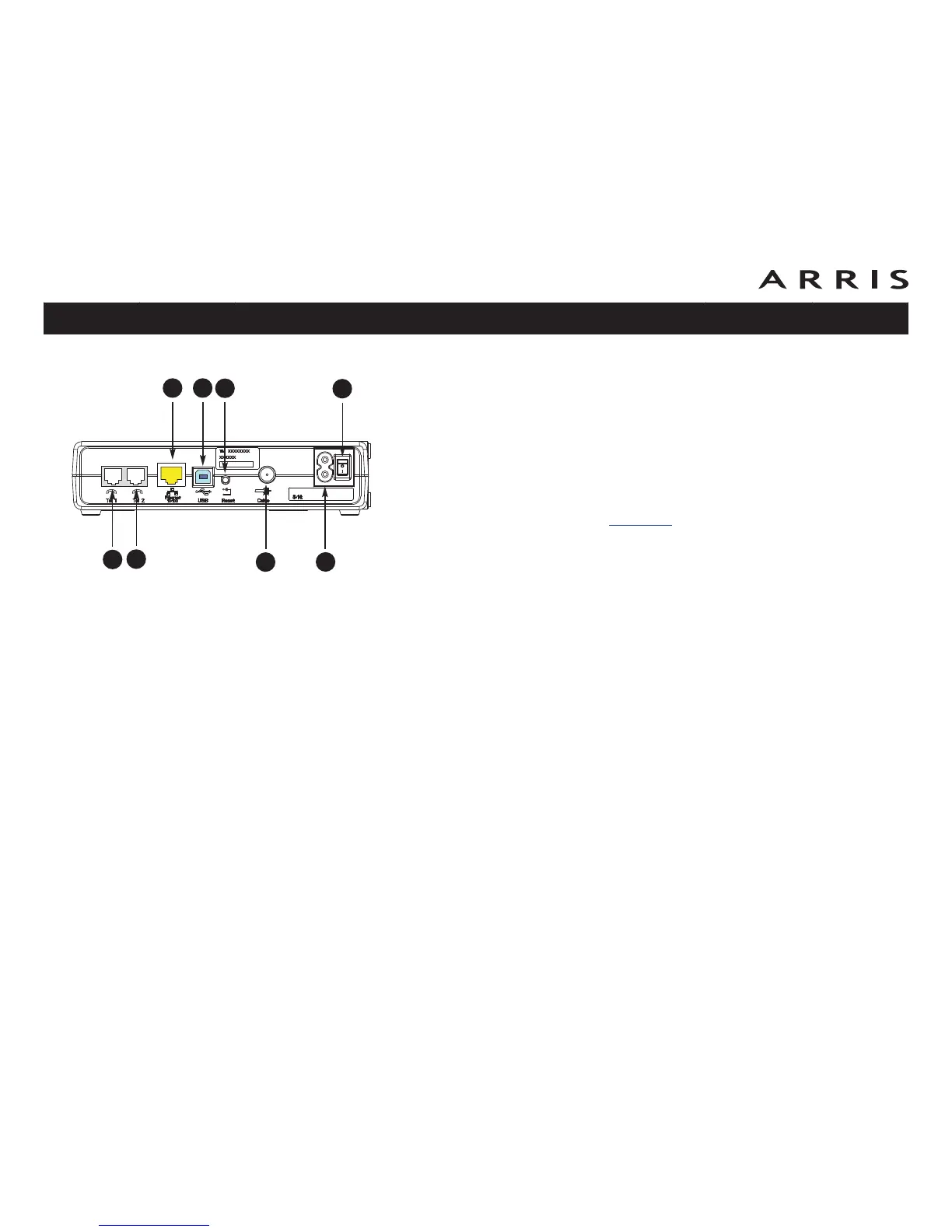

TM602S Rear Panel
A Tel 1 (grey): connector for the first phone line.
B Tel 2 (grey): connector for the second phone line.
C Ethernet connector (yellow): for use with a computer or home network
LAN connection.
D USB connector (blue): for use with a computer USB connection.
E Reset button: resets the Telephony Modem as if you power cycled the unit.
Use a pointed non-metallic object to press this button.
F Cable: connector for the coax cable
.
G Power: connector for the power cord.
H Power Switch: power On/Off switch
