Connecting the Telephony Modem
WARNING
Risk of injury or equipment damage
Connecting the Telephony Modem to the home’s existing telephone
wiring should only be performed by a professional installer. Physical con-
nections to the previous telephone provider must be removed and the
wiring must be checked; there must not be any voltage. Cancellation of
telephone service is not adequate. Failure to do so may result in loss of
service and/or permanent damage to the Telephony Modem.
1 Connect one end of the coax cable to the cable outlet or splitter, and the
other end to the Telephony Modem’s Cable connector (F). Tighten the con-
nections by hand, then tighten an additional 1/8 turn with a wrench.
Note: For best performance, use high-quality RG-6 type coax cable and
minimize or eliminate splitters between the cable jack and the Telephony
Modem.
2 Insert the plug from the power cord into the Power connector on the Tele-
phony Modem (G) and insert the power cord into a convenient AC outlet.
Model TM602S only: Make sure that the rear panel power switch (H) is set
to the ON position.
The Power light on the front of the Telephony Modem lights up, then flashes
once (refer to the Indicator Lights table for your model). See Troubleshoot
-
ing if the Power light does not turn on.
3 After connecting the coax cable and power, proceed as needed:
• Making Ethernet Connections OR
• Making USB Connections
(if equipped)
Note: Do not connect the same computer to both the Ethernet and USB
ports.

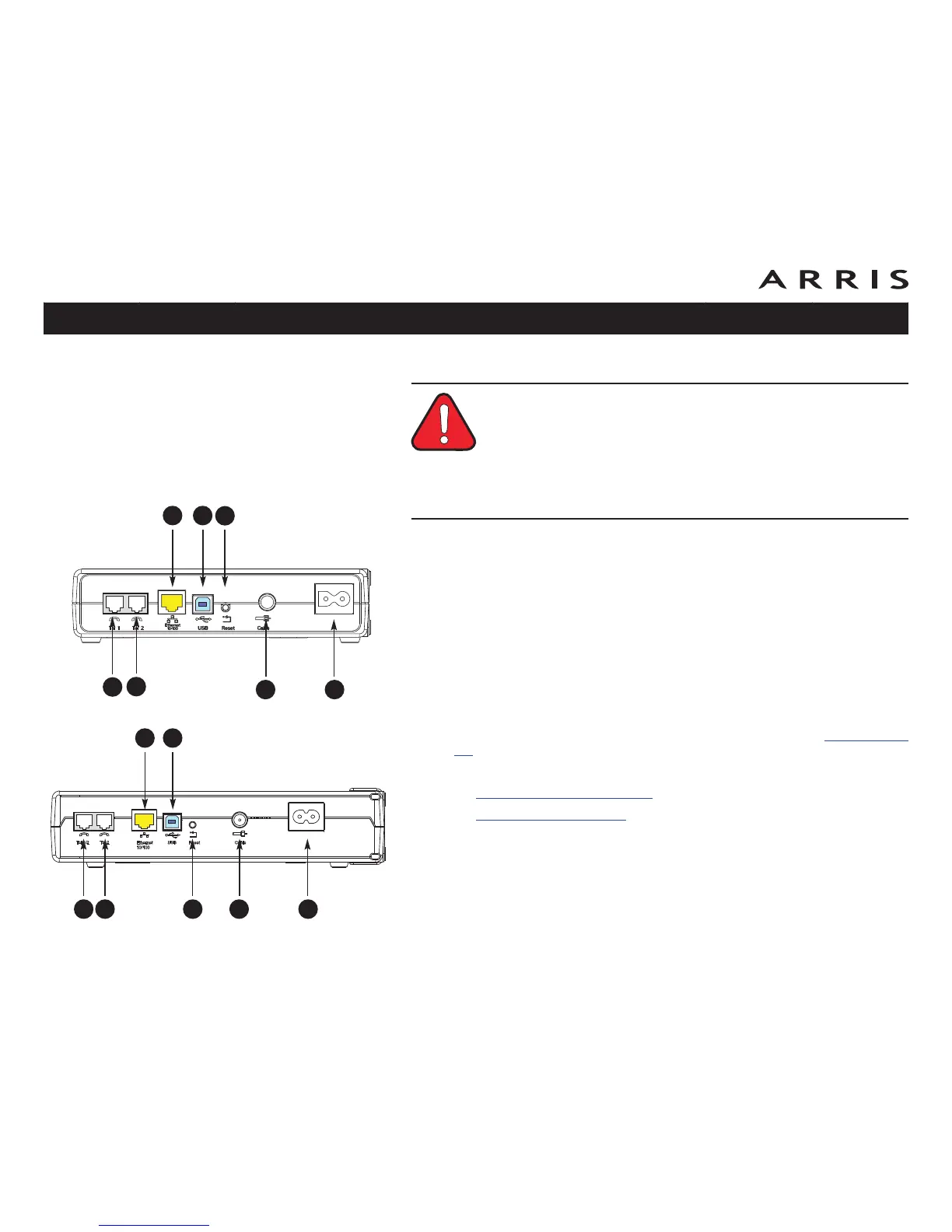

Touchstone TM602 Telephony Modem User’s Guide
