Making Ethernet Connections

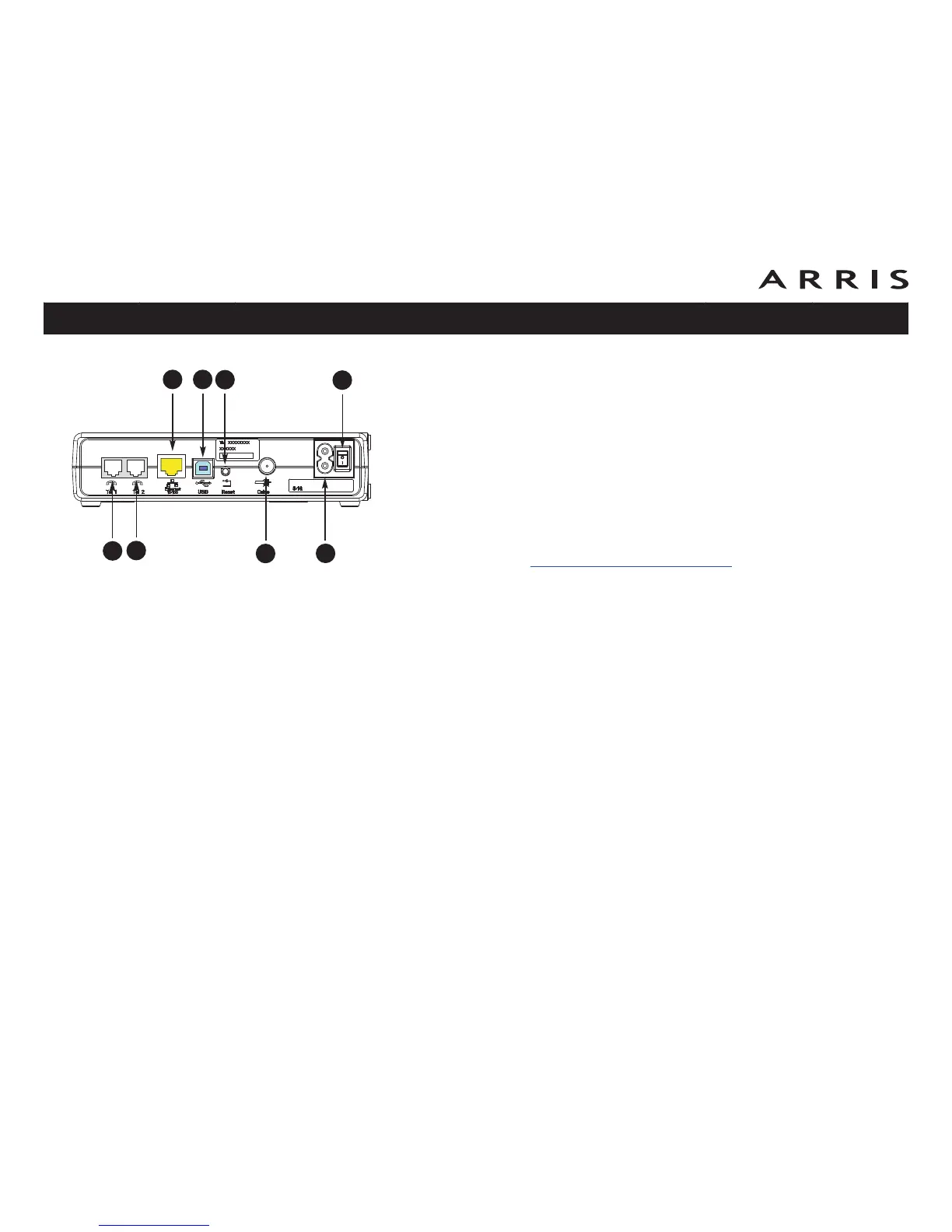

4 Connect one end of the Ethernet cable to the yellow port on the back of the
Telephony Modem labeled “Ethernet 10/100,” (C) and the other end to the
Ethernet port on a computer, hub, or broadband router.
Note: If you are connecting to a computer, use the Ethernet cable included
in the Telephony Modem package.
Making USB Connections
5 (Telephony Modems with USB ports only) Connect one end of the USB cable
to the blue USB port on the computer, and the other end to the blue USB
port on the back of the Telephony Modem (D).
Your computer should detect the Telephony Modem and begin installing the
drivers. See Installing USB Drivers on Your PC
for driver installation details.
Making Telephone Connections
6 Connect one end of the telephone cable to one of the grey telephone ports
on the back of the Telephony Modem (A or B). Connect the other end to the
telephone.
Note: If you have a TM602G Telephony Modem and a phone with two sep-
arate lines on a single RJ-14 cord, it must be plugged into the port labeled
“Tel 1/2”.
