OG1600 LEDs

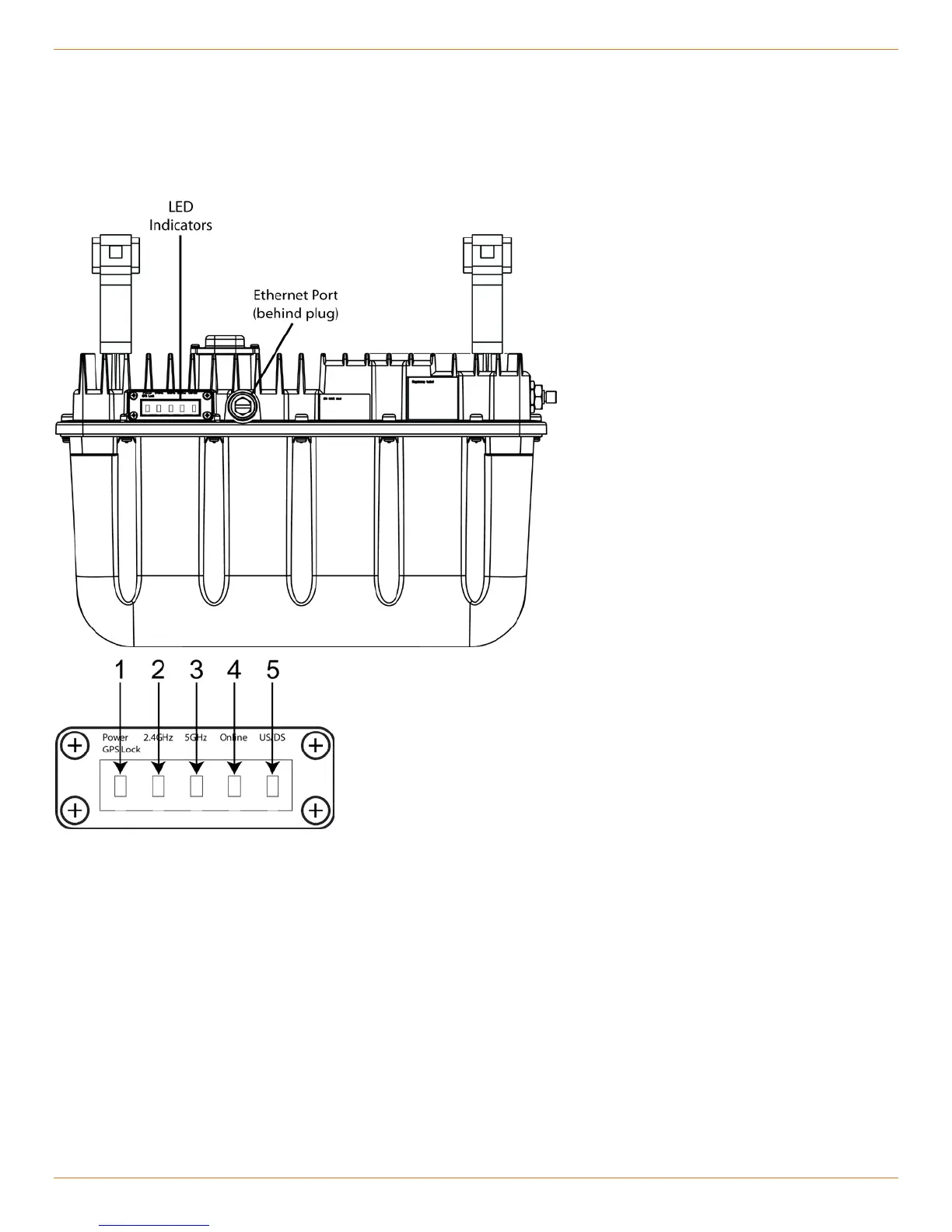

The OG1600 Outdoor Gateway includes several LED indicator lights on the outside of the case to assist in
troubleshooting.
1. Power: blinks to indicate that AC power is available to the unit. A solid (non-blinking) LED indicates that GPS lock has
been acquired.
2. 2.4GHz: indicates the status of the 2.4 GHz wireless LAN.
3. 5GHz: indicates the status of the 5 GHz wireless LAN.
4. Online: indicates internet data transmission status.
5. US/DS: indicates upstream/downstream connectivity.
