Chapter 6
Operate the Telephony Modem
This chapter describes the controls and features available on the Telephony Modem, and
covers basic troubleshooting procedures.
■
Set up your computer to use the Telephony Modem (page 32)
■
Indicator lights for the TM804 (page 32)
■
Use the Reset button (page 35)
■
Boot from battery (page 35)
Set up your computer to use the Telephony
Modem
Follow the instructions in the information packet supplied by your service provider. Contact
your service provider if you need help setting up your computer.

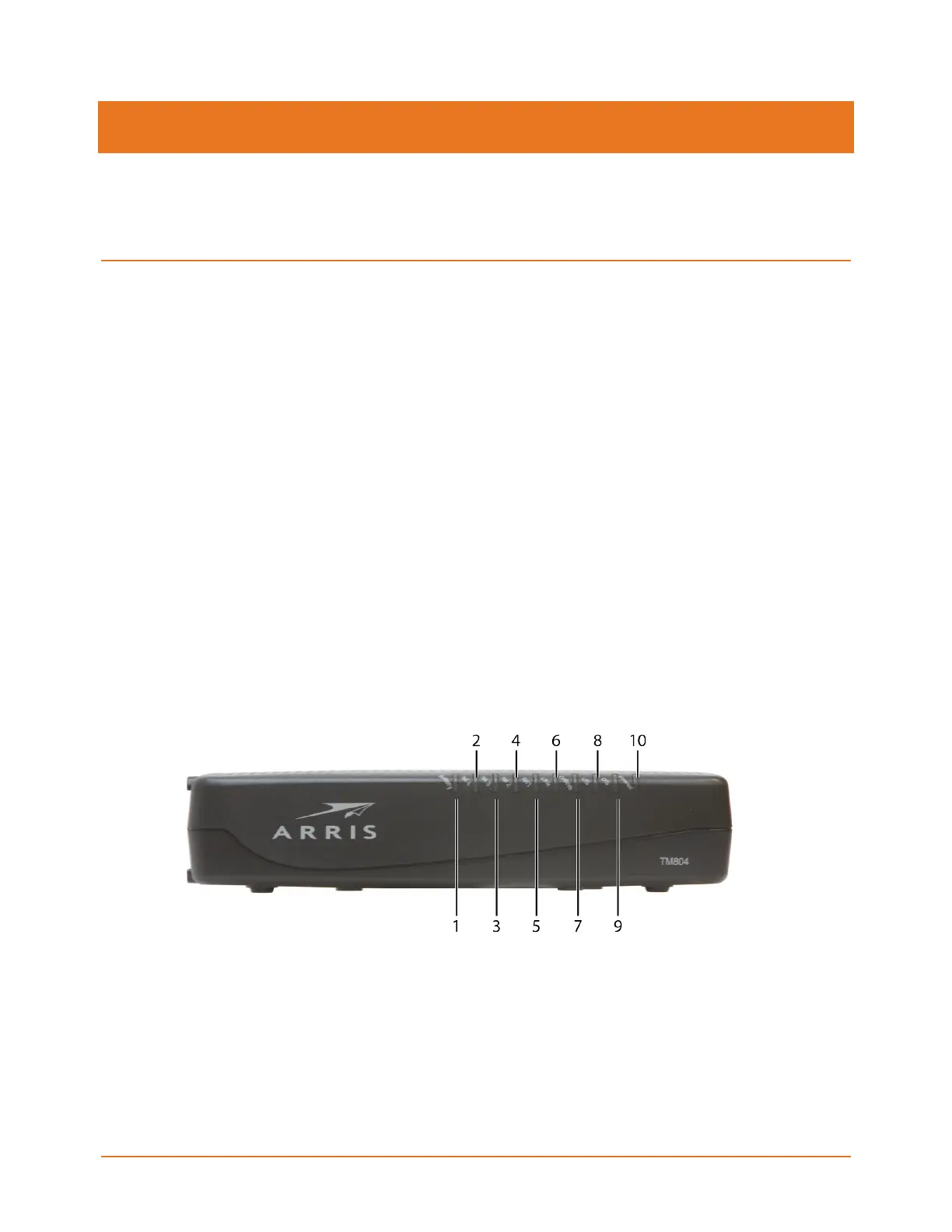

Indicator lights for the TM804
The Telephony Modem has LED indicator lights to assist in troubleshooting.
1. Battery: Indicates the battery status. if there is no battery, this LED will remain unlit.
2. Tel 4: Indicates the status of telephone line 4.
3. Tel 3: Indicates the status of telephone line 3.
4. Tel 2: Indicates the status of telephone line 2.
5. Tel 1: Indicates the status of telephone line 1.
6. Link: Indicates Ethernet connectivity between the Telephony Modem and the computer.
7. Online: Indicates Internet data transmission status.
Touchstone TM804 Telephony Modem User Guide STANDARD Revision 1.2 32
