VIP5662 IPTV Receiver Installation Guide 3
Rear Panel

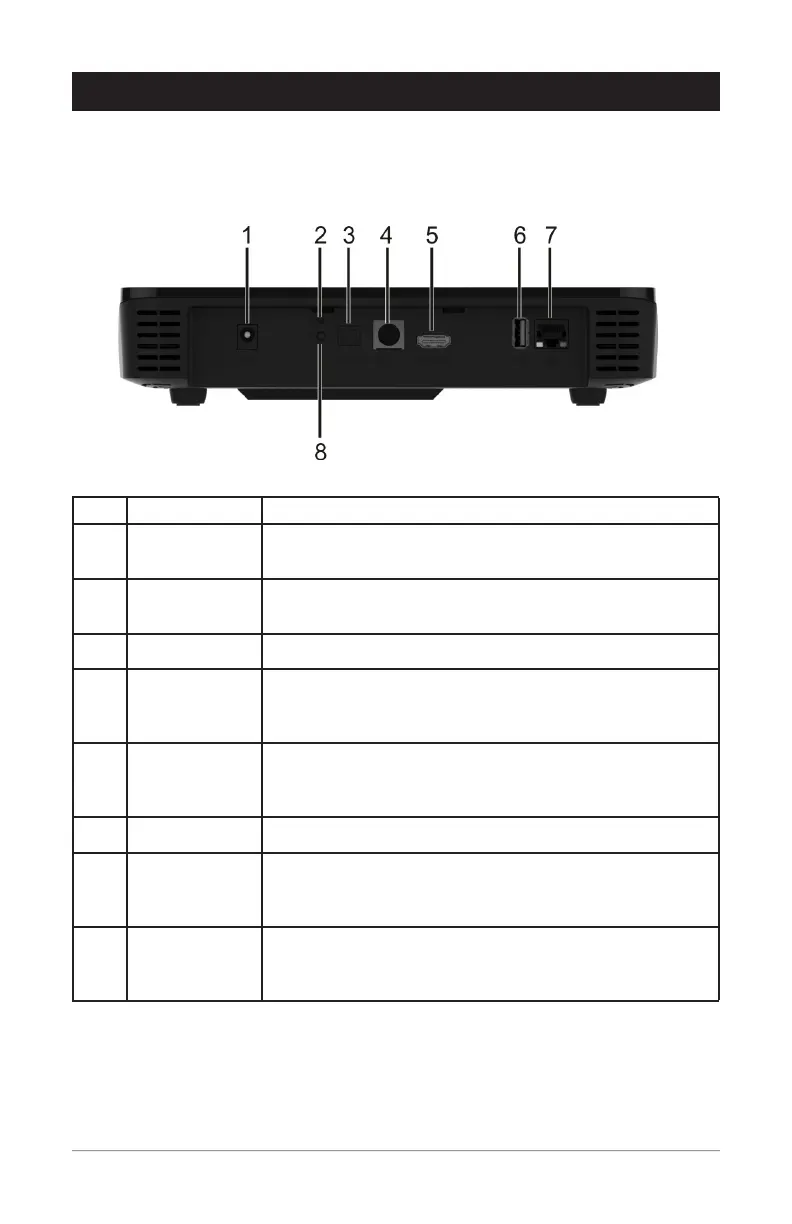

The illustration below and the table following list the rear-panel features, controls, and
connectors of the VIP5662.
Key Item Function
1 POWER
+12 VDC
Connector for the DC power adapter. Use only the adapter
specified for this VIP5662.
2 RESET
BUTTON
Press and release to trigger the System Recovery Process.
3 OPTICAL TOSLink (S/PDIF) digital audio output.
4 BREAKOUT
CABLE
CONNECTION
Alternative method for video/audio connections. Offers
analog component, composite, and stereo audio outputs.
5 HDMI™ OUT Connects to a High Definition TV or home theater receiver
with an HDMI input (for a DVI input, use an HDMI-to-DVI
adapter).
6 USB 3.0 Allows connectivity with USB 3.0 devices.
7 NETWORK Ethernet 10/100/1000Base-T RJ-45 port.
Link LED: Lights green when Ethernet connection detected.
Activity LED: Flashes amber with data traffic.
8 BLUETOOTH
PAIRING
Press and release to initiate Bluetooth remote control unit
pairing with receiver. Hold the button for 10 seconds to
unpair the Bluetooth remote control unit and the receiver.
