d14 Out-of-Band (OOB) Status
This diagnostic indicates the out-of-band control channel status. The information is updated every five
seconds.

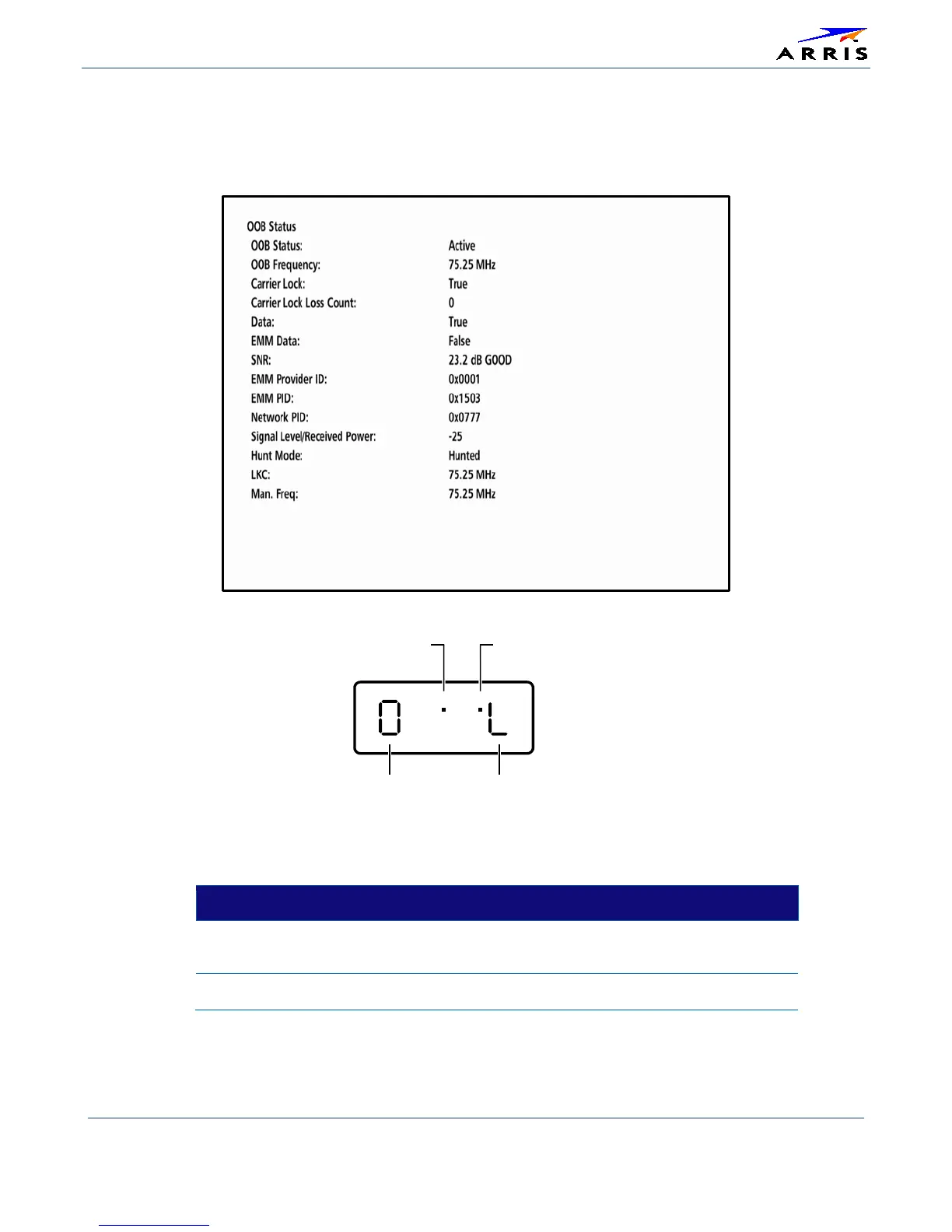

Table 43 – Out-of-Band Status Fields
FIELD DESCRIPTION
OOB Status
Indicates if the control channel is activated from both head-end
connect and ACS activation.
OOB Frequency
Indicates the OOB tuner center frequency, from 70 to 130 MHz.
OOB
diagnostic
indicator
Carrier lock indicator
(L=locked, U=unlocked)
Data activity
indicator
EMM data activity
indicator
