Installation
VMS1100 Hybrid QAM/IP Video Media Server • Installation and Operation Manual
-095-25654 x.1 This document is uncontrolled pending incorporation in an ARRIS CMS
Connecting a Standard-Definition TV, A/V Receiver, and VCR
Note: Because some entertainment equipment cannot simultaneously support composite video and S-
Video, never simultaneously connect both video inputs.
Note: This connection method does not support HDTV. For more information, see Connecting a
High-Definition TV (HDTV) for Video.

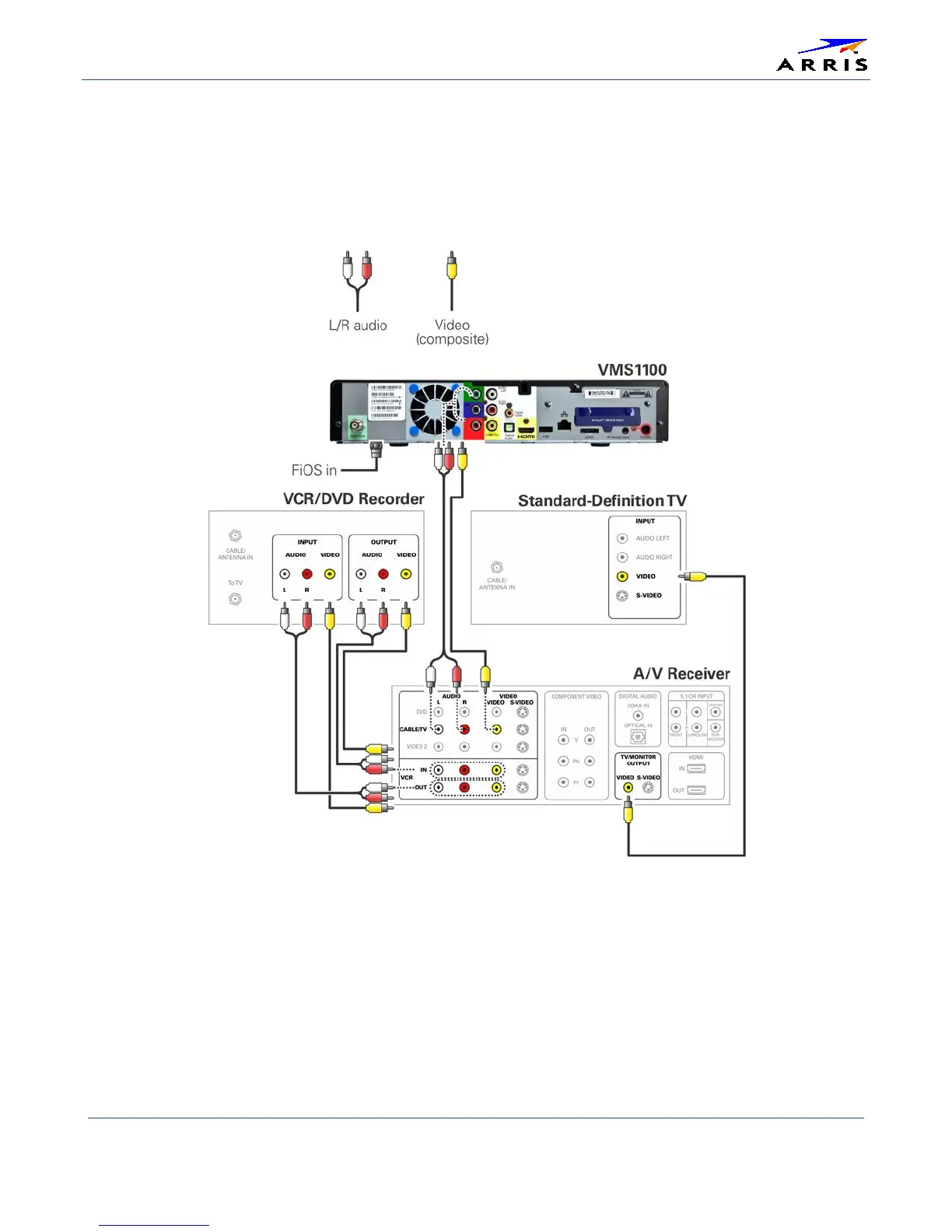

Figure 16 – Standard-Definition TV, A/V Receiver, and VCR Connection
