Installation
VMS1100 Hybrid QAM/IP Video Media Server • Installation and Operation Manual
22
365
-095-25654 x.1 This document is uncontrolled pending incorporation in an ARRIS CMS
Connecting a High-Definition TV (HDTV) and an A/V Receiver for Video
Note: If the A/V receiver includes an HDMI input and output, the VMS1100’s HDMI output can be
connected directly to the A/V receiver’s input and the A/V receiver’s HDMI output directly to the TV.
Because HDMI provides both video and audio output, no additional audio connections to the A/V Receiver
and TV are required.

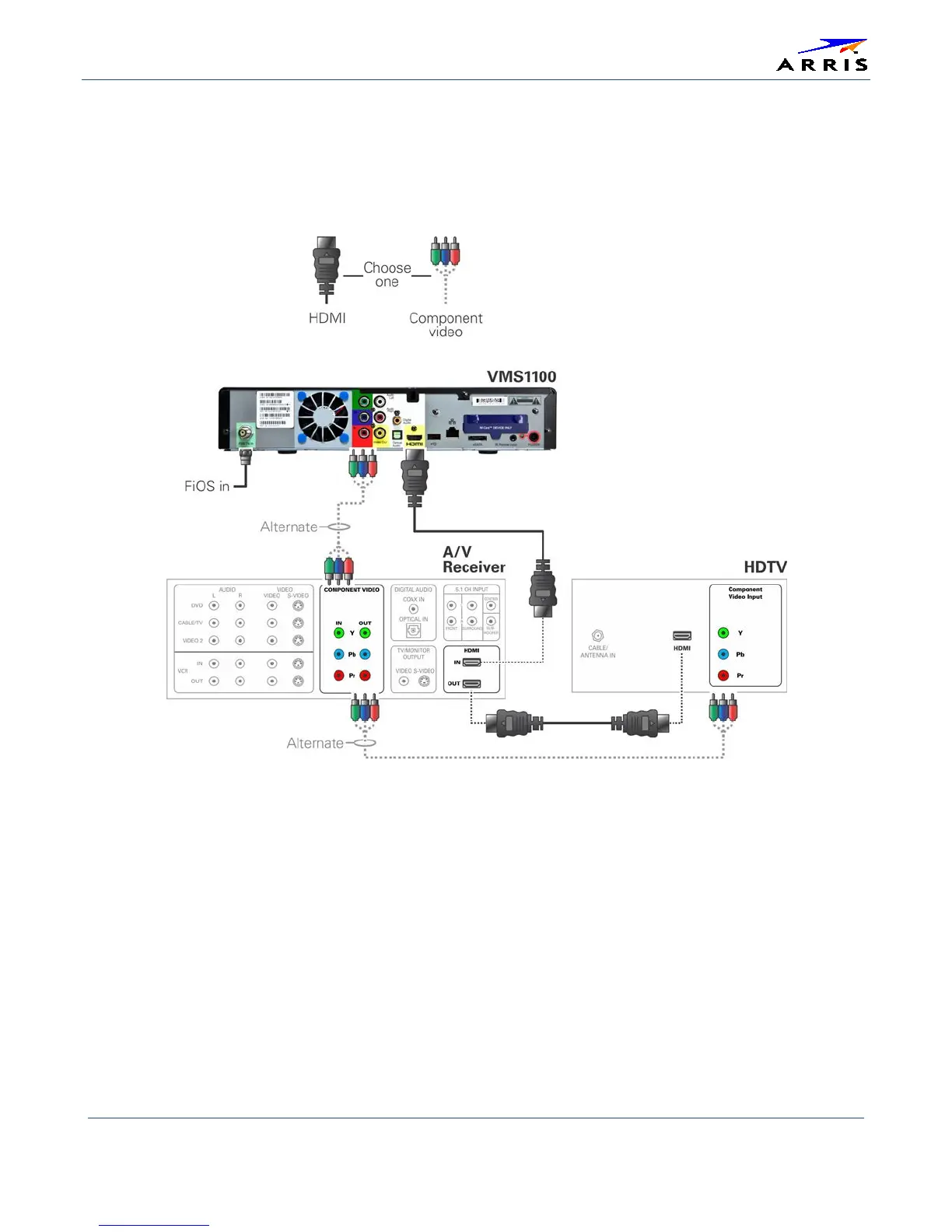

Figure 13 – High-Definition TV (HDTV) and an A/V Receiver for Video Connection
