Installation
VMS1100 Hybrid QAM/IP Video Media Server • Installation and Operation Manual
23
365
-095-25654 x.1 This document is uncontrolled pending incorporation in an ARRIS CMS
Connecting a High-Definition TV (HDTV) and an A/V Receiver for Audio
Note: If the A/V receiver includes an HDMI input and output, the VMS1100’s HDMI output can be
connected directly to the A/V receiver’s input and the A/V receiver’s HDMI output directly to the TV.
Because HDMI provides both video and audio output, no additional audio connections to the A/V Receiver
and TV are required.
Note: If the receiver can check the baseband and digital audio (S/PDIF) ports for appropriate channels,
connect both the baseband and digital audio connections. Otherwise, do not connect both the baseband
left/right composite connections and the coaxial digital connection. The baseband connections are not
necessary because the digital audio port provides a single audio interface for digital and analog channels.

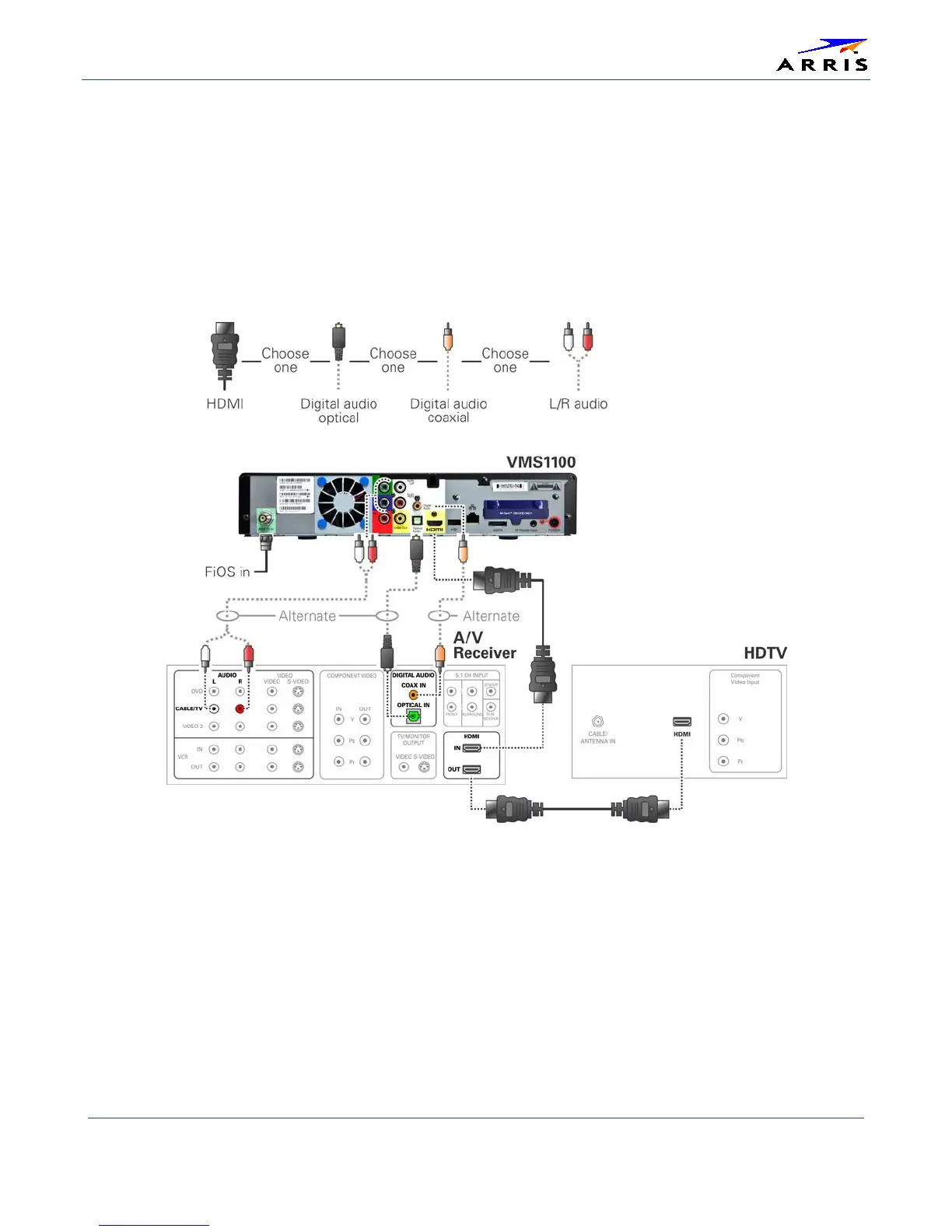

Figure 14 – High-Definition TV (HDTV) and an A/V Receiver for Audio Connection
