Diagnostics
VMS1100 Hybrid QAM/IP Video Media Server • Installation and Operation Manual
-095-25654 x.1 This document is uncontrolled pending incorporation in an ARRIS CMS
d04 Current Channel Status
This diagnostic displays current channels and services entering the home, including screens for Current
Channel Status. Six screens will display for the six IB tuners and a seventh screen will display for the IP
stream.

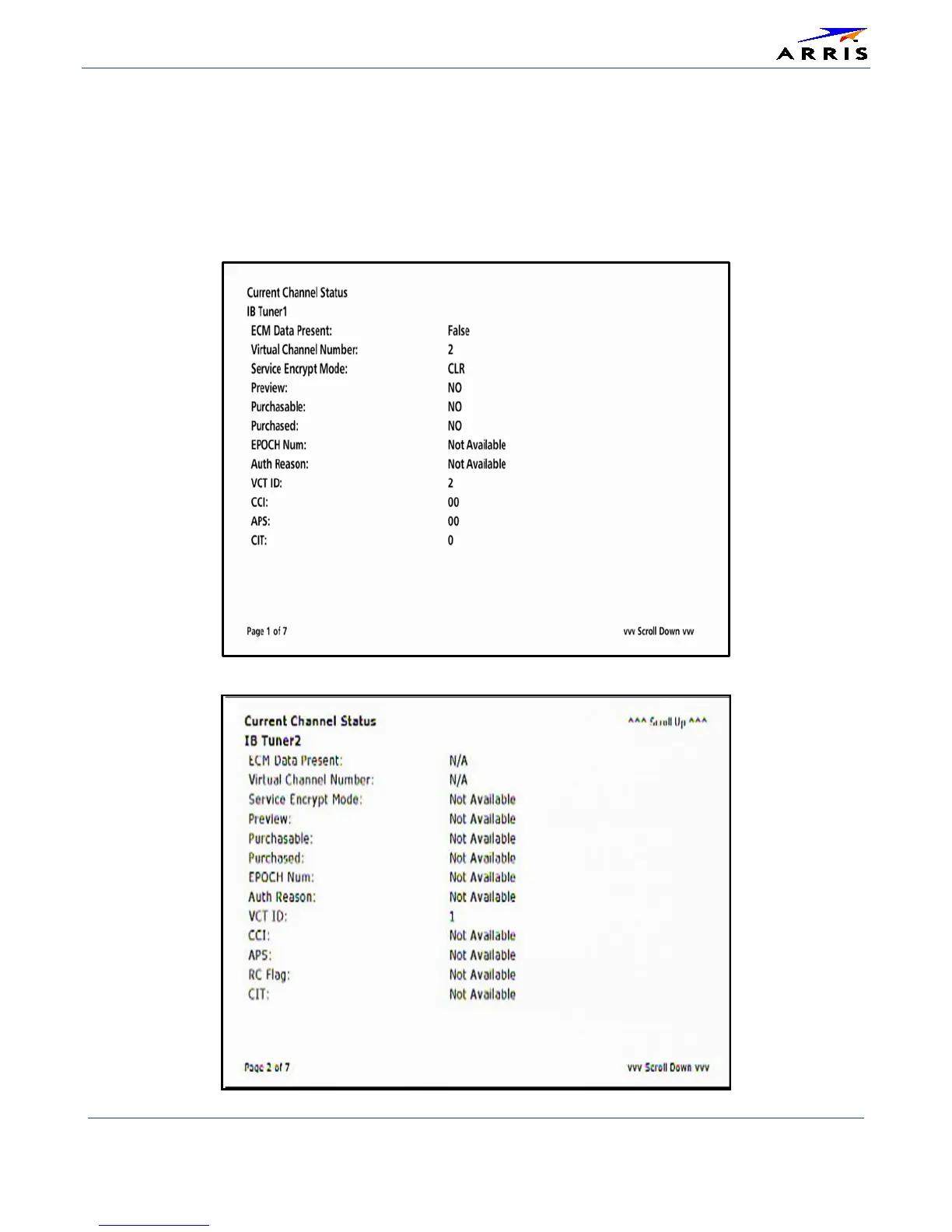

The following screens illustrate information for IB tuner 1, IB Tuner 2, and IP Stream:
