You will need for this page:
Finished Length
91 1/8” 231,5 cm
(QTY: 8)
Washers are to be used on painted parts only.
Washers are not necessary on unpainted parts
and there are not enough to use on every screw
and bolt.
8937
Side Floor
Frame
4
Bolts thru Bottom.
Bolts thru Top.

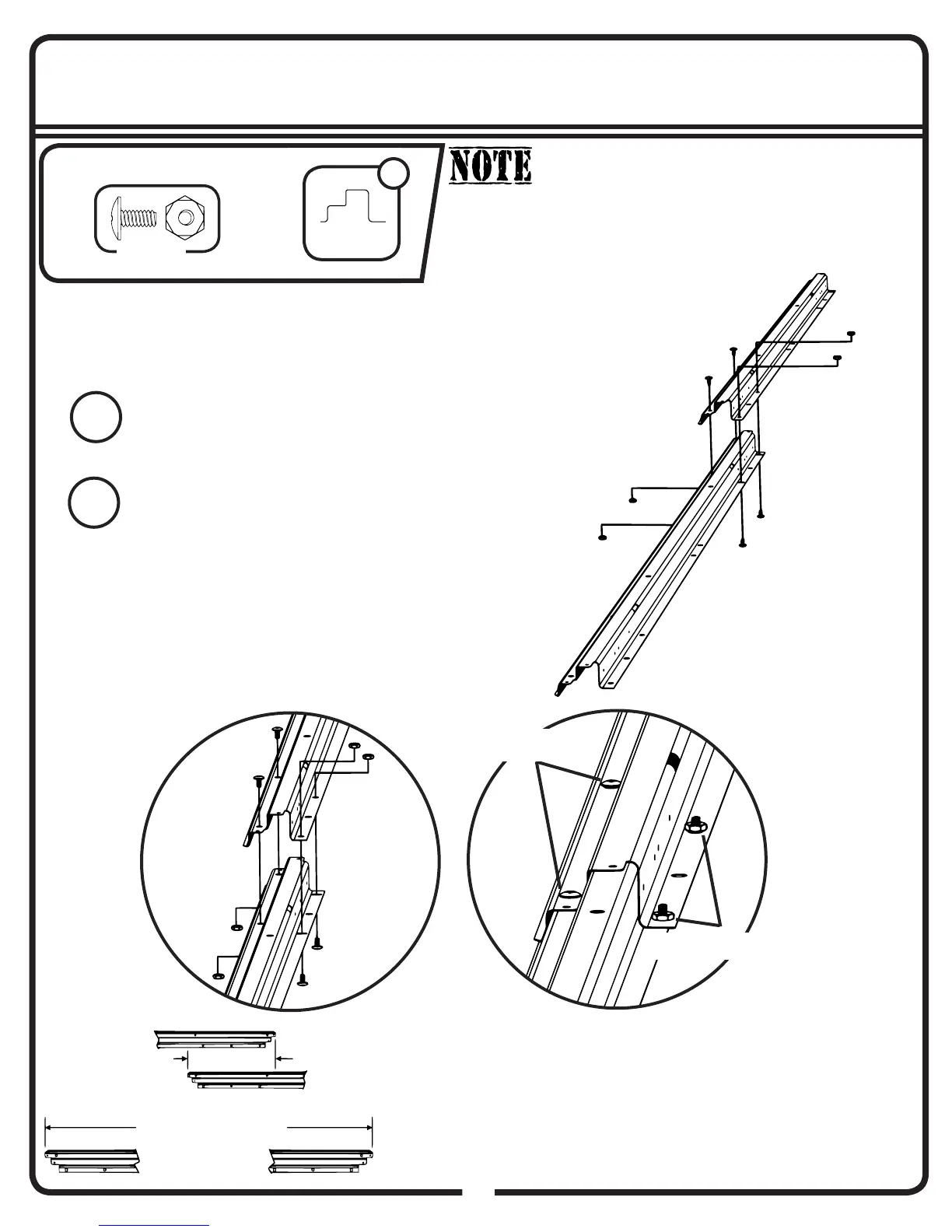

Step 1: Floor Frames
Overlap two (2) Side Floor Frames as shown
and secure with four (4) bolts. Two (2) bolts
must enter from bottom.
Assemble a second Side Floor Frame
Assembly by repeating part 1. Check that the
fi nished length of the Assemblies is 91 1/8”
(231,5 cm). Set aside for use in Step 5.
8937
8937
BUILD TWO (2) FRAMES
11 7/8” 30,2 cm
Overlap Length
13A
To Next Page
