29
Edge Trim (Plastic)
GABLES ARE STACKED TOGETHER
DURING SHIPPING AND MAY BE MIS-
TAKEN FOR ONE GABLE! SEPARATE
GABLES BEFORE CONTINUING.
Bracket
4
5971
Edge Trim MUST cover Gable edge.
Install Edge Trim to cover Gable Edge
BEFORE doing ANY work with Gables.
Failure to do so could result in injury.
(QTY: 8)
Leg of Roof Beam Bracket must face center of Gable as shown.
You will need for this page:

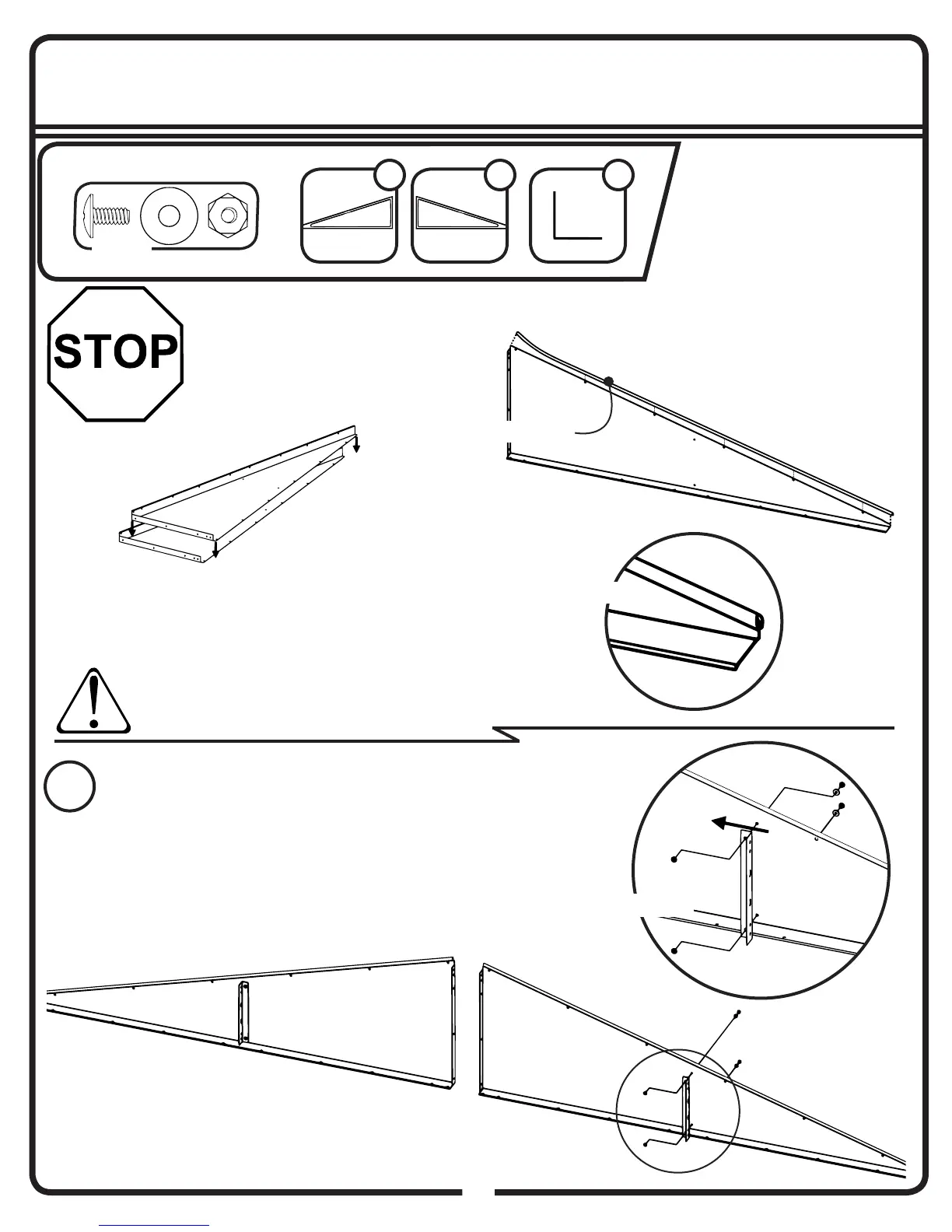

Step 11: Gables
Install Roof Beam Brackets on all Gables using
two (2) bolts and nuts per Bracket. Leg of Bracket
must face center of Gable as shown.
29BH
Right Gable
2
6000
Left Gable
2
6001
To Next Page
