32
(QTY: 12)
CUT
Tape BOTH Gable joints before installing Roof Beams.
You will need for this page:
Tape should wrap around gap between Gables.
Weather Stripping Tape
Top View of Gables

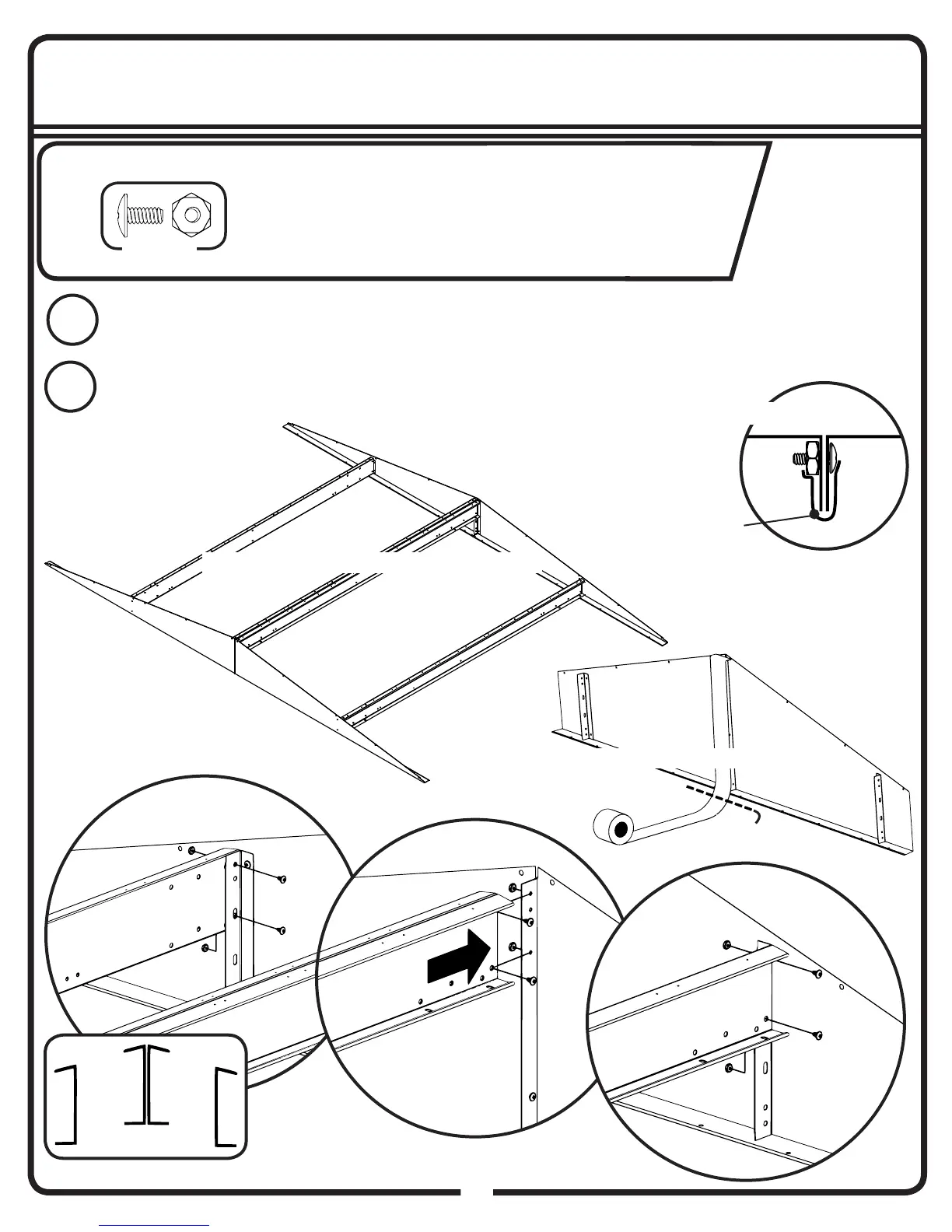

Step 12: Roof Framing
Beam End Views
Angled side of Beams must face up.
Seal the gap between the Gables using the weather stripping tape as shown. Do
this at both ends of the building before installing Roof Beams.
Position the Roof Beams as shown below and install using two (2) bolts and nuts
per side. Install the Main (center) Beam fi rst.
32BH
Assemblies from Step 3:
• Main Roof Beam Assembly (1)
• Single Roof Beam Assemblies (2)
To Next Page
