Side Wall Angle Assembly
Side Wall Angle Assembly
Rear Wall Angle Assembly
Door Track Assembly
Leave these holes open.
ATTACH FRAMES TO INSIDE OF WALL PANELS
Assemblies from Step 2 and Step 4:
• Rear Wall Angle Assembly (1)
• Side Wall Angle Assemblies (2)
• Door Track Assembly (1)
(QTY: 18)
Wall Angles must face
inside the building.
You will need for this page:
Door Slides should be in Door Track at this time.

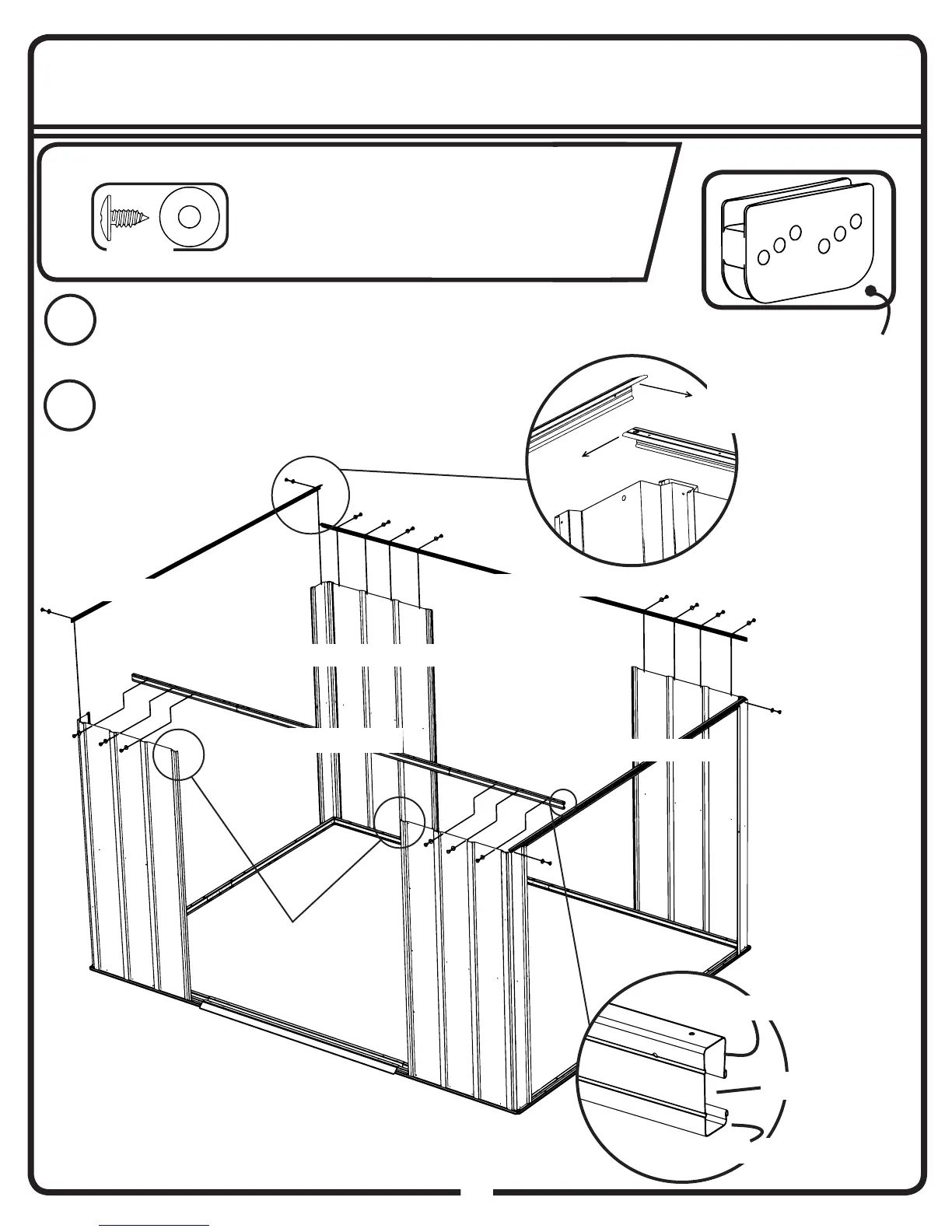

Step 7: Wall Framing
Use the number of screws shown. Leave the hole
closest to the Ramp open in each Front Panel as
shown above.
• Install one Side Wall Angle Assembly fi rst.
• Install the Rear Wall Angle Assembly second.
• Install the other Side Wall Angle Assembly third.
• Install the Door Track Assembly last.
Short Leg on Bottom.
Opening Faces In.
Long Leg on Top.
24A
To Next Page
