34
An Awl may be used to help
align holes that are only slightly
misaligned. Take care not to bend
or warp the metal, and always practice
proper tool safety.
2
1
3
4
5
7
6
(QTY: 20)
(QTY: 8)
Right End
2
8468
Left End
2
8469
Washer
Bolt
Nut
GABLE
You will need for this page:
LEAVE THESE HOLES OPEN
FASTEN TO NEXT PANEL
2
1
3
4
5
7
LEAVE THIS HOLE OPEN
6
LEAVE THIS HOLE OPEN

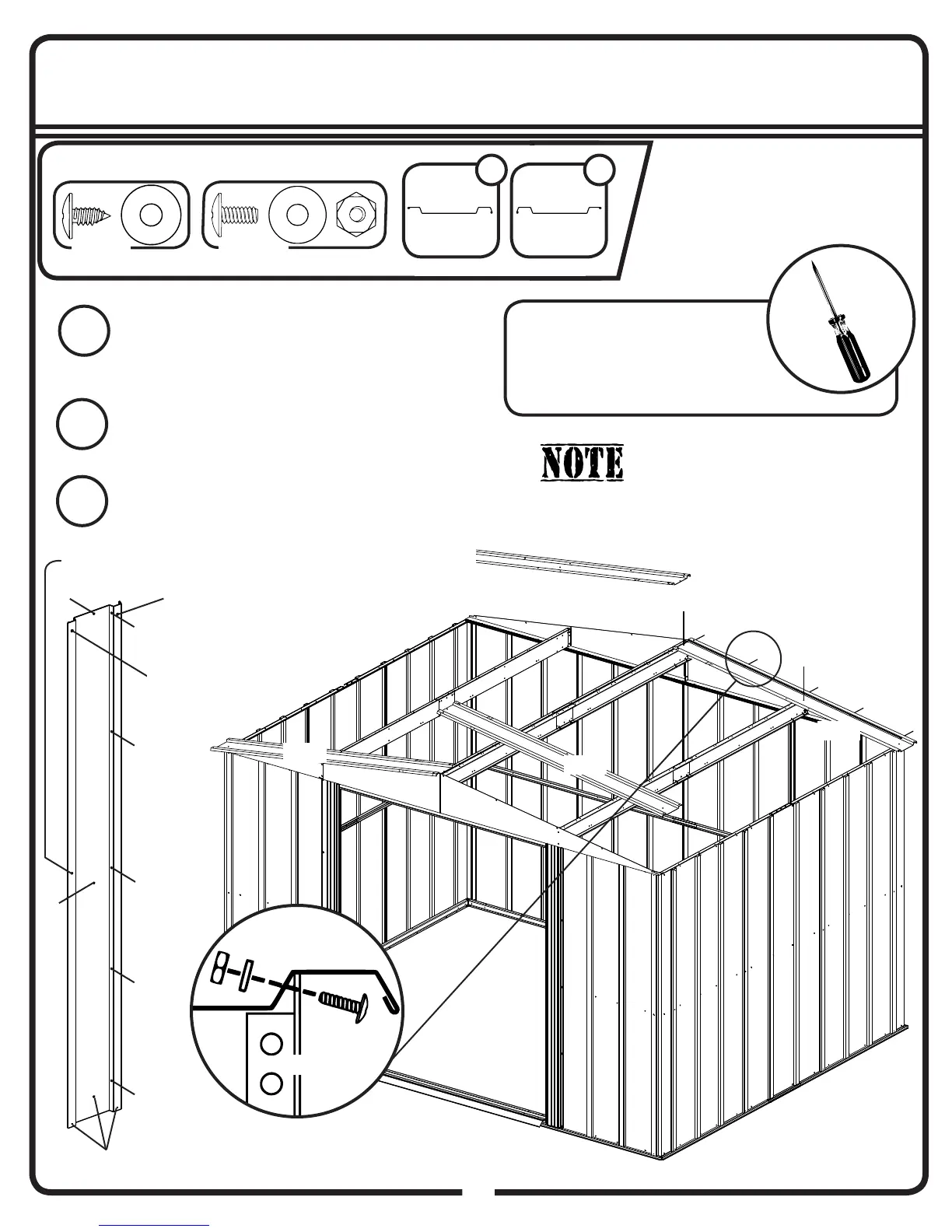

Step 13: Roof Corners
Secure the fi rst End Panel to the Main Roof
Beam by placing a screw in hole #1 (from the
diagram below). Carefully remove the Gable
Edge Trim once the Panel is in position.
Fasten Panel to Gable by placing bolts through
holes #2 - #6. Fasten the holes in order.
Work one corner at a time. Be sure
to fi nish a corner before moving on to
the next one.
Secure the Panel to the Lower Roof Beam by
placing a screw in hole #7. Repeat for other
three End Panels.
34BH
8468
8468
8469
8469
To Next Page
