Arrow NP10867 - Wall Frames

16
5986
5986
9917
9917
Finished Length
118 1/8” 300,0 cm
Slide parts together until fi ve (5) holes align.
Place bolt thru center hole only.
Slide parts together
until three (3) holes align.
5986
Rear Wall Angle
2
9917
Rear Wall
Channel
2
(QTY: 2)
You will need for this page:

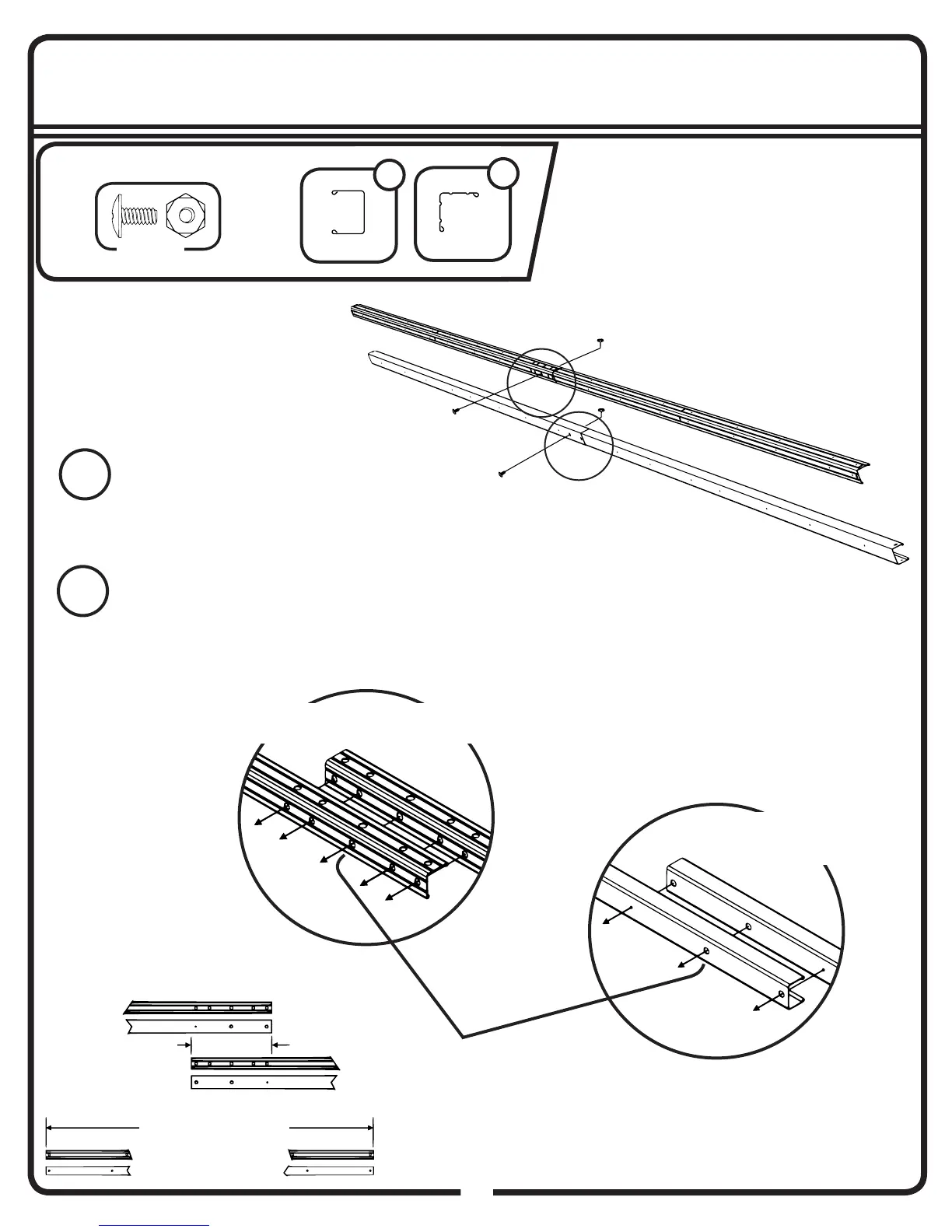

Step 2: Wall Frames
Overlap two (2) Rear Wall Channels so that
three (3) holes align as shown. Insert a bolt
and nut through the center hole. Check that the
fi nished length of the Assembly is 118 1/8” ( 300,0 cm)
set aside for use in Step 10.
1
2
Overlap two (2) Rear Wall Angles so that fi ve
(5) holes align as shown. Insert a bolt and nut
through the center hole. Check that the fi nished
length of the Assembly is 118 1/8” ( 300,0 cm) set
aside for use in Step 7.
6 1/8” 15,6 cm
Overlap Length
16A
5986
9917
