15
9367
8934
9367
Finished Length
119 3/8” 303,2 cm
CHECK THAT ALL ASSEMBLED PARTS ARE
THE CORRECT LENGTH BEFORE CONTINUING
FRONT
You will need for this page:
Step 1: Continued
Four (4) Screws per side.
FRONT
Drain holes must face outside the building.

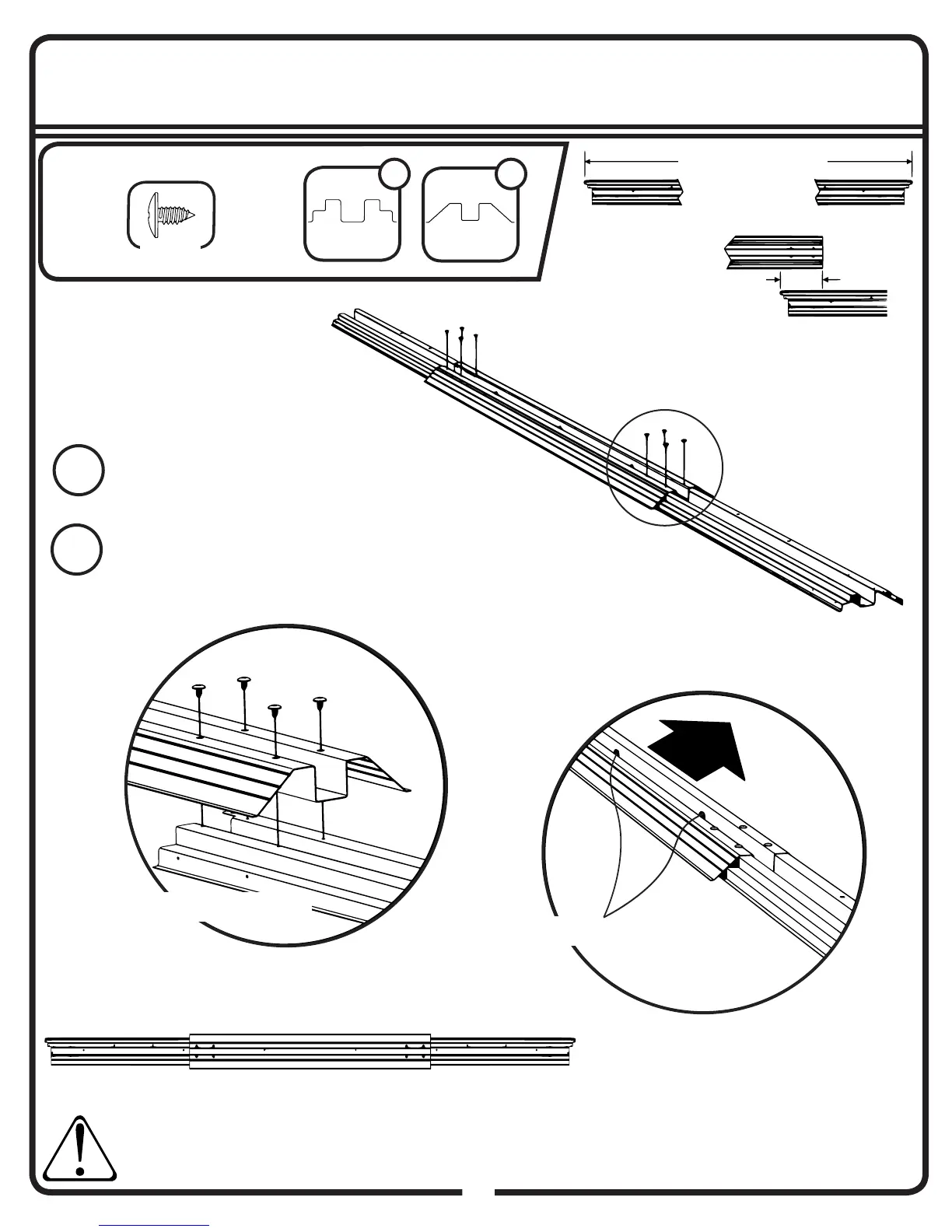

Overlap the Ramp and two (2) Front Floor
Frames so that four (4) holes align at each end
as shown. Insert four (4) screws in each end.
Confi rm that the drain holes are facing outside
the building. Check that the fi nished length of
the Assembly is 119 3/8” (303,2 cm). Set aside
for use in Step 5.
8934
Ramp
1
9367
Front Floor
Frame
2
7 3/8” 18,7 cm
Overlap Length
(QTY: 8)
15A
To Next Page
