19
Six (6) holes align.
Two (2) holes align.
Finished Length
91 7/8” 233,4 cm
CHECK THAT ALL ASSEMBLED PARTS ARE
THE CORRECT LENGTH BEFORE CONTINUING
You will need for this page:

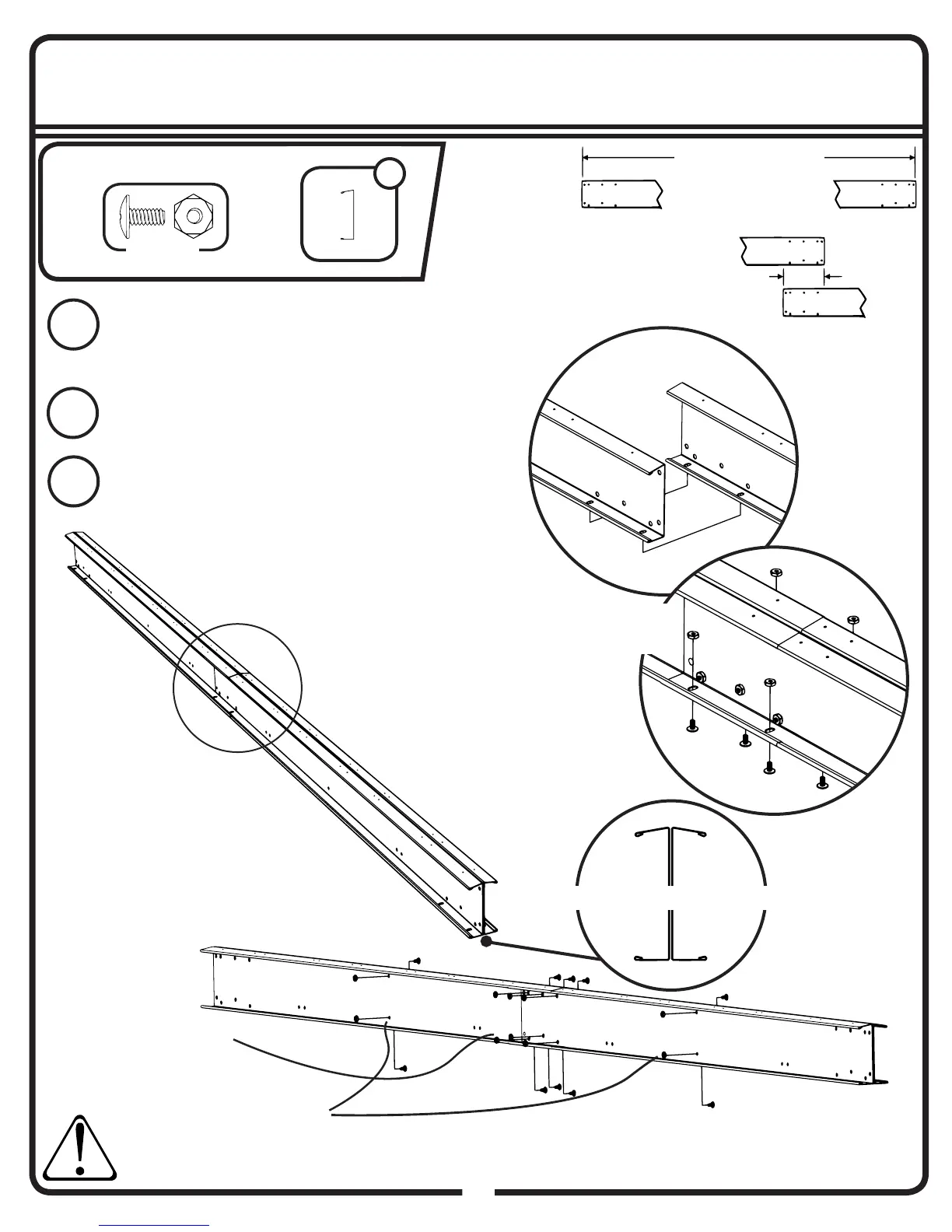

Step 3: Continued
Overlap two (2) Roof Beams so that bottom slots
align but DO NOT INSERT BOLTS. Next, overlap
two (2) more Roof Beams to form a second Roof
Beam Assembly. DO NOT INSERT BOLTS .
Insert four (4) bolts and nuts into slots from bottom.
Check that the fi nished length of the Assembly is
91 7/8” (233,4 cm). Set aside for use in Step 12.
Place both Roof Beam Assemblies back-to-
back to form a Double Beam. Insert ten (10)
bolts and nuts as shown below.
Place two (2) bolts thru slots
on each side of the Beam.
(QTY: 14)
Roof Beam
4
10470
End View of Double Beam
BUILD ONE (1) BEAM
10470
10470
10470
10470
6” 15,2 cm
Overlap Length
19A
To Next Page
