• Bolts under Ridge Cap pass thru
slots where the End Roof Panel is
overlapped by the Panel next to it
(labeled rib 2 below).
(QTY: 16)
Roof Panel
2
7483
(QTY: 8)
Continue to apply weather stripping.
Step 14: Continued

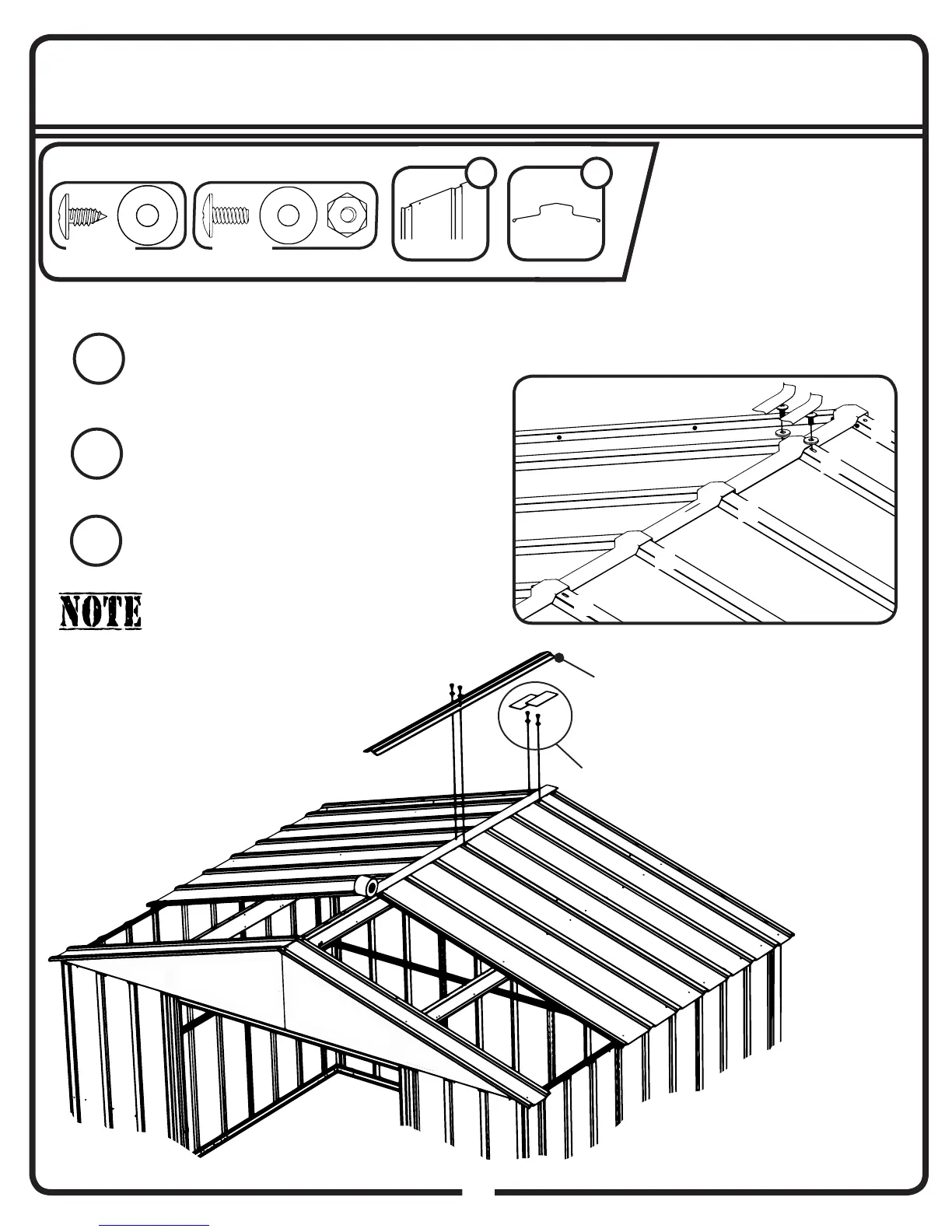

Attach End Panels to the Roof Panel next to it
using one (1) bolt and nut each. Place a strip of
tape over the bolt to seal.
Install Roof Panels #9 and #10.
Attach Long Ridge Cap with two (2) bolts and
nuts. DO NOT secure end of Ridge Caps until
Peak Caps are in place.
DO NOT secure end of Ridge Caps
until Peak Caps are in place.
Place strips of tape over bolts to seal.
You will need for this page:
Ridge Cap
1
8840
1
2
3
4
5
• Bolts thru Ridge Cap pass thru slots where the
Center Roof Panel overlaps the Panel next to it
(labeled rib 5 below).
DO NOT fully tighten Ridge Cap bolts until you
have both Ridge Cap bolts in place. This will ease
assembly. Bolts must be fully tightened before moving on
to the next page.
36BH
To Next Page
