Equipment Faults, Diagnosis and Reporting
38
4.4. Advance Use; Waveform
In addition to Power Spectral Density displays, Waveform chart is provided to check three

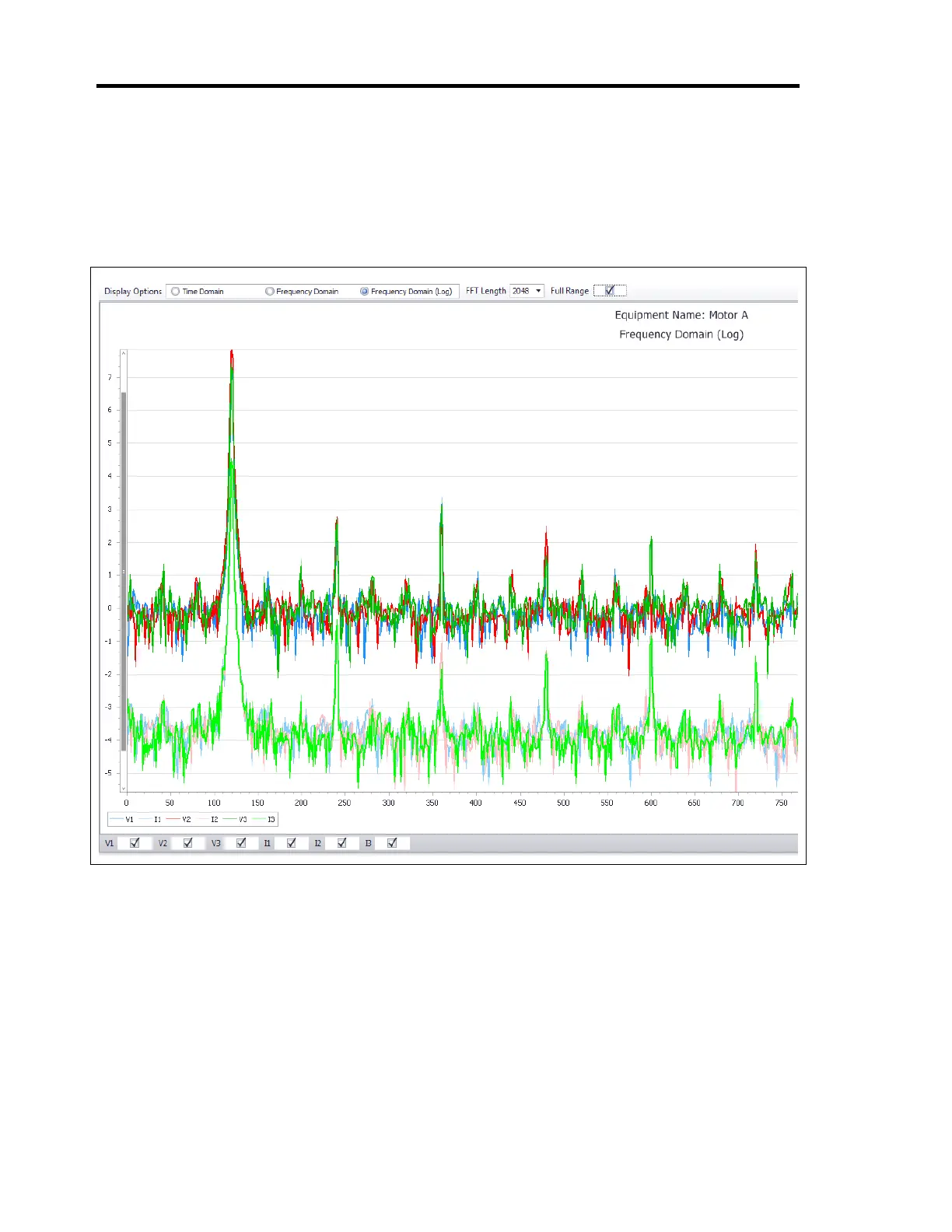

voltage and three current data together or separately. The figure below shows the
waveform data in logarithmic psd format. Raw voltage and current data or its psd form can
also be displayed.
