ARTEX PRODUCTS / ACR ELECTRONICS, INC
DESCRIPTION, OPERATION, INSTALLATION AND MAINTENANCE MANUAL
B406-4 (453-5004)
Page 48 of 70
25-62-03

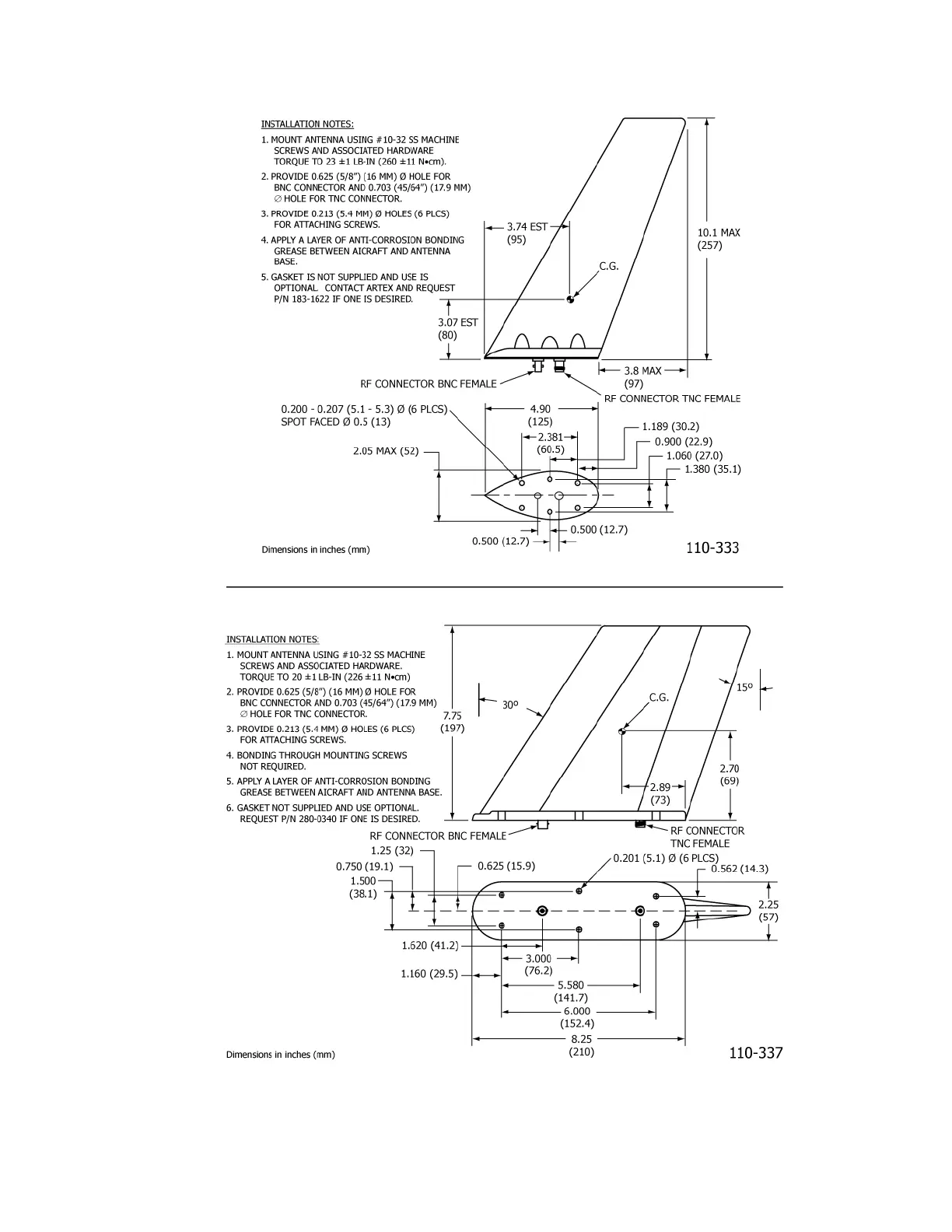

Figure 16 Blade Antennas 110-333 and 110-337 Outlines and Dimensions
