Aruba AP-85 - Pole Mounting the AP-85 (1.5-inch to 3.5-inch Diameter)

24 | AP-85 Series Installation Aruba AP-85 Outdoor Access Point Series | Installation Guide

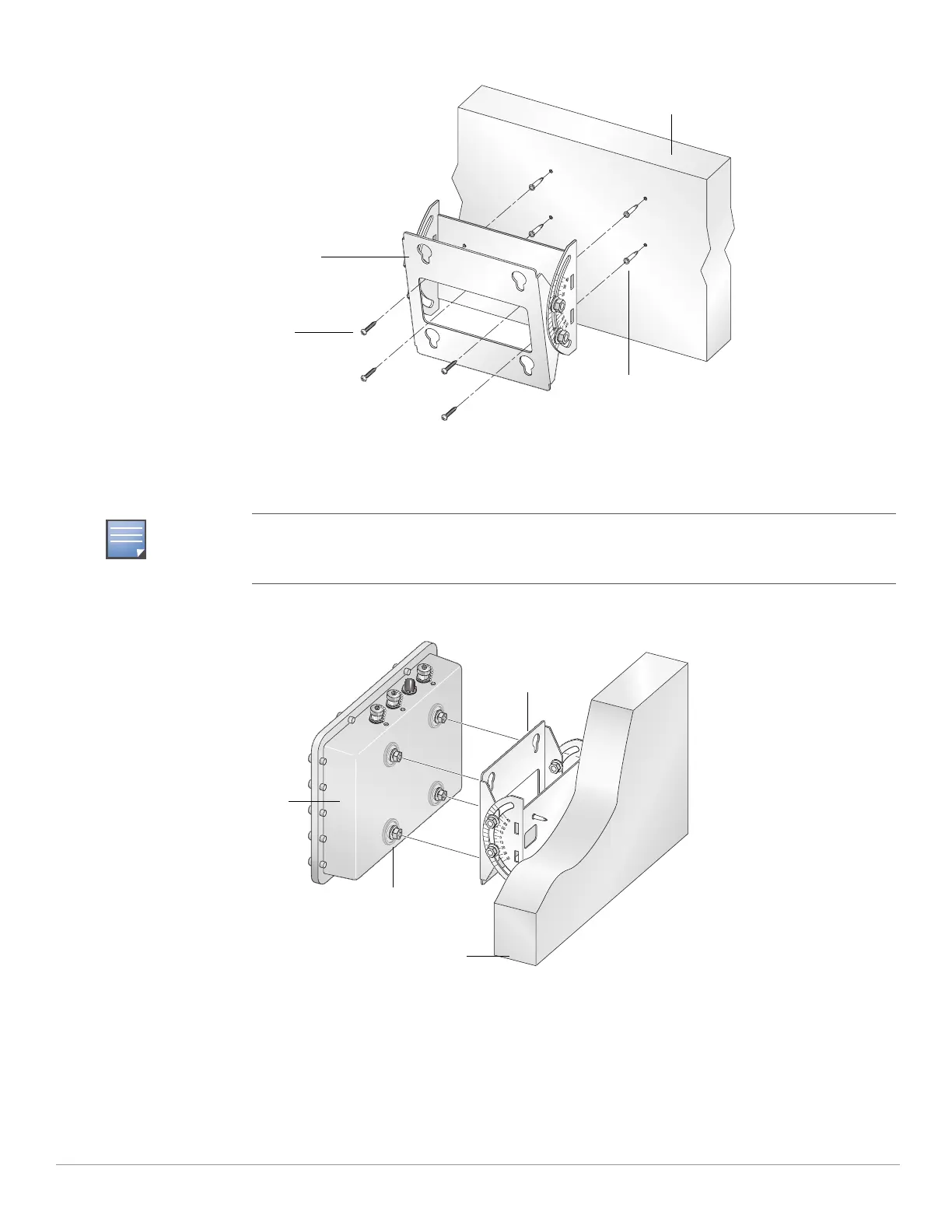

Figure 11 Attaching the Mounting Plate
2. Seat the AP-85 into the four keyholes on the mounting plate and tighten down the four mounting bolts (M8 bolts) to
secure the AP-85 in place (see Figure 12). The mounting plate should rest between the captive flat washer on each
mounting bolt and the rear of the AP-85.
Figure 12 Wall Mounting the AP-85
Pole Mounting the AP-85 (1.5-inch to 3.5-inch Diameter)
To attach an AP-85 to a pole with a diameter of 1.5 inches to 3.5 inches:
1. Assemble the pole mounting bracket:
a. Slide the long T-bolt through the opening in the mounting bracket (see Figure 13).
b. Attach the provided retaining clip to the T-bolt (see Figure 13).
c. Screw the provided nut onto the end of the T-bolt (see Figure 13).
NOTE
Figure 12 shows the AP-85 installed with the antenna jacks at the top of the unit. To install the AP-
85 with the antenna jacks at the side, rotate the unit 90 degrees before seating the unit on the
mounting plate.
Anchors (4x)
Mounting Plate
Screws (4x)
Wall
arun_0127A
Mounting Bolts
Mounting Plate
AP-85
Wall
