ASCO Series 300 Quick Connect Power Panel
381333-476 www.ascopower.com
3
Prior to Installation: Site Preparation
Prepare installation site according to local codes.
The ASCO Series 300 Quick Connect Power Panels are to be
set on an exterior pad
and secured to a building or secured
to a pad using 3/8“ fasteners
(See Figure 1).
The surface where the ASCO Series 300 Quick Connect
Power Panel is to be
secured must be capable of supporting
the weight of the cabinet as
well as the cable attached to it.
The following should be taken into consideration when
locating the
ASCO Series 300 Quick Connect Power Panel:
–
The ASCO Series 300 Quick Connect Power Panel is
designed for exterior
operation ONLY
–
Identify and meet local codes and local Authority
Having
Jurisdiction (AHJ)
–
To prevent carbon monoxide poisoning from improperly
ventilated
generator emissions, the Power Panel must be
mounted
outdoors only. The mounting location is to be
carefully selected to
allow convenient connection to a
generator, and located a suitable
distance away from any
building openings or HVAC inlets.
–
Proper clearance must be allowed in front of the ASCO
Series 300 Quick Connect Power Panel to allow for
opening of access doors and
attachment of externally
connected cables. This distance should be
no less than
six (6) feet from the face of the panel.
–
While lock protection is provided, access by unauthorized
personnel and vandals should be taken into consideration
when
locating this device.
S hi p m e n t : U n pa c k i ng and Inspection
Be careful in the use of sharp object when cutting
packaging
as damage to the outer enclosure
may result.
Perform a visual inspection to ensure the door and all hasps
are in
functioning condition and that the panel integrity is
intact
.

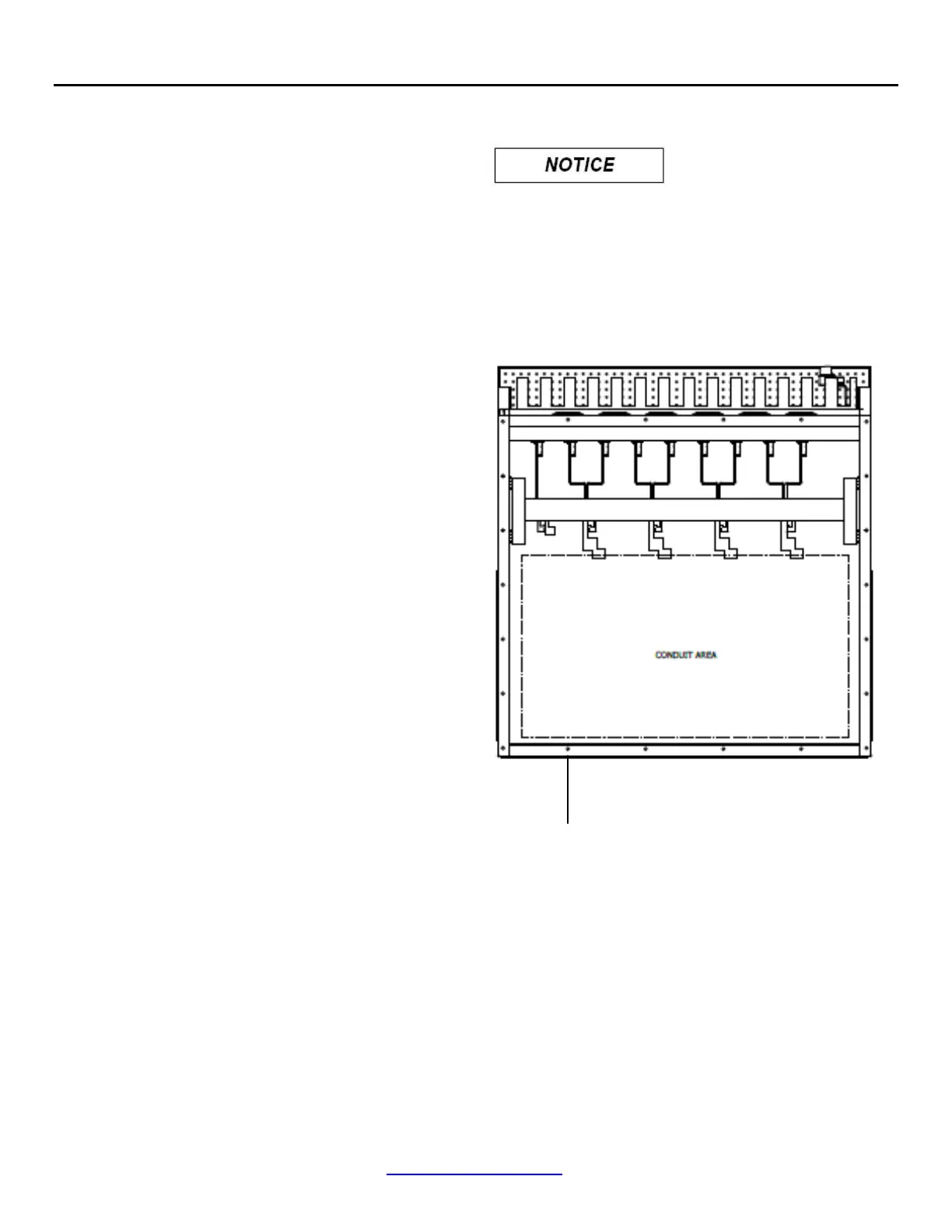

Figure 1
Bottom View
Secure with 3/8” fasteners
