Ascon Tecnologic - KX6 - ENGINEERING MANUAL - PAG. 5
4 TECHNICAL CHARACTERISTICS
Case: Plastic, self-extinguishing degree: V-0 according to UL 94;
Front protection: IP65 (when the optional panel gasket is
mounted) for indoor locations according to EN 60070-1;
Terminals protection: IP20 according to EN 60070-1;
Installation: Panel mounting;
Terminal block: 24 M3 screw terminals for cables of
0.25... 2.5 mm
2
(AWG22... AWG14) with connection diagram;
Dimensions: 48 x 96, depth 89,15 mm.
Panel cutout: 45(+0.6) x 89(+0.6) mm [1.78(+0.023) x 3.5(+0.023) in.]
Weight: 160 g max..
Power supply: 100... 240 VAC (-15... +10% of the nominal
value);
Power consumption: 5 VA max.;
Insulation voltage: 3000 V rms according to EN 61010-1;
Display updating time: 500 ms;
Sampling time: 130 ms;
Resolution: 30000 counts;
Total Accuracy: ±0.5% F.S.V. ±1 digit @ 25°C of room
temperature;
Temperature drift: It is part of the global accuracy;
Operating temperature: 0... 50°C (32... 122°F);
Storage temperature: -30... +70°C (-22... +158°F);
Humidity: 20... 85% RH, not condensing.
Electromagnetic compatibility and safety requirements
Compliance:
• EMC Directive (EN 61326-1),
• Safety Directive (EN 61010-1);
Installation category: II;
Pollution category: 2.

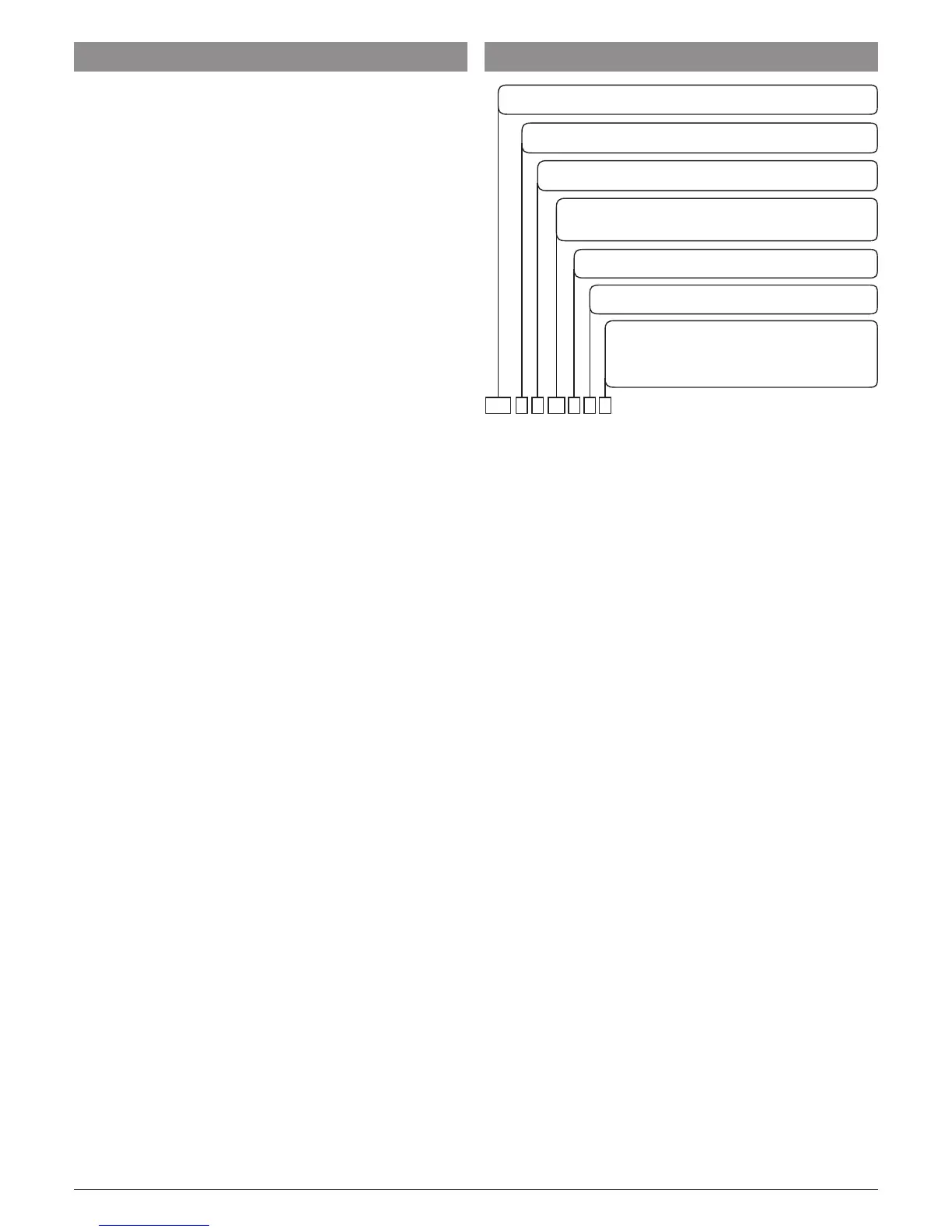

5 HOW TO ORDER
Power supply
H = 100... 240 VAC
Analogue input + digital input DI1 (standard)
B = J, K, R, S, T, mA, mV (*)
Output 3
R = Relay SPST NO 2 A (resistive load)
Output 4
R = Relay SPST NO 2 A (resistive load)
Options (the TTL Modbus port is always present)
- = Not available
C =
Potentiometer input + Digital Input 2 + RS 485 Modbus
P = Potentiometer input + Digital Input 2
S = RS 485 Modbus
Model
KX6 - = Valve Controller
Output 1 + Output 2
I- = Output 1: 0/4... 20 mA, 0/2... 10 V; Output 2: Not available
MM = Output 1 + Output 2: Relays for servomotor SPST NO 2 A
KX6- HB RR
* It is possible to obtain a 0... 10 V or 0... 5 V input,
ordering the following part no., respectively:
• AP ADPINMV-KX-V10 (for 0... 10 V);
• AD ADPINMV-KX-V5 (for 0... 5 V).
