Ascon Tecnologic - KX6 - ENGINEERING MANUAL - PAG. 9
[14] o2F - Output 2 function
Available: When the out2 is a relay output (hardware):
Range: nonE Output not used;
H.rEG Heating output (reverse);
c.rEG Cooling output (direct).
m
When using the servomotor control, both Out1 and
Out2 are to be selected as Heating or Cooling
(o2F = o3F = HrEG or o2F = o3F = crEG);
Parameter [39] cont must be set as 3pt.
[15] o3.AL - Alarms linked up with Out 3
Available: Always.
Range: 0... 31 with the following rule:
+1 Alarm 1;
+2 Alarm 2;
+4 Loop break alarm;
+8 Sensor break (burn out);
+16 Potentiometer break alarm.
[16] o3Ac - Out 3 action
Available: Always.
Range: dir Direct action;
rEU Reverse action;
dir.r Direct action with reverse LED indication;
rEU.r Reverse action with reverse LED indication.
Notes: 1. Direct action: the output repeats the status of the
driven element.
Example: the output is an alarm output with direct
action. When the alarm switches to ON, the relay
is energized.
2. Reverse action: the output status is the opposite
of the status of the driven element.
Example: the output is an alarm output with
reverse action. When the alarm is OFF, the
relay is energized. This setting is usually named
“fail-safe” and it is generally used in dangerous
process in order to generate an alarm also when
the instrument power supply goes OFF or the
internal watchdog starts.
[17] o4.AL - Alarms linked up with Out 4
Available: Always.
Range: 0... 31 with the following rule:
+1 Alarm 1;
+2 Alarm 2;
+4 Loop break alarm;
+8 Sensor break (burn out);
+16 Potentiometer break alarm.
[18] o4Ac - Out 4 action
Available: Always.
Range: dir Direct action;
rEU Reverse action;
dir.r Direct action with reverse LED indication;
rEU.r Reverse action with reverse LED indication.
]AL1 Group - Alarm 1 parameters
[19] AL1t - Alarm 1 type
Available: Always.
Range: • When at least one output is programmed as con-
trol output:
nonE Alarm not used;
LoAb Absolute low alarm;
HiAb Absolute high alarm;
LHAo Absolute band alarm with alarm indication
out of the band;
LHAi Absolute band alarm with alarm indication
inside the band;
SE.br Sensor break;
LodE Deviation low alarm (relative);
HidE Deviation high alarm (relative);
LHdo Relative band alarm with alarm indication
out of the band;
LHdi Relative band alarm with alarm indication
inside the band.
• When no output is programmed as control output:
nonE Alarm not used;
LoAb Absolute low alarm;
HiAb Absolute high alarm;
LHAo Absolute band alarm with alarm indication
out of the band;
LHAi Absolute band alarm with alarm indication
inside the band;
SE.br Sensor break.
Notes: 1. The relative and deviation alarms are “relative” to
the operative set point value.

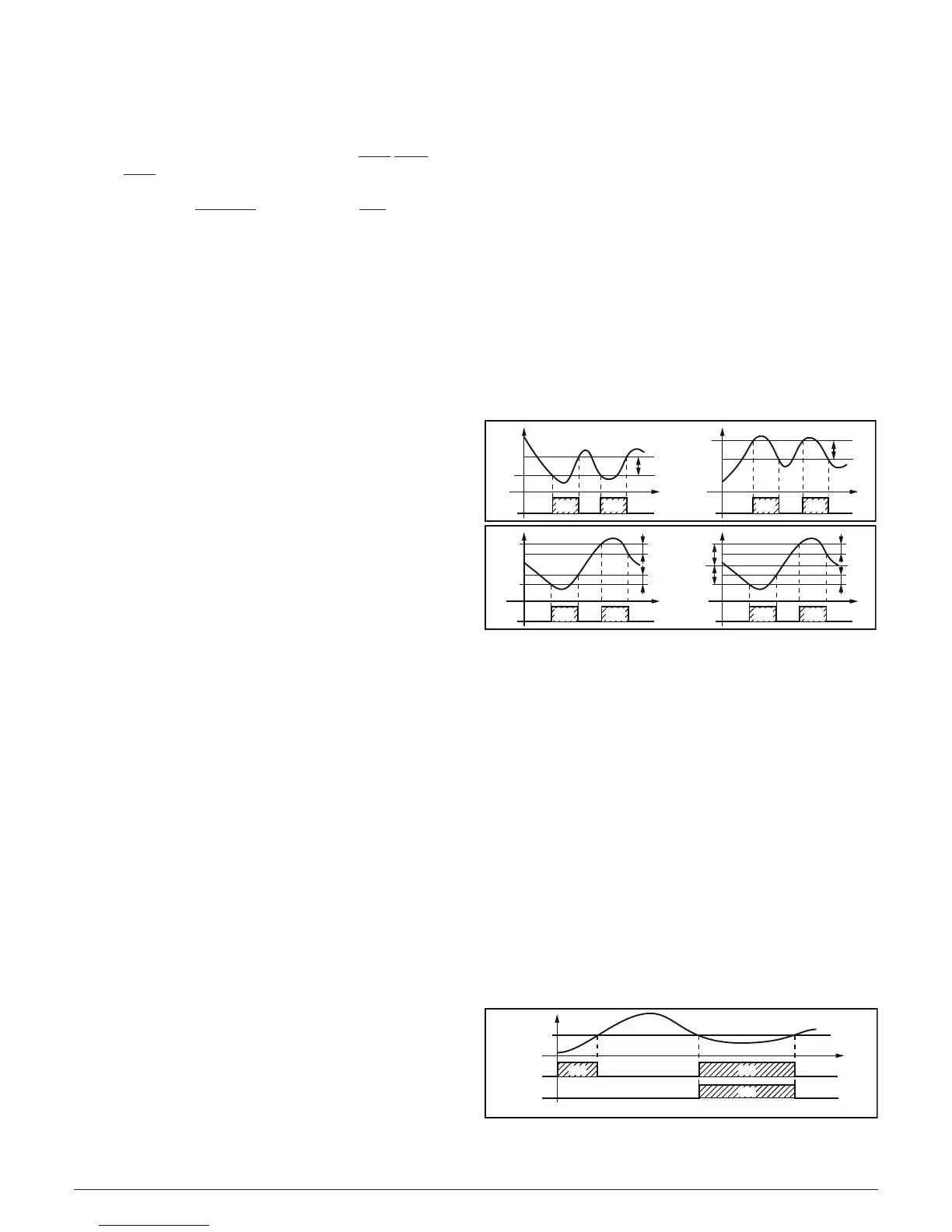

LoAb
OUT
AL1
AL1
PV
HAL1
time
HiAb
off
off
off
OUT
AL1
AL1
PV
HAL1
time
off
off
off
ON ON ON ON
LHAo
PV
AL1H
HAL1
time
offoffoff
LHdo
OUT
AL1
AL1L
HAL1
PV
AL1H
SP
HAL1
time
OUT
AL1
-AL1L
HAL1
offoffoffON ON ON ON
2. The (SE.br) sensor break alarm will be ON when
the display shows ---- indication.
[20] Ab1 - Alarm 1 function
Available: When [19] AL1t is different from nonE.
Range: 0... 15 with the following rule:
+1 Not active at power up;
+2 Latched alarm (manual reset);
+4 Acknowledgeable alarm;
+8 Relative alarm not active at set point change.
Example: Setting Ab1 equal to 5 (1+4) the alarm 1 will be
“Not active at power up” and “Acknowledgeable”.
Notes: 1. The “Not active at power up” selection allows to
inhibit the alarm function at instrument power up
or when the instrument detects a transfer from:
• Manual mode (oPLo) to Auto mode;
• Stand-by mode to Auto mode.
The alarm will be automatically enabled when the
measured value reaches, for the first time, the
alarm threshold ±hysteresis (in other words, when
the initial alarm condition disappears).
PWR ON
AL1
PV
time
offoff
Ab1 = +1
Ab1 = +0
offoff
ON ON
ON
