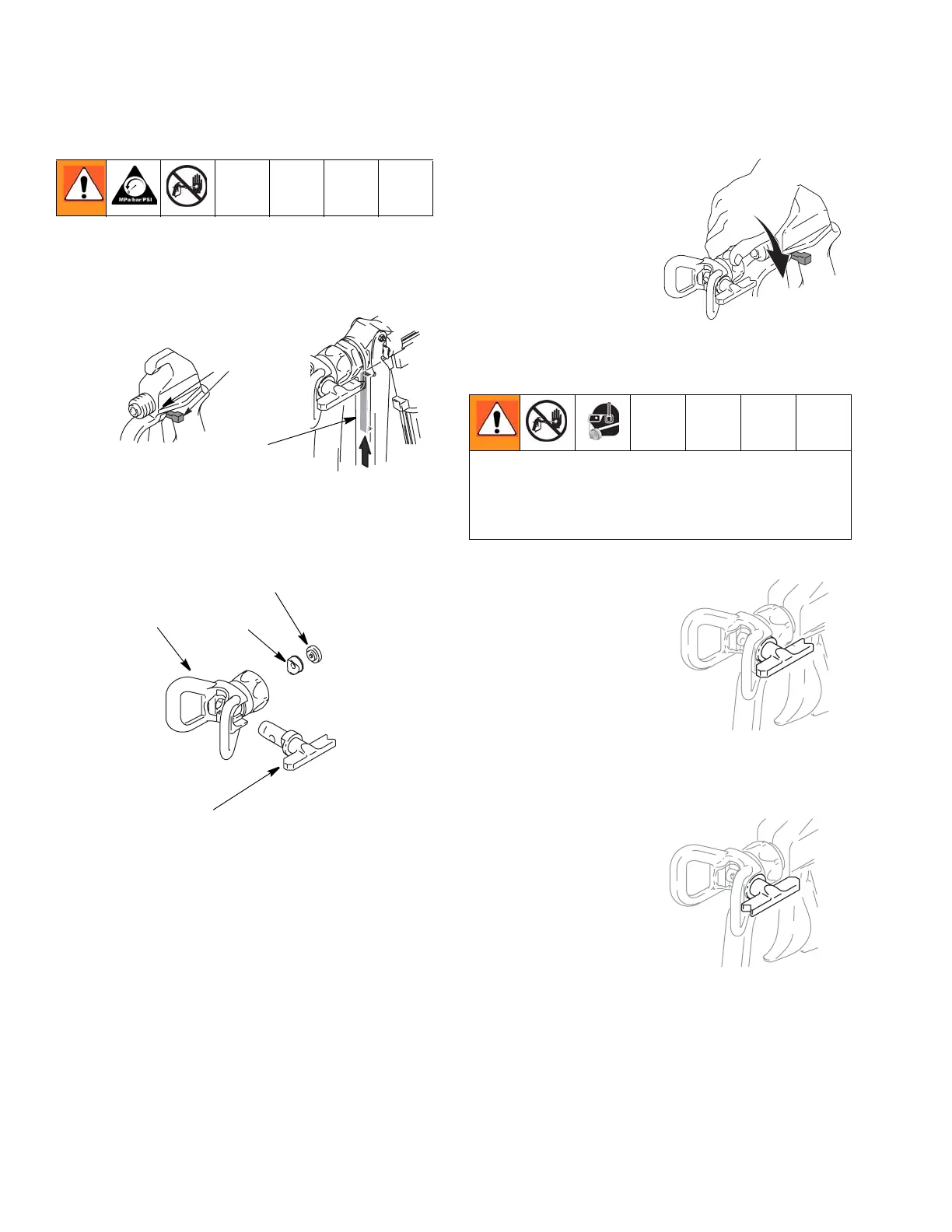

Installing Tip and Base
12 311139B
Installing Tip and Base
1. Engage trigger lock.
2. Verify tip and guard parts are assembled in order
shown.
3. Screw tip and guard
assembly on gun.
Tighten retaining nut.
Unclogging Spray Tip
1. To UNCLOG tip
obstruction, point
arrow-shaped handle
backward to UNCLOG
position.
2. Aim gun at piece of
scrap or cardboard.
3. Pull trigger to clear
clog.
Point the arrow-shaped
handle on the spray tip
attachment forward to
SPRAY and backward to
UNCLOG obstructions.
200 Series
300/400 Series
Lock
Lock
Tip
Guard
Seat
Gasket
To avoid fluid splashback:
• Never pull gun trigger when arrow-shaped han-
dle is between SPRAY and UNCLOG positions.
• Tip must be pushed all the way into guard.
WLD
TIA
