Setup
311139B 9
Setup

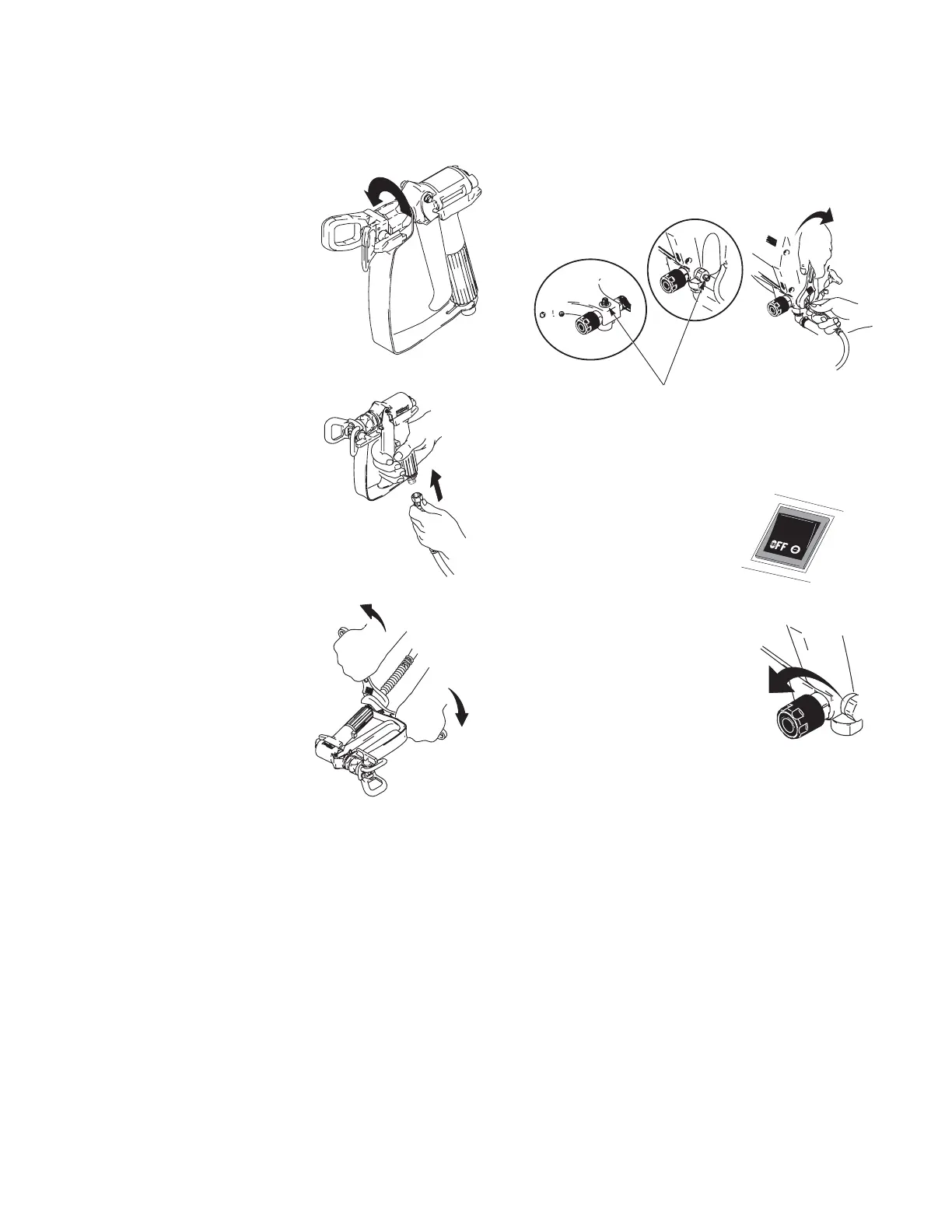

1. Unscrew tip and guard
assembly from gun.
2. Uncoil hose and connect
one end to gun.
3. Tighten securely.
4. Connect other end of hose to sprayer.
5. Turn OFF power switch.
6. Turn Pressure Control
Knob all the way left
(counter-clockwise) to min-
imum pressure.
TI
A
Need
6766
Need 6767
If hose is already connected, make sure connec-
tions are tight.
%30MODEL
CONNECTHOSEHERE
MODELS
TIA
WLD
WLD
