IN100 Mortise Lock
Fig. 13
AA Batteries (6)
13

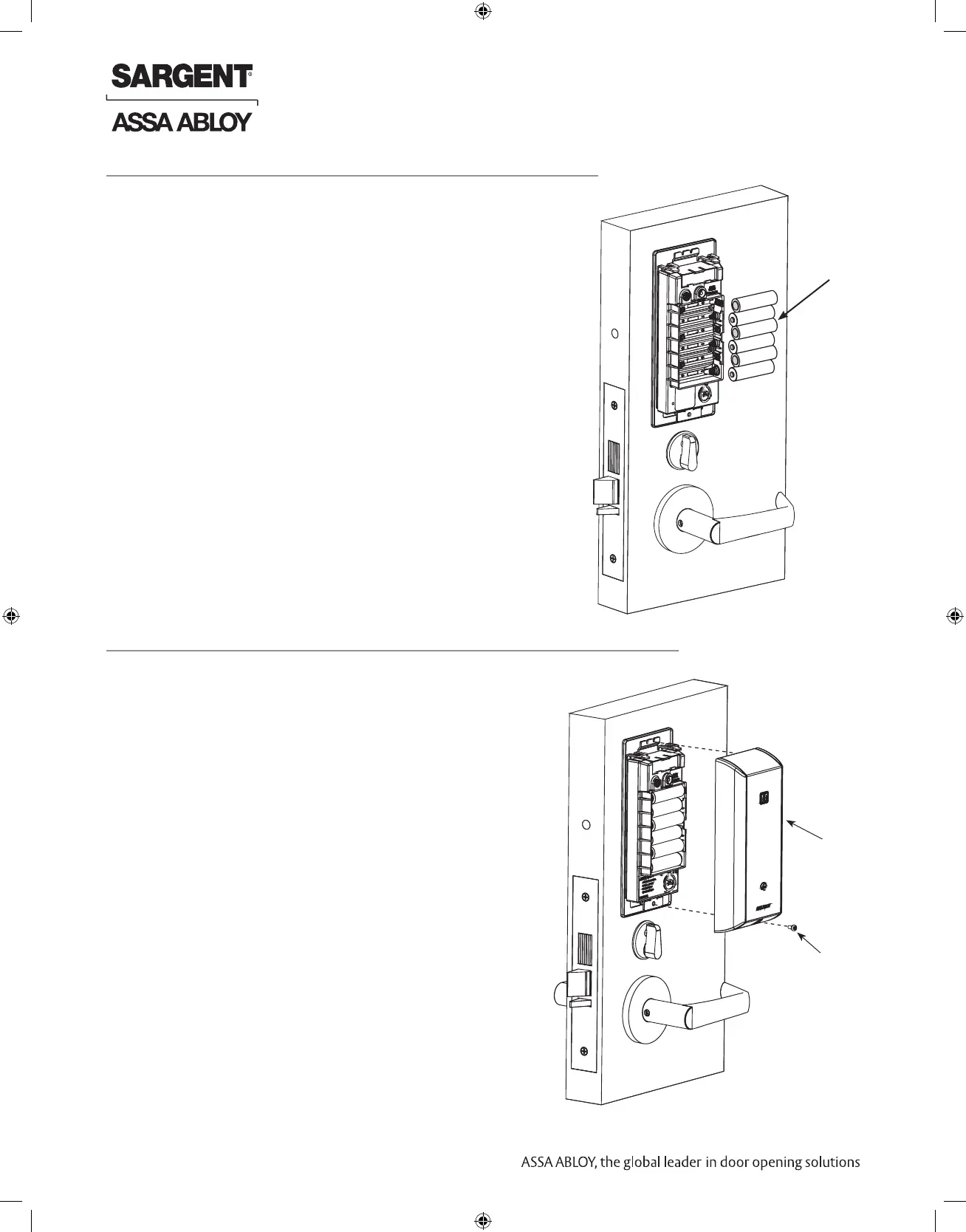

Battery Installation
1. Place (6) “AA” alkaline batteries in the compartment, being
careful to align polarity properly (Fig. 13).
2. After batteries are installed, there is a slight delay; then red
and green flash, audible “beep” and lock motor will cycle.
*See Section 8 - LED Indications for more information
14
Inside Cover Installation
1. Assemble cover by hooking top edge on inside
mounting plate.
2. Carefully press bottom of cover toward door
without pinching or damaging wires.
3. Secure cover utilizing security allen wrench.
Fig. 14
Inside
Cover
Security
Allen Screw
Inside of Door
To Next Page
