IN100 Mortise Lock
1)
Lock LED indications
The lock has three LEDs. They support an optical scheme of red, yellow and green.
The indication scheme is described by the figures below:

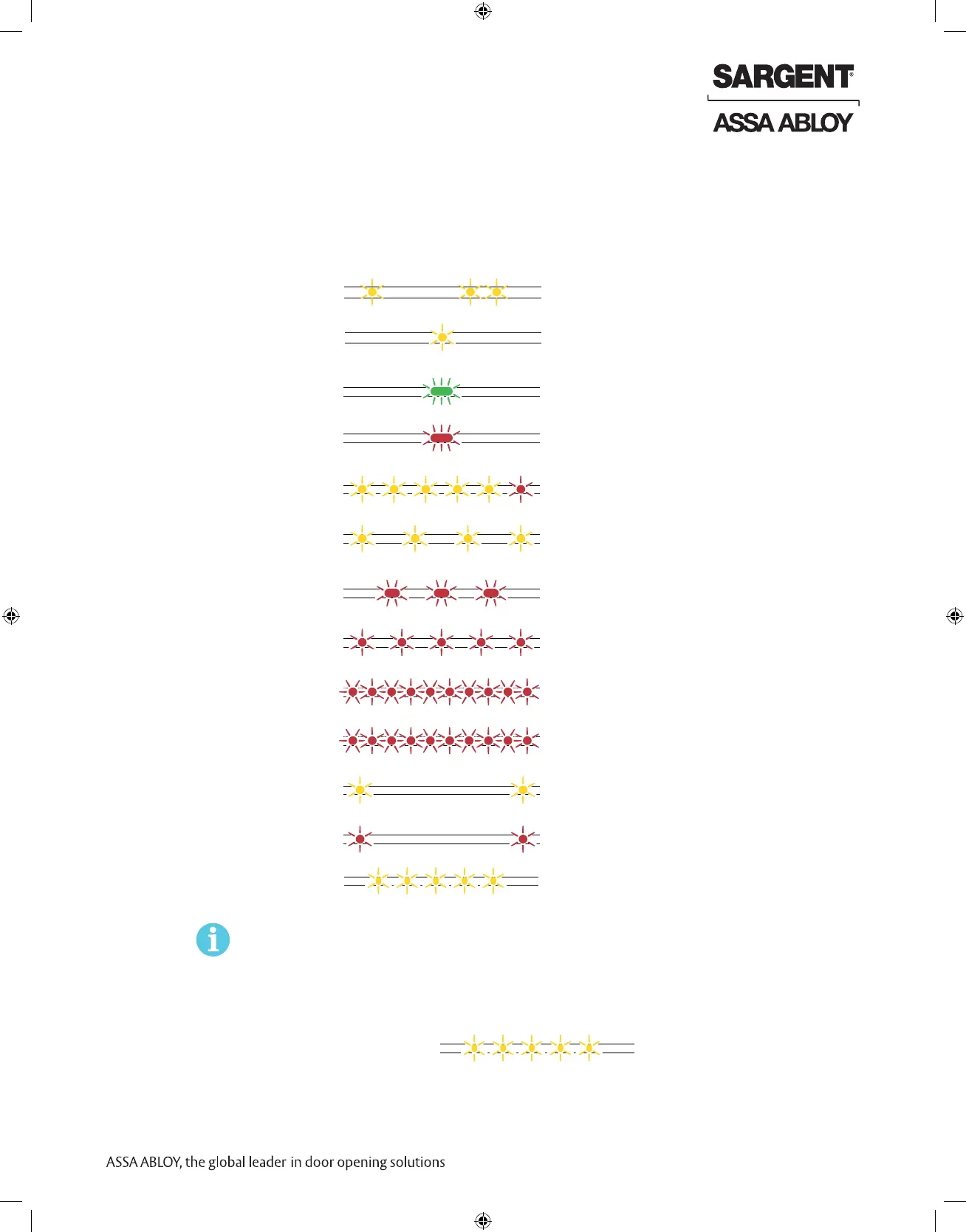

Figure 4. Lock normal operation LED
indication
One yellow flash after card, two
flashes before PIN (.125 second)
Card + PIN access
(configurable)
Access granted,
One green flash
(1 sec.)
EAC offline or online
Access denied,
One red flash
(1 sec.)
EAC online
Force closed in remote Five yellow flashes and
open/office mode one red flash (.25 second)
Busy blink, com hub
busy with other locks
Continuous yellow flashes
(.25 seconds every second)
Access denied,
Three red flashes
(.5 second each)
EAC offline
Lock mechanism is Continuous red flashes
blocked when closing (.125 seconds every 1 sec.)
Error in lock, Ten red flashes (.125 sec. each)
maintenance required
(Repeated every 10 sec. if lock can’t close)
Ten red flashes (.125 sec. each)
repeated every 10 sec.
Tamper
Time to replace Continuous yellow flashes
(.25 seconds every 5 sec.)
the battery
Battery reached end
of life, lock disabled
Continuous red flashes (.25
seconds every 5 sec.)
1) When the lock mechanism is blocked (lock jammed) the lever must be turned to
release the lock mechanism.
Some special LED indication schemes are used during lock maintenance actions:
Figure 5. Lock hub normal
operation LED indication
Enter configuration Five yellow flashes
(.125 second each)
mode
One yellow flash (.25 second)
Card access
(configurable)
Enter PIN
EAC response
time
V3 USB cable detection
action occurred
Five yellow flashes
(.25 second each)
To Next Page
