1-800-810-WIRE • www.sargentlock.com • A8190B 7
Copyright © 2016, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
IN100 Mortise Lock

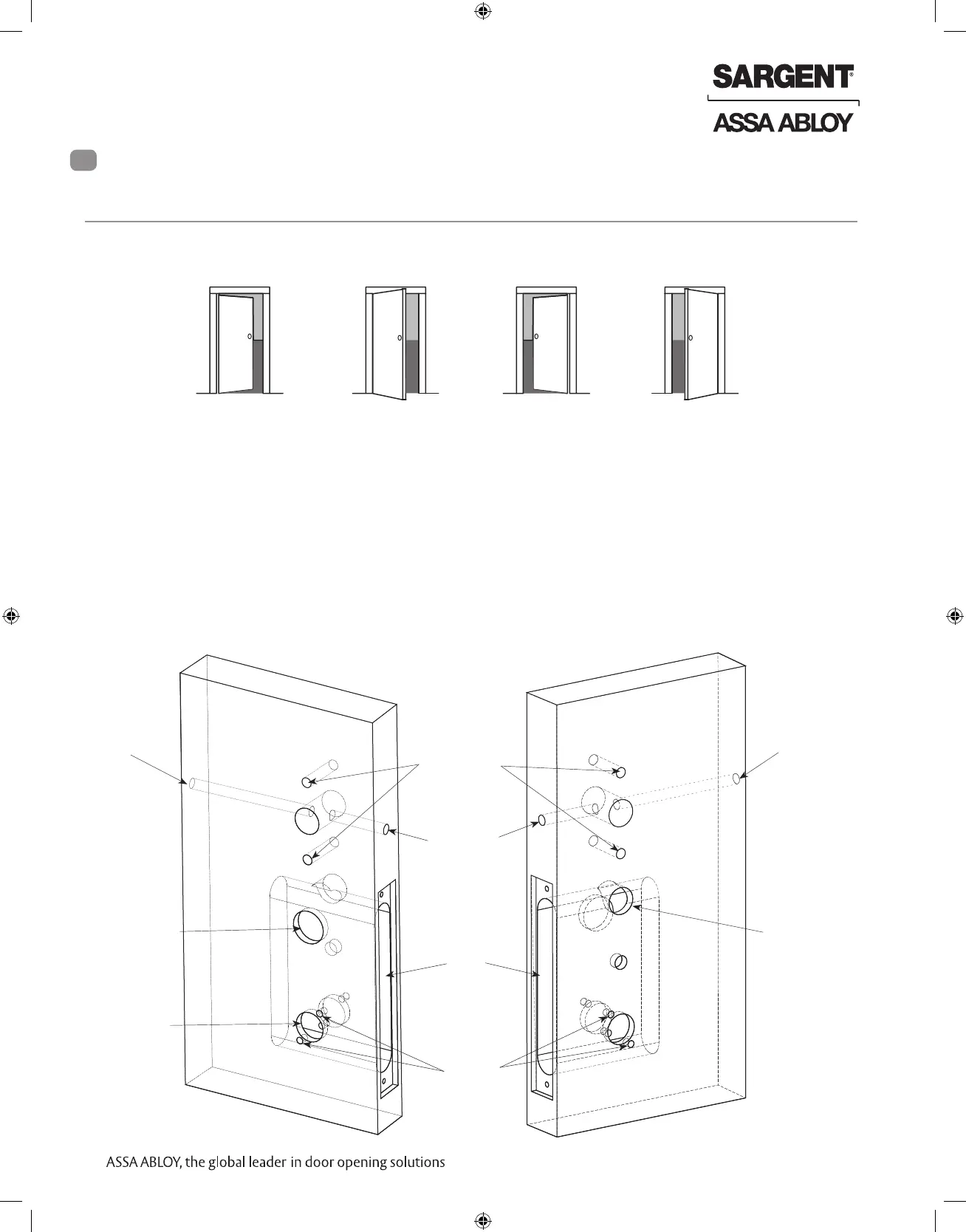

A. Verify Hand and Bevel of Door
Stand on outside of locked door when determining door hand.
Lock Installation
LH
Left Hand
Hinges Left
Open Inward
LHRB
Left Hand
Reverse Bevel
Hinges Left
Open Outward
RH
Right Hand
Hinges Right
Open Inward
RHRB
Right Hand
Reverse Bevel
Hinges Right
Open Outward
Fig. 1A
1 Prepare Door
6
B. Door Preparation
Prior to installation, all holes must be free of burrs, debris and sharp edges.
Prepare door according to appropriate template (see website www.intelligentopenings.com).
• Field Template: A8150 (ships with product)
• Door Manufacturer’s Template: 4713
Outside Cylinder Hole
(only with cylinder
installation)
Outside of Door
Cable Hole
Lever Handle
Hole
Through-bolt
Hole
Mortised
Pocket
Fig. 1B
External DPS
Hole
Lever Post
Holes
Wood Door
shown
Raceway for Power
(Optional)
Raceway for Power
(Optional)
Inside of Door
To Next Page
