IN100 Mortise Lock

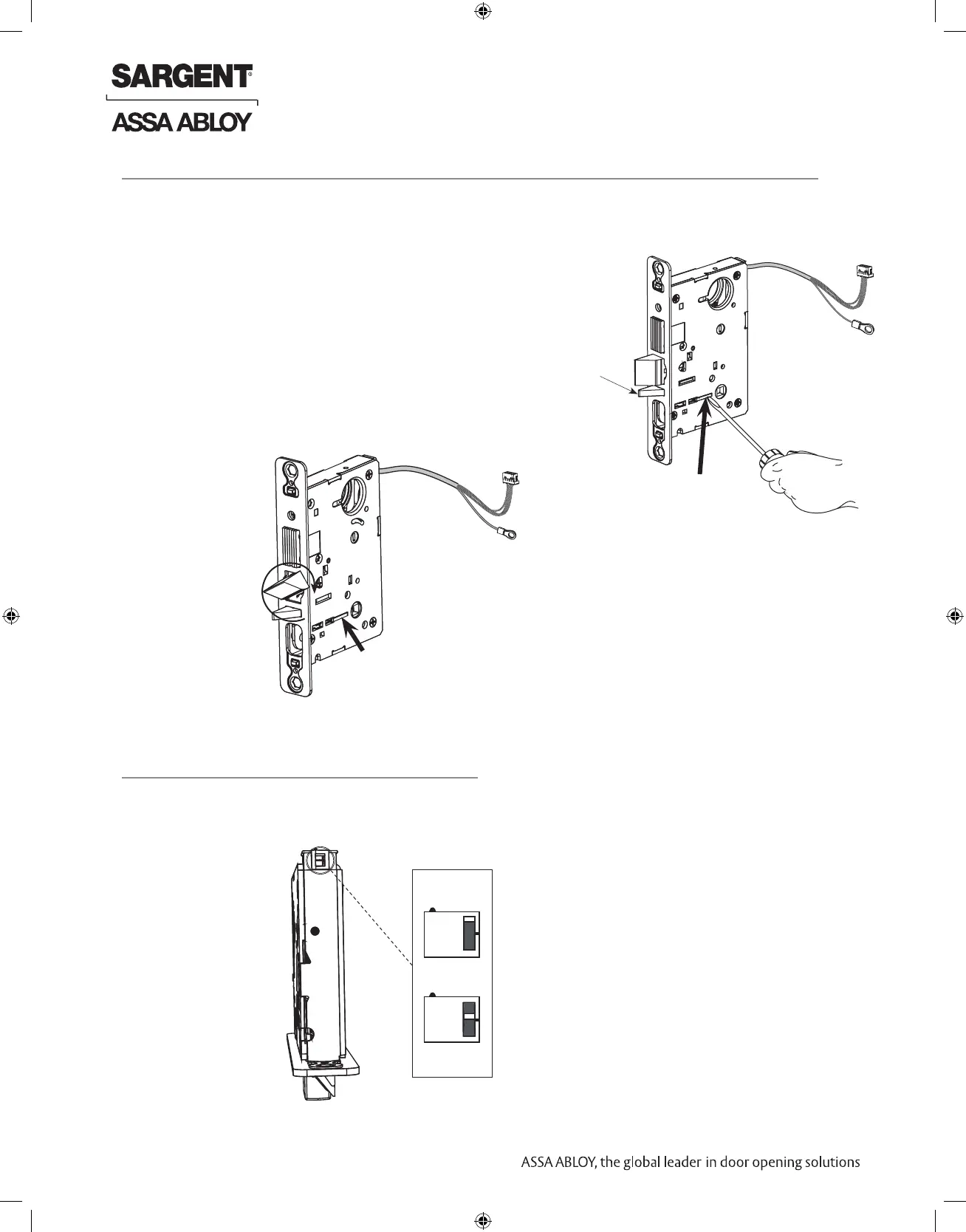

2 How to Change Hand of Lock body
1. Position lock body so the red surface of the locking piece is visible.
2. Insert blade type screwdriver into locking piece slot to rotate
locking piece.
3. Push locking piece toward the back of the lock
body and rotate the locking piece 180°.
Note: Red indicates locked (outside) side.
Fig. 2B
A. Reverse Lock Hand
1. Rotate the latchbolt 180°.
2. Flip deadlatch by hand to match bevel of latchbolt.
B. Reverse Latch Hand
Locking piece
Locking
piece
Fig. 2A
180°
3 Configure the DIP Switch Settings
IMPORTANT: The DIP-switch settings located at the bottom of the mortise lock body*
must be set prior to lock installation.
Handing
RH & RHR
LH & LHR
*Patent Pending
Deadlatch
Up
Down
Fig. 3
