6 1-800-810-WIRE • www.sargentlock.com • A8190B
Copyright © 2016, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
07/31/16
IN100 Mortise Lock

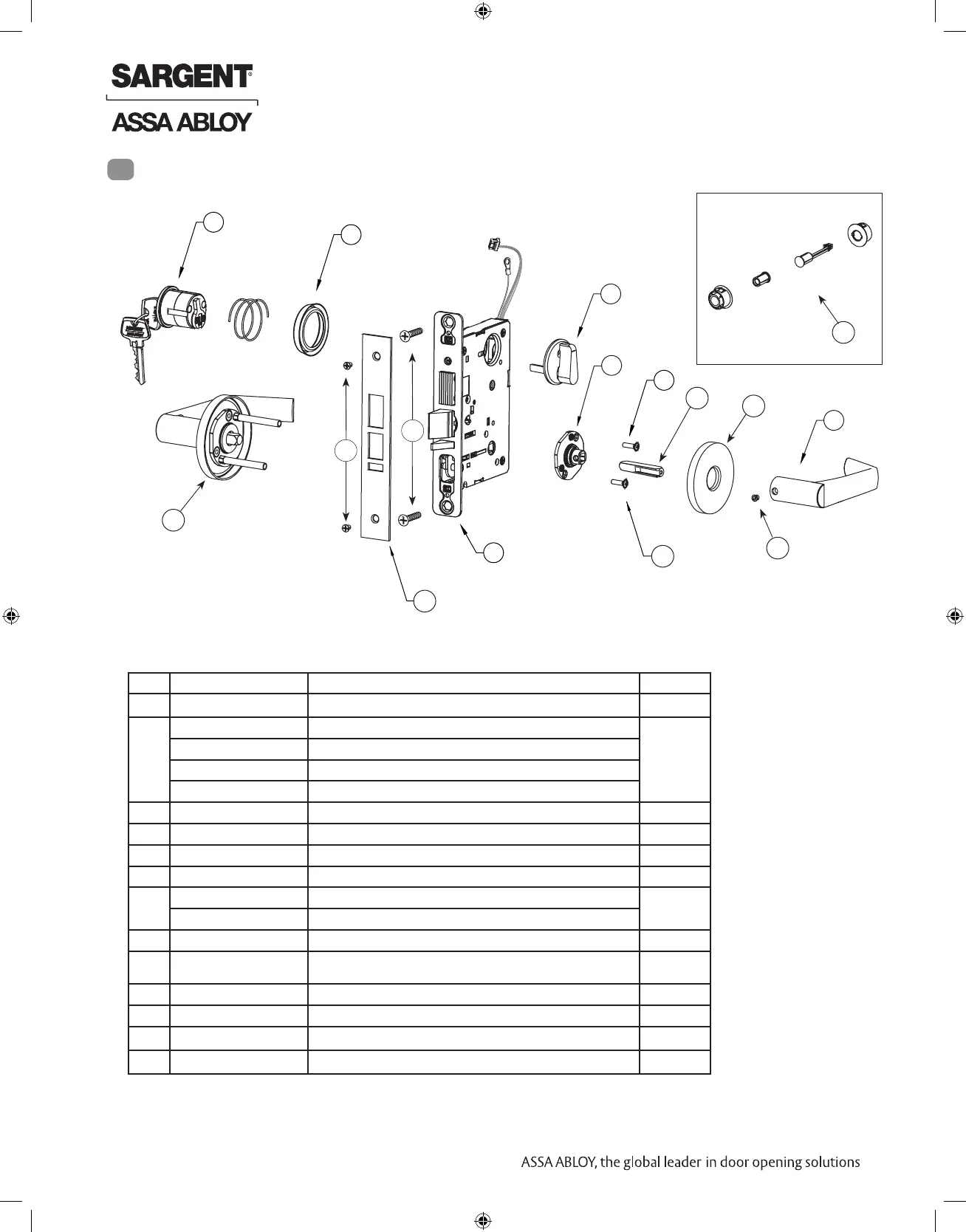

Parts Breakdown (Continued)
5
9
10
5
6
5
Tools Required:
• #2 Phillips screwdriver
• Flat head
• T20 Torx
®
driver
• Security allen wrench
11
3
1
2
10
5
5
5
4
7
8
ITEM
PART NO/ORDER
STRING
DESCRIPTION QTY
1 Consult Factory #41 Mortise cylinder 1
2 13-2131 97 Ring 1
3*
IN-100-7976-hand-finish Lock body with deadbolt with cylinder 1
IN-100-7977-hand-finish Lock body with deadbolt without cylinder
IN-100-7978-hand-finish Lock body without deadbolt with cylinder
IN-100-7979-hand-finish Lock body without deadbolt without cylinder
4 77-4081 130W Turn lever 1
5 79-2162 Trim pack 1
6 Consult Factory Rose
7 Consult Factory Inside lever 1
8 79-0035 Without deadbolt 1
79-0036 With deadbolt (shown)
9 52-5374 Door Position Switch (DPS) kit 1
10 77-4236 Mortise screw pack: wood and metal lock body screws, faceplate
screws, and strike screws - specify finish
1
11 Consult Factory Outside trim 1
12 A8150 Field prep template (not shown) 1
13 4713 Door manufacturers template (not shown) 1
14 A8190 Instructions (this manual) 1
*Escape return functionality is not available with the IN100 7900 mortise lock
