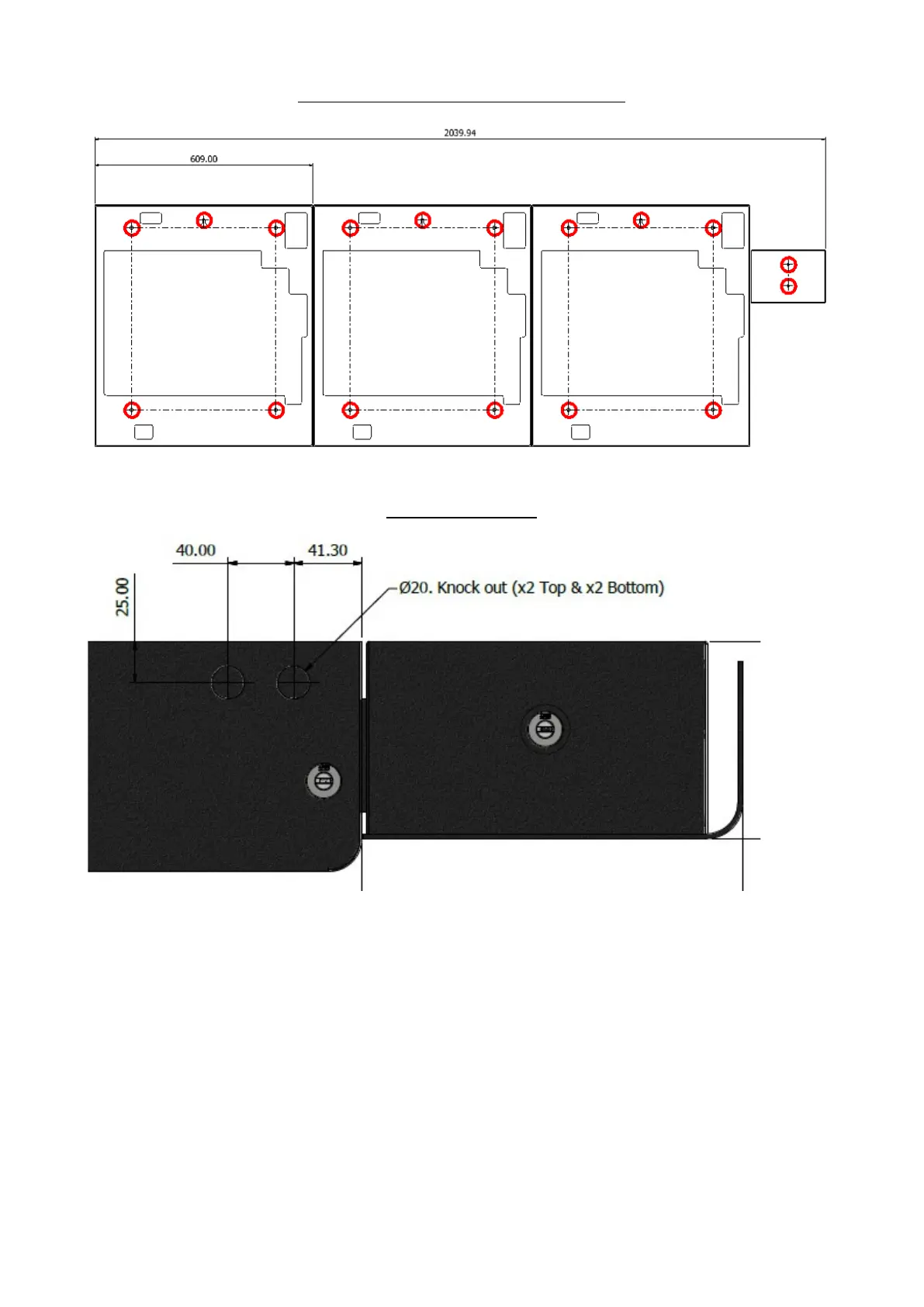

Traka Touch S System with Extension Cabinets
NOTE: Extension cabinets are the same dimensions as the main cabinet excluding the Pod.
Knockout Dimensions
NOTE: Traka systems can be quite heavy and therefore need a strong wall to fix to. Fixings are not
included and so when selecting the appropriate fixings it is essential they are strong enough to retain the
Traka System and not pull out from the wall.
NOTE: The wall (and any wall covering) to which the Traka System is fixed must be made of low
flammability material (at least 94 UL-5V flammability class equivalent).
