5.3 TOOLS AND MATERIALS REQUIRED FOR INSTALLATION
Traka does not provide tools and certain materials for the installation of the Traka Touch, you will need to source the
following…
• Drill
• Wall Fixings (appropriate for the type of wall you are fixing to)
• Large Flat Headed Screwdriver
• Hammer
• 20mm Grommet/Cable Gland
• 20mm Conduit (if needed)
• 4mm T-bar / Allen Key
• 7mm Nut Spinner/7mm Wrench
• T30 Torx Pin Screwdriver
5.4 WALL PREPARATION

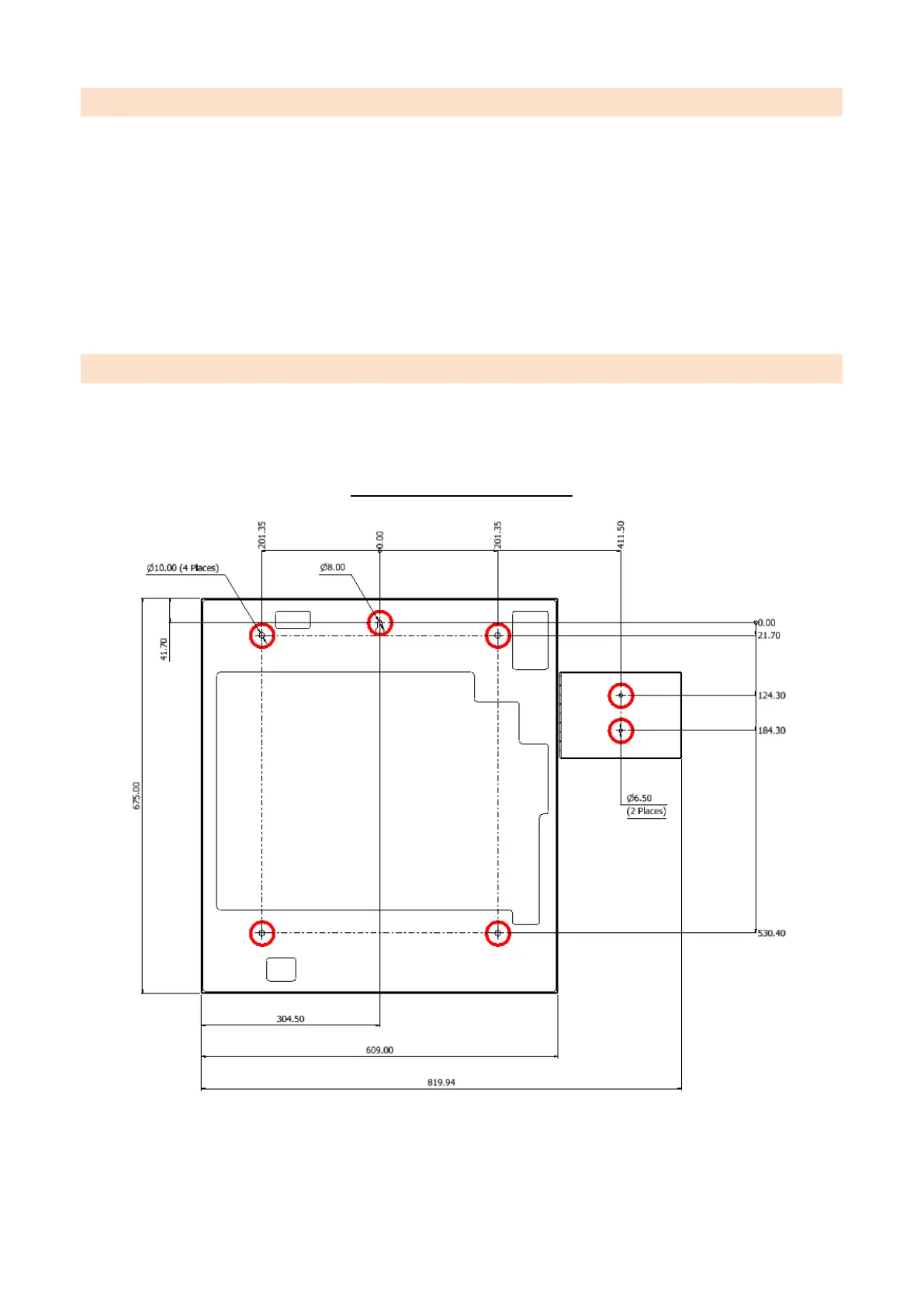

Using the below dimensioned drawings, ensure the area of wall is large enough to fit the system(s) and clear from any
obstructions. The chosen location for the main cabinet should be no further than 1 Metre from the mains spur.
NOTE: All dimensions are in mm.
Standard Traka Touch S System
