Asus D520MT (BM2CD) - D520 MT Rear Panel Connections; D520 MT LAN, VGA, and Serial Ports

Air vents. These vents allow air ventilation.
DO NOT block the air vents on the chassis. Always provide proper ventilation for your
computer.
VGA port. This port is for VGA-compatible devices such as a VGA monitor.
Serial port. This COM port is for pointing devices or other serial devices.
Serial port (on selected models only). This COM port is for pointing devices or other
serial devices.

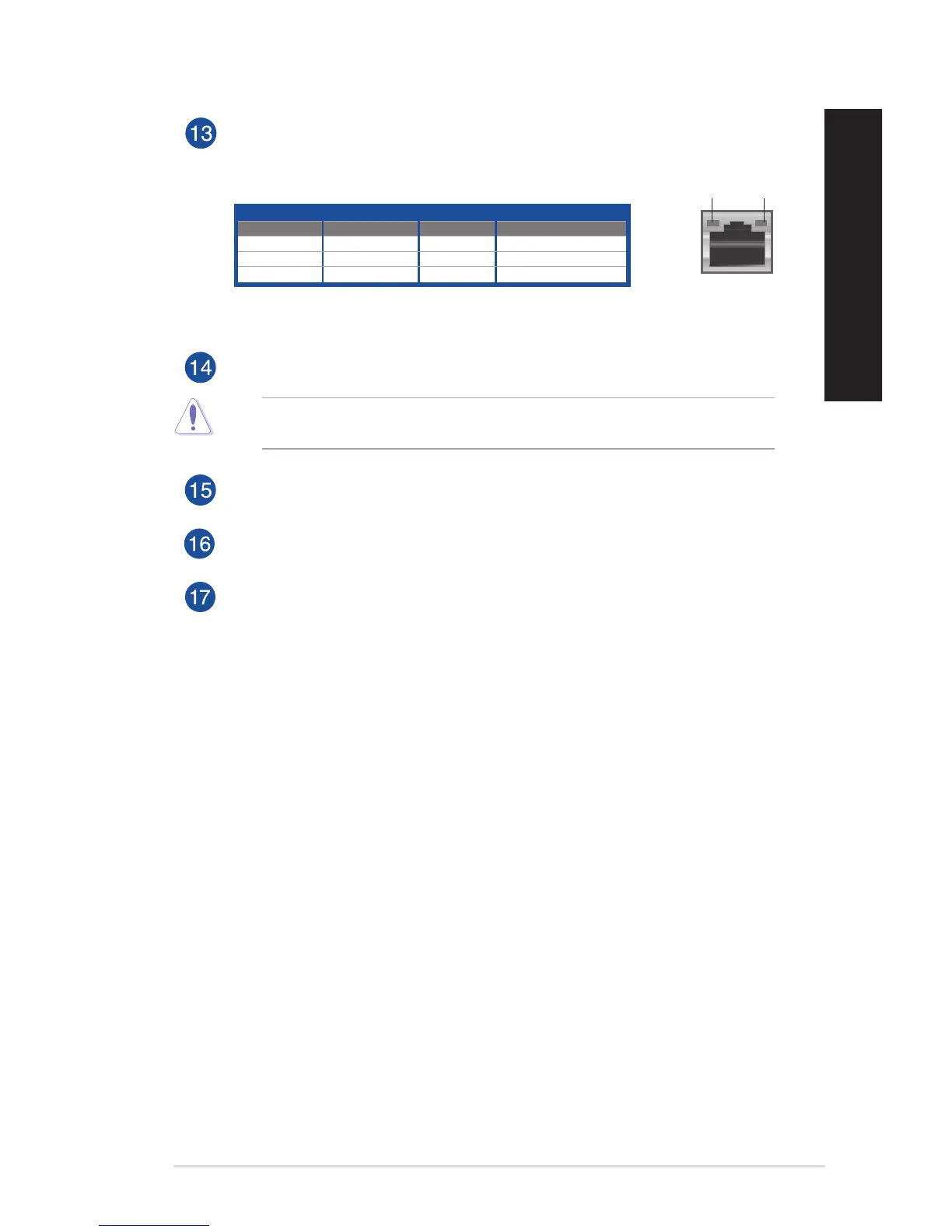

Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10Mbps connection
ORANGE Linked ORANGE 100Mbps connection
BLINKING Data activity GREEN 1Gbps connection
LAN port
SPEED
LED
ACT/LINK
LED
LAN (RJ-45) ports. These ports allow Gigabit connection to a Local Area Network (LAN)
through a network hub.
LAN port LED indications
