Asus H87-PLUS - Motherboard Layout

ASUS H87-PLUS
1-7
Chapter 1
Refer to 1.2.9 Internal connectors and 2.2.1 Rear I/O connection for more information
about rear panel connectors and internal connectors.

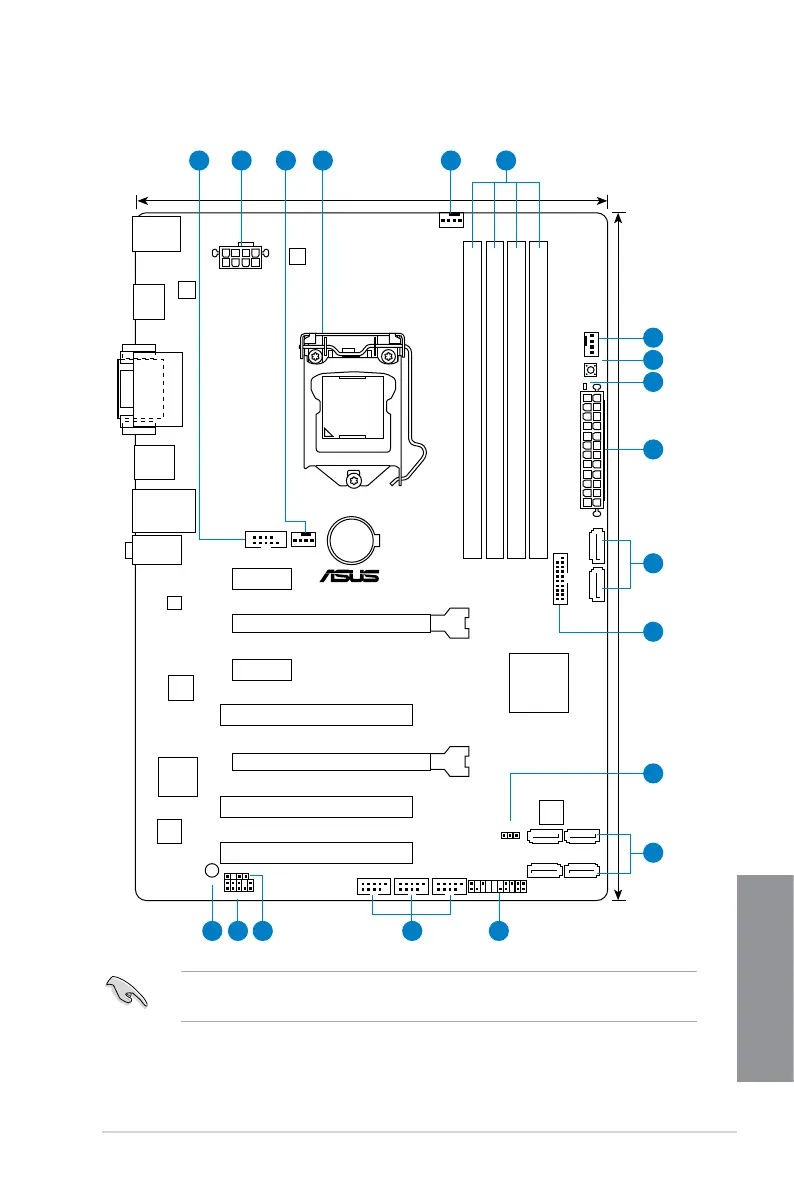

1.2.2 Motherboard layout
H87-PLUS
PCIEX16_1
PCIEX16_2
PCIEX1_1
PCIEX1_2
ASM
1083
PCI1
PCI2
PCI3
USB910 USB1112 USB1314
AAFP
EATXPWR
CPU_FAN
CHA_FAN2
BATTERY
Super
I/O
Realtek
ALC887
Realtek
8111G
KBMS
_USB78
DVI_VGA
64Mb
BIOS
SB_PWR
CLRTC
20.8cm(8.2in)
Intel
®
H87
DDR3 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_A2 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, 240-pin module) DDR3 DIMM_B2 (64bit, 240-pin module)
SATA6G_5SATA6G_6
PANEL
SATA6G_3
SATA6G_1SATA6G_2
SATA6G_4
AUDIO
LAN_USB3_56
USB34
HDMI
CHA_FAN1
SPDIF_OUT
30.5cm(12.0in)
LGA1150
DIGI
+VRM
ASM
1442
COM
EATX12V
USB3_12
DRAM_LED
MemOK!
32 31 4 5
1114 121315
2
3
6
10
8
9
8
7
