2.2 Motherboard rear and audio connections
2.2.1 Rear I/O connection
* and **: Refer to the tables on the next page for LAN port LEDs, and audio port denitions.

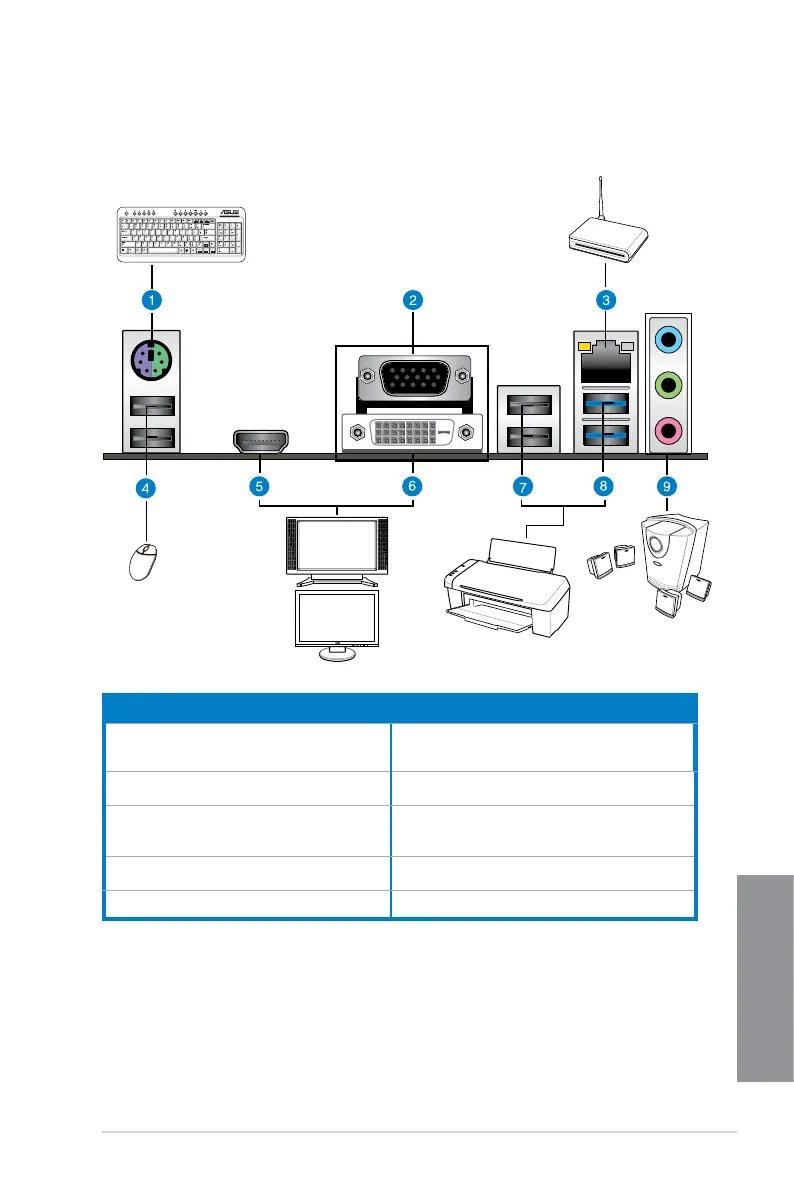

Rear panel connectors
1. PS/2 keyboard / mouse combo port 6. DVI-D port
2. Video Graphics Adapter (VGA) port 7. USB 2.0 ports 3 and 4
3. Realtek
®
LAN (RJ-45) port*
8. Intel USB 3.0 ports 5 and 6, support
ASUS USB 3.0 Boost
4. USB 2.0 ports 7 and 8 9. Audio I/O ports**
5. HDMI port
