ASUS H87-PLUS
2-9
Chapter 2

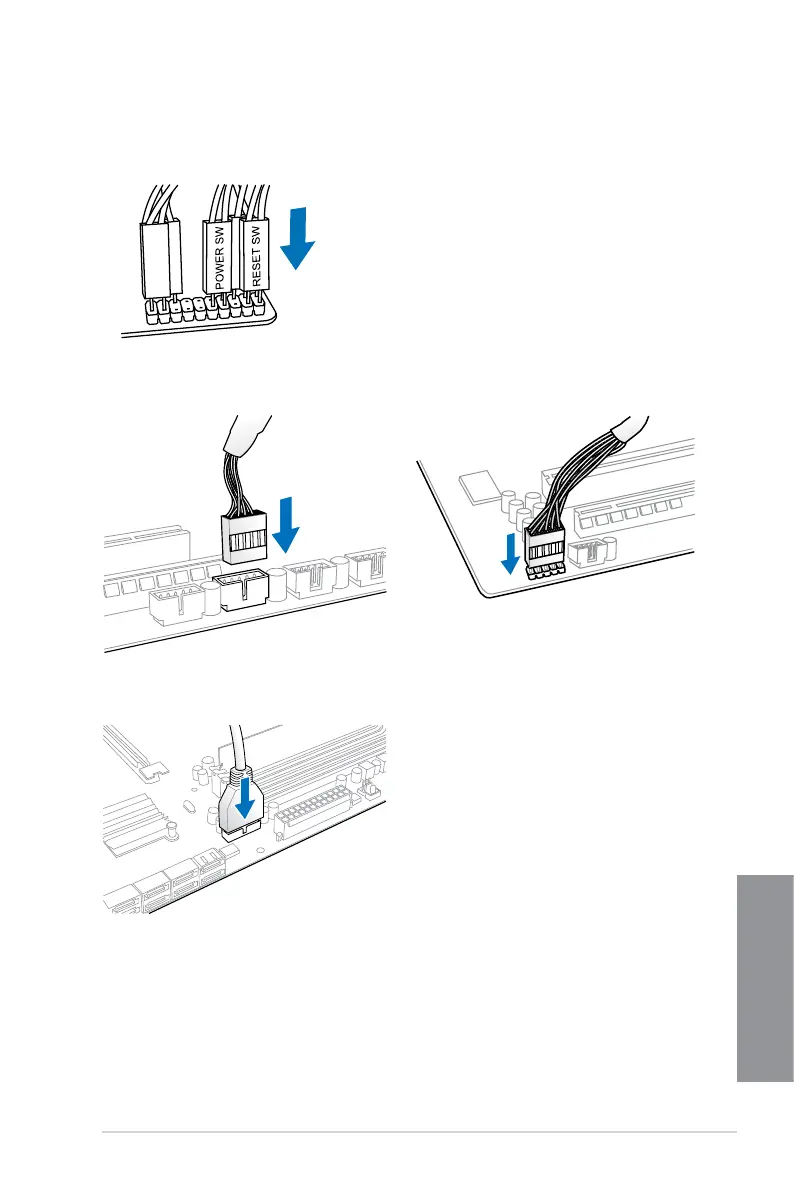

2.1.7 Front I/O Connector
To install the system panel connector
USB 2.0
AAFP
To install USB 2.0 connector To install front panel audio connector
USB 3.0
To install USB 3.0 connector
HDD_LED
