2-2
Chapter 2: Basic installation
Chapter 2

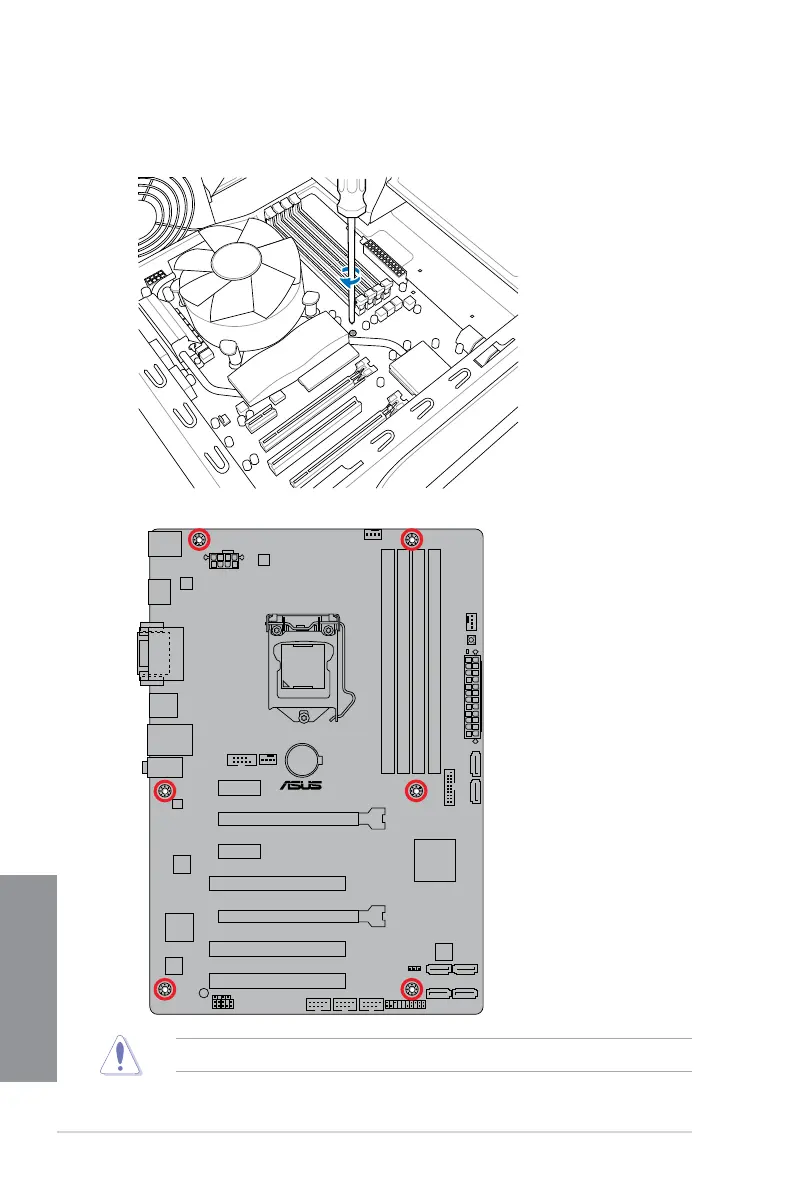

3. Place six screws into the holes indicated by circles to secure the motherboard to the
chassis.
DO NOT overtighten the screws! Doing so can damage the motherboard.
H87-PLUS
