Asus IPIBL-LA Berkeley-GL8E - Hdmi Connector

IPIBL-LA(Berkeley-GL8E) 15
IPIBL-LA
IPIBL-LA(Berkeley-GL8E)

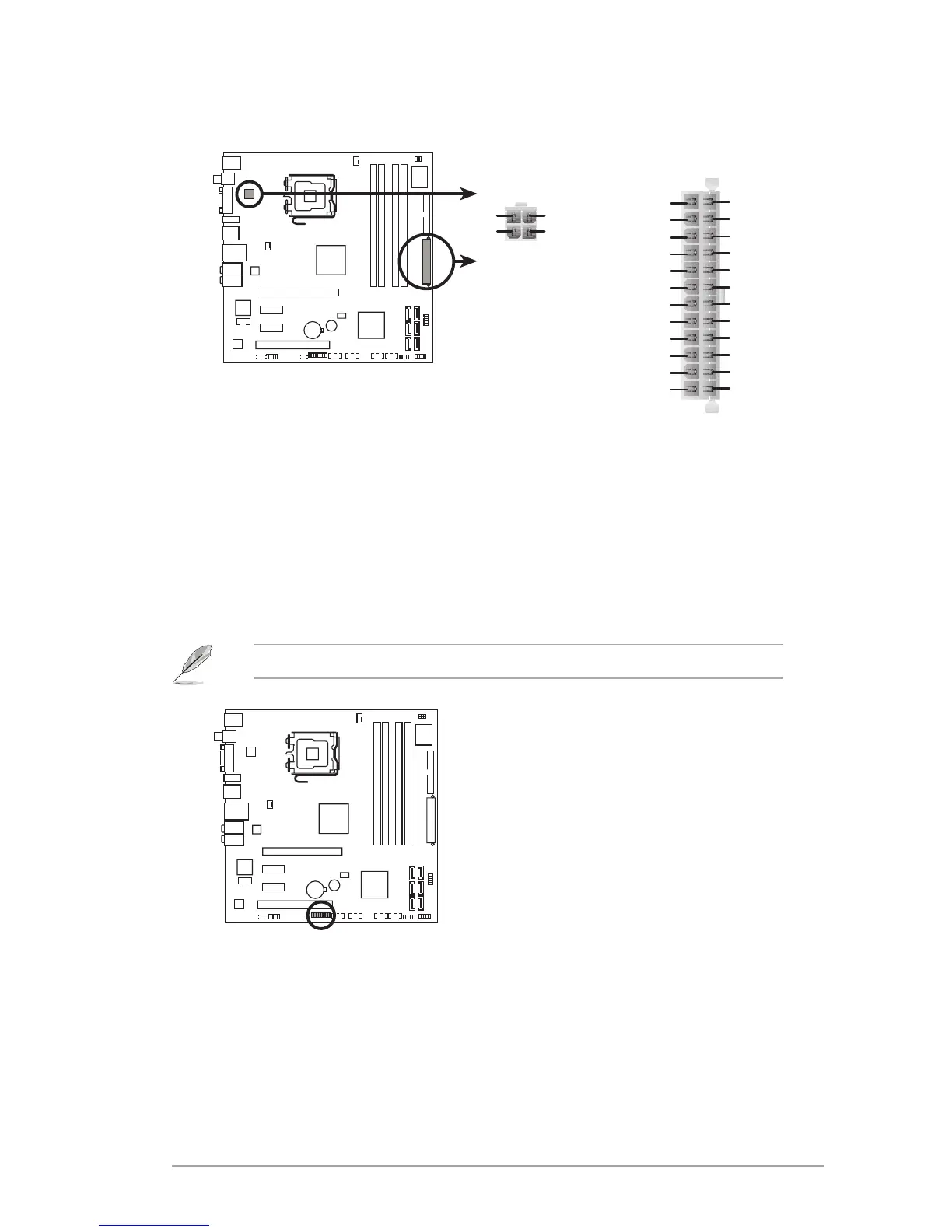

ATX power connectors
ATXPWR
ATX12V
+3 Volts
+3 Volts
Ground
+5 Volts
+5 Volts
Ground
Ground
Power OK
+5V Standby
+12 Volts
-5 Volts
+5 Volts
+3 Volts
-12 Volts
Ground
Ground
Ground
PSON#
Ground
+5 Volts
+12 Volts
+3 Volts
+5 Volts
Ground
+12V DC
GND
+12V DC
GND
3. HDMI connector (2x8 pin HDMI_HEADERS)
ThisconnectorisforanHigh-DenitionMultimediaInterface(HDMI)port(s).
ConnecttheHDMImodulecabletothisconnector,theninstallthemoduleto
a slot opening at the back of the system chassis.
TheHDMImoduleispurchasedseparately.
IPIBL-LA
IPIBL-LA(Berkeley-GL8E)
HDMI connector
