4. Serial ATA connectors (7-pin SATA1, SATA2, SATA3, SATA4, SATA5,
SATA6)
TheseconnectorsarefortheSerialATAsignalcablesforSerialATAharddisk
drives.
• Install the Windows
®
2000 Service Pack 4, Windows
®
XPServicePack1or
WindowsVistabeforeusingSerialATA.
• WhenusingtheconnectorsinStandardIDEmode,connecttheprimary
(boot)harddiskdrivetotheSATA1connector.

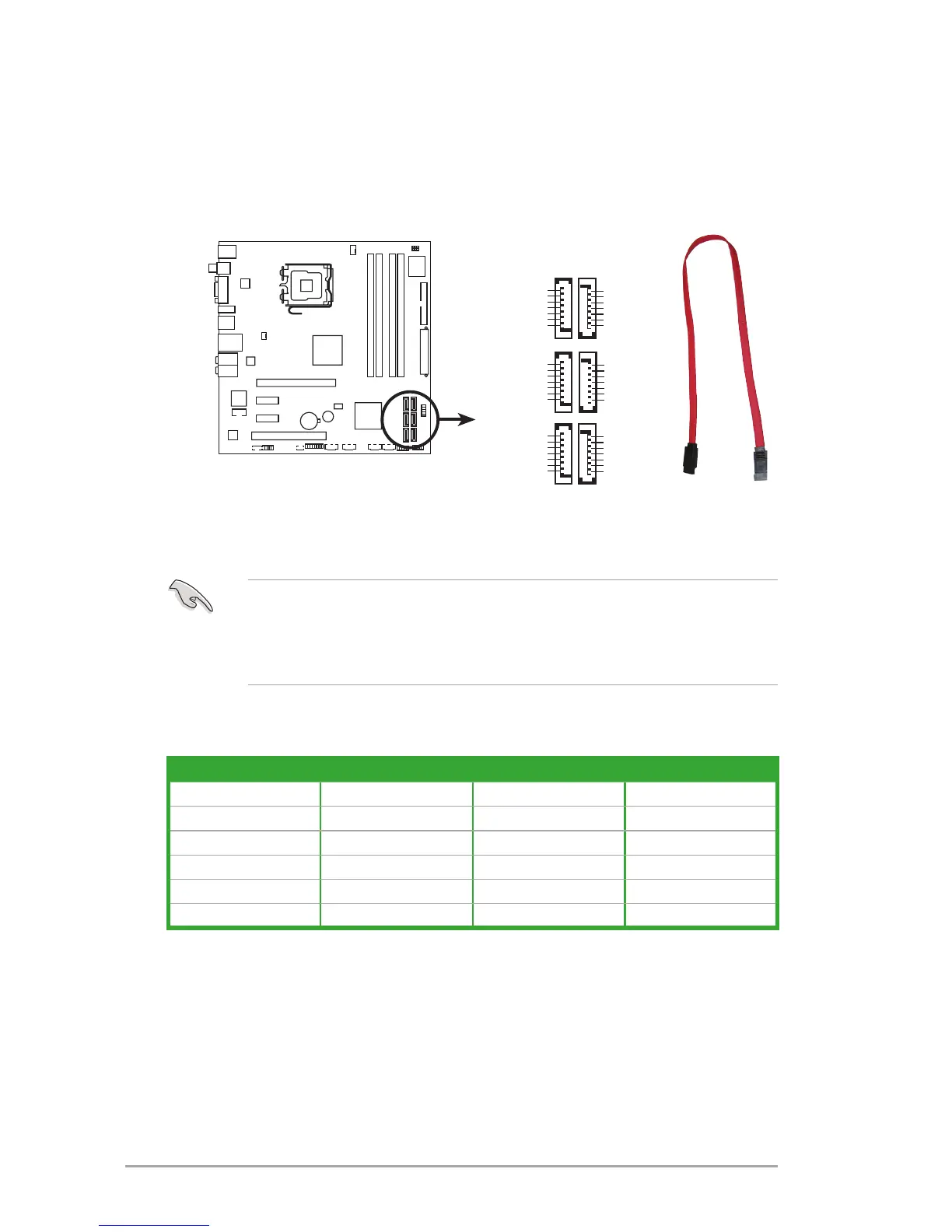

Serial ATA hard disk drive connection
IPIBL-LA
IPIBL-LA(Berkeley-GL8E)
SATA connectors
SATA3
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXP1
RSATA_RXN1
GND
SATA1 SATA2
SATA4
GND
RSATA_TXP4
RSATA_TXN4
GND
RSATA_RXP4
RSATA_RXN4
GND
SATA5 SATA6
GND
RSATA_TXP6
RSATA_TXN6
GND
RSATA_RXP6
RSATA_RXN6
GND
GND
RSATA_TXP3
RSATA_TXN3
GND
RSATA_RXP3
RSATA_RXN3
GND
GND
RSATA_TXP5
RSATA_TXN5
GND
RSATA_RXP5
RSATA_RXN5
GND
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXP2
RSATA_RXN2
GND
Connector Color Setting Use
SATA1 Black 1st Boot Disk
SATA2 White 2nd Boot Disk
SATA3 Red 5th Boot Disk
SATA4 Teal 6th Boot Disk
SATA5 Blue 3rd Boot Disk
SATA6 Yellow 4th Boot Disk
