12. System panel connector (10-1 pin F_PANEL)
 Thisconnectorsupportsseveralchassis-mountedfunctions.
• System power LED (2-pin PLED)
This2-pinconnectorisforthesystempowerLED.Connectthechassis
powerLEDcabletothisconnector.ThesystempowerLEDlightsupwhen
youturnonthesystempower,andblinkswhenthesystemisinsleepmode.
• Hard disk drive activity LED (2-pin HDLED)
This2-pinconnectorisfortheHDDActivityLED.ConnecttheHDDActivity
LEDcabletothisconnector.TheIDELEDlightsuporasheswhendatais
read from or written to the HDD.
• ATX power button /Soft-off button (2-pin PWR)
Thisconnectorisforthesystempowerbutton.Pressingthepowerbutton
turnsthesystemONorputsthesysteminSLEEPorSOFT-OFFmode
depending on the BIOS settings. Pressing the power switch for more than
foursecondswhilethesystemisONturnsthesystemOFF.
• Reset button (2-pin RESET)
This2-pinconnectorisforthechassis-mountedresetbuttonforsystem
rebootwithoutturningoffthesystempower.

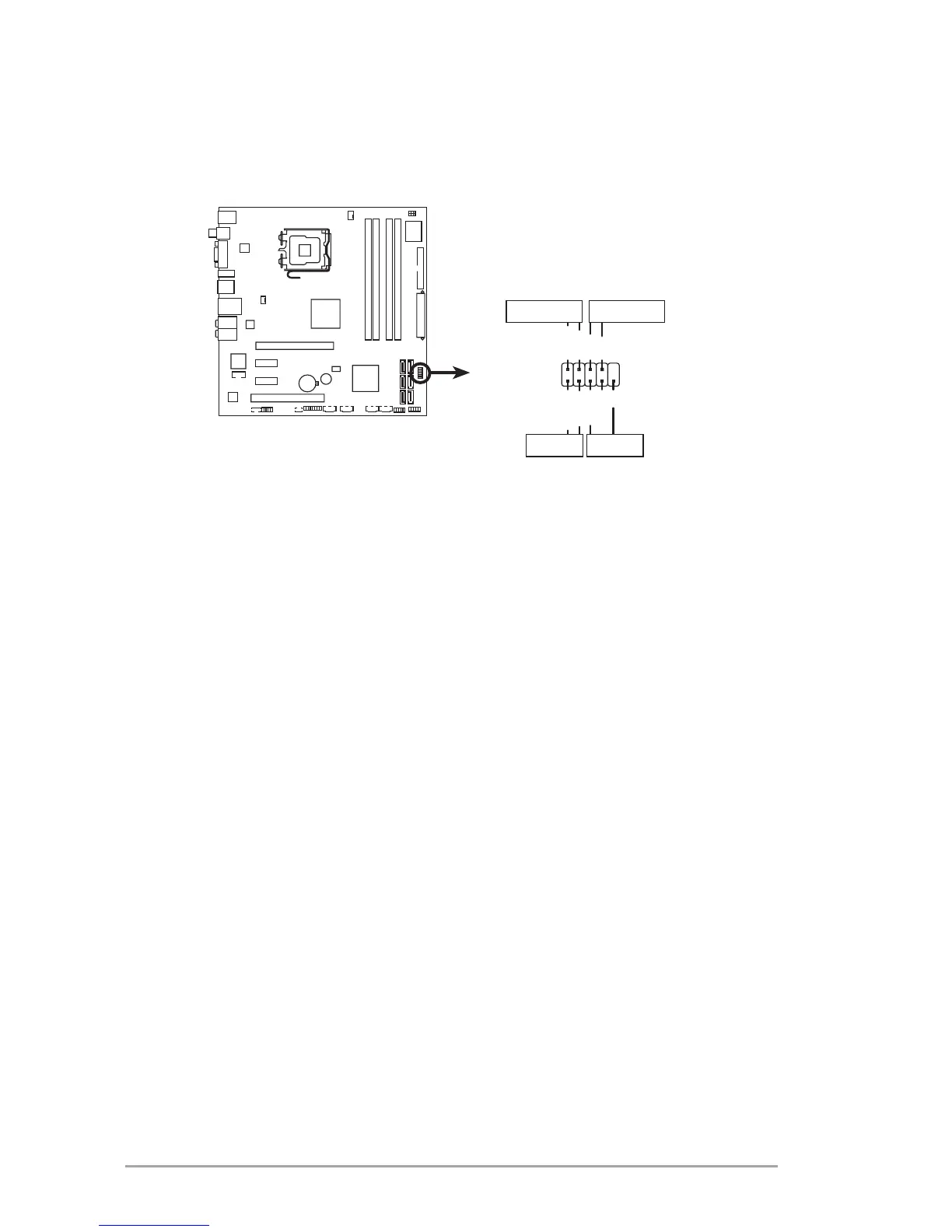

IPIBL-LA
IPIBL-LA(Berkeley-GL8E)
System panel connector
F_PANEL
PLED- PWR PLED+
Ground
GNDReset
HDLED+
HDLED-
HD LED RESET
PWR LED PWR BTN
NC
