Asus P5SD2-VM User Manual

1-14 Chapter 1: Product introduction

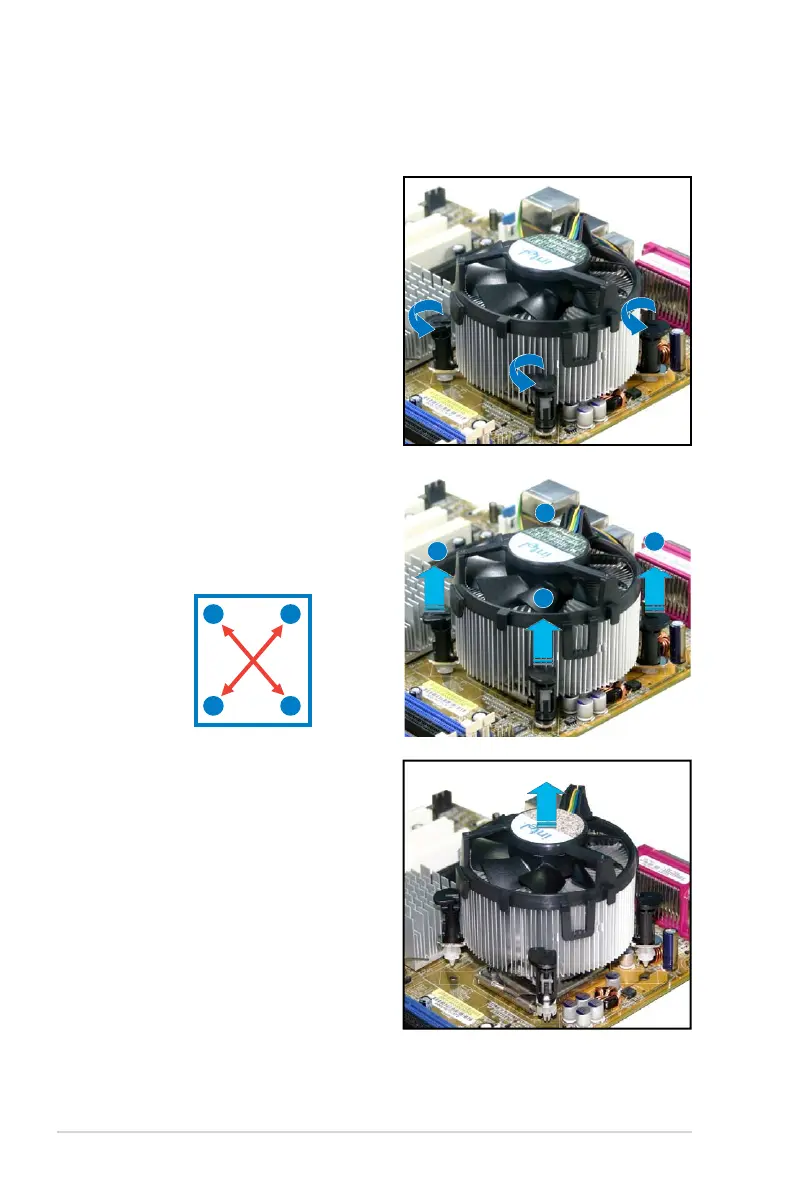

1.6.3 Uninstalling the CPU heatsink and fan
To uninstall the CPU heatsink and fan:
1. Disconnect the CPU fan cable from
the connector on the motherboard.
2. Rotate each fastener
counterclockwise.
3. Pull up two fasteners at a time in
a diagonal sequence to disengage
the heatsink and fan assembly
from the motherboard.
B
B
A
A
A
A
B
B
4. Carefully remove the heatsink
and fan assembly from the
motherboard.

Asus P5SD2-VM Specifications

General

Form Factor	Micro ATX
Socket	LGA 775
Front Side Bus	1066/800/533 MHz
Memory Type	DDR2
Memory Slots	2 x DIMM
Maximum Memory	2 GB
LAN	Realtek RTL8201CL 10/100 Mbps Ethernet
USB Ports	8 x USB 2.0
Supported CPU	Intel Pentium 4
Expansion Slots	1 x PCIe x16
Audio	6-channel HD Audio
Integrated Graphics	SiS Mirage 1
