1-16 Chapter 1: Product introduction
1.7 System memory
1.7.1 Overview
The motherboard comes with two Double Data Rate 2 (DDR2) Dual Inline Memory
Modules (DIMM) sockets.
A DDR2 module has the same physical dimensions as a DDR DIMM but has a
240-pin footprint compared to the 184-pin DDR DIMM. DDR2 DIMMs are notched
differently to prevent installation on a DDR DIMM socket.

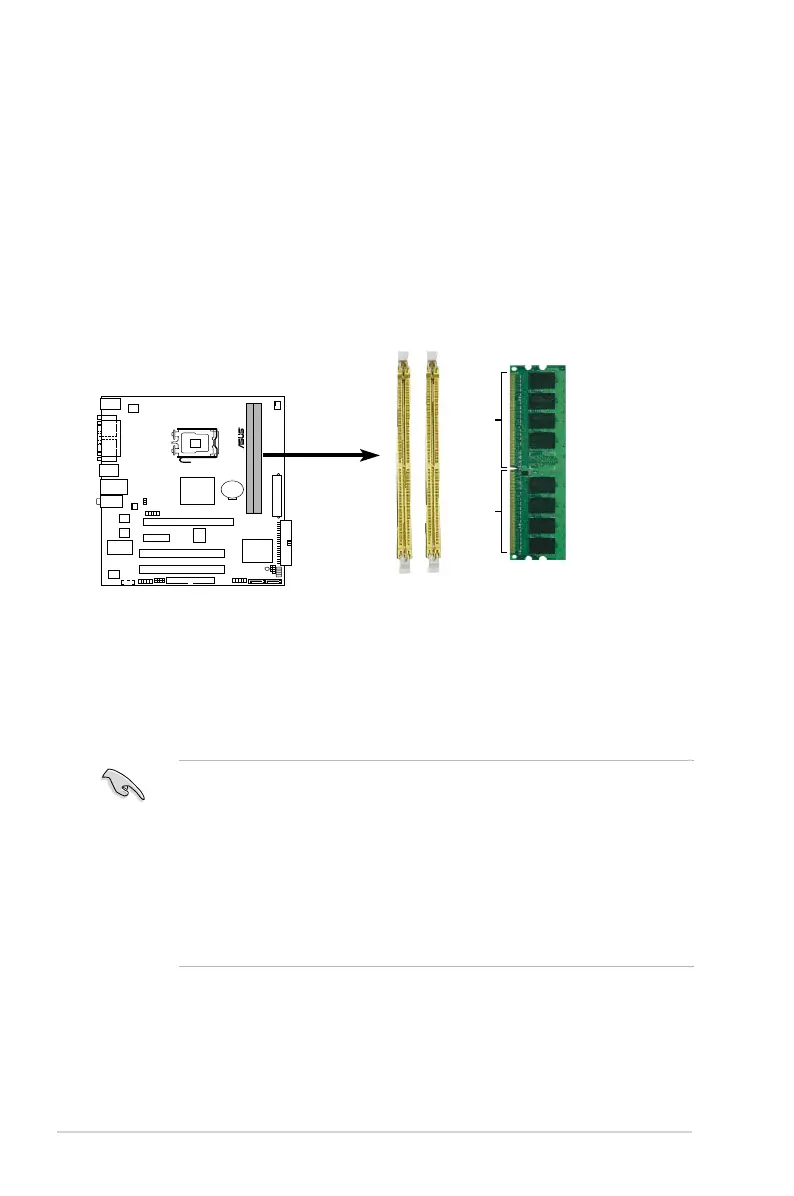

The gure illustrates the location of the DDR2 DIMM sockets:
1.7.2 Memory congurations
You may install 512 MB, 1 GB and 2 GB unbuffered non-ECC DDR2 DIMMs into
the DIMM sockets.
P5SD2-VM
240-pin DDR2 DIMM Sockets
P5 SD 2-V M
128 Pins
112 Pins
DIMM2
DIMM1
Always install DIMMs with the same CAS latency. For optimum compatibility,
it is recommended that you obtain memory modules from the same vendor.
I f y o u ins t all t wo 2 G B m emory m o d ules , t h e s y stem ma y o n ly
recognize less than 3GB because the address space is reserved for
other critical functions. This limitation appears on Windows
®
XP 32-bit
operation system which does not support Physical Address Extension (PAE).
If you install Windows
®
XP 32-bit operation system, a total memory of less
than 3GB is recommended.
