1.10 Connectors

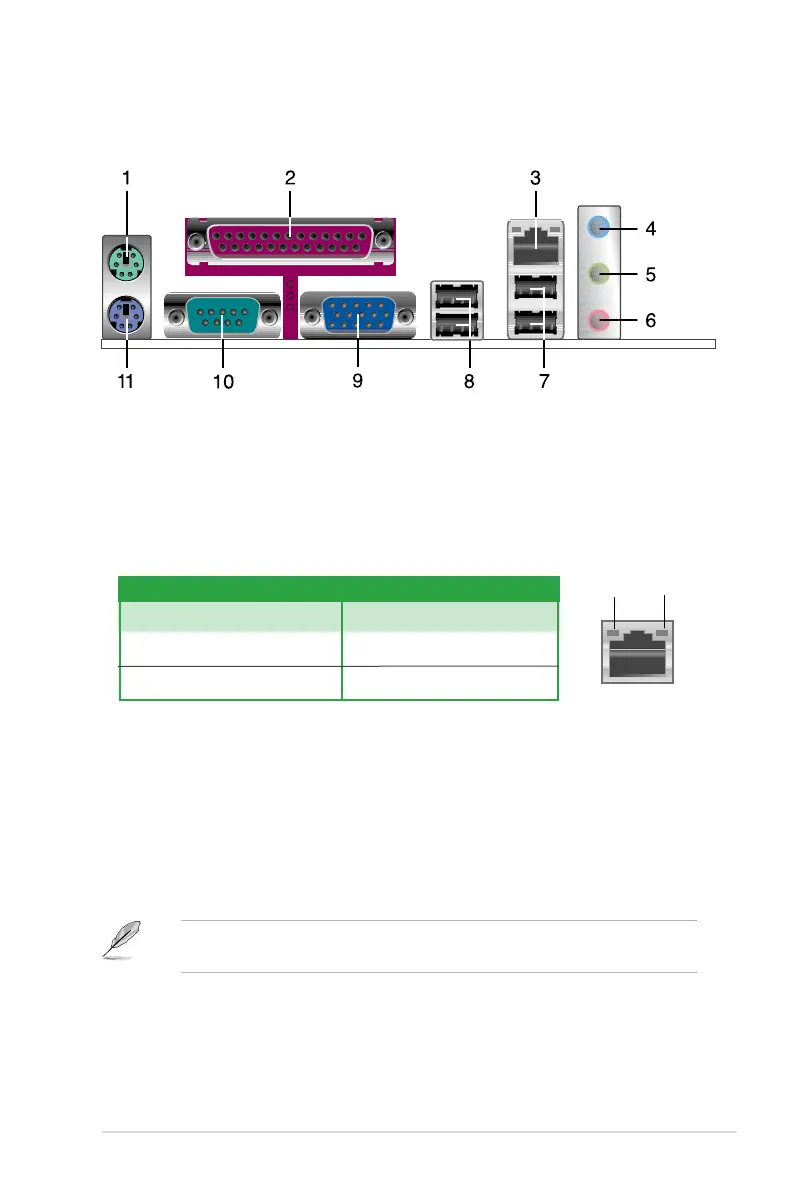

1.10.1 Rear panel connectors

1. PS/2 mouse port (green). This port is for a PS/2 mouse.

Parallel port. This 25-pin port connects a parallel printer, a scanner, or other

devices.

3. LAN (RJ-45) port.

This port allows Network (LAN) through a network hub.

4. Line In port (light blue).

This port connects the tape, CD, DVD player, or

other audio sources.

5. Line Out port (lime).

This port connects a headphone or a speaker. In

4-channel and 6-channel conguration, the function of this port becomes

Front Speaker Out.

6. Microphone port (pink).

This port connects a microphone.

Refer to the audio conguration table below for the function of the audio ports in

2, 4, or 6-channel conguration.

LAN port LED indications

LAN port

GREEN

ORANGE

ORANGE LED GREEN LED

Status Description Status Description

OFF No link OFF No Link

Orange 100 Mbps connection Green 10 Mbps connection
