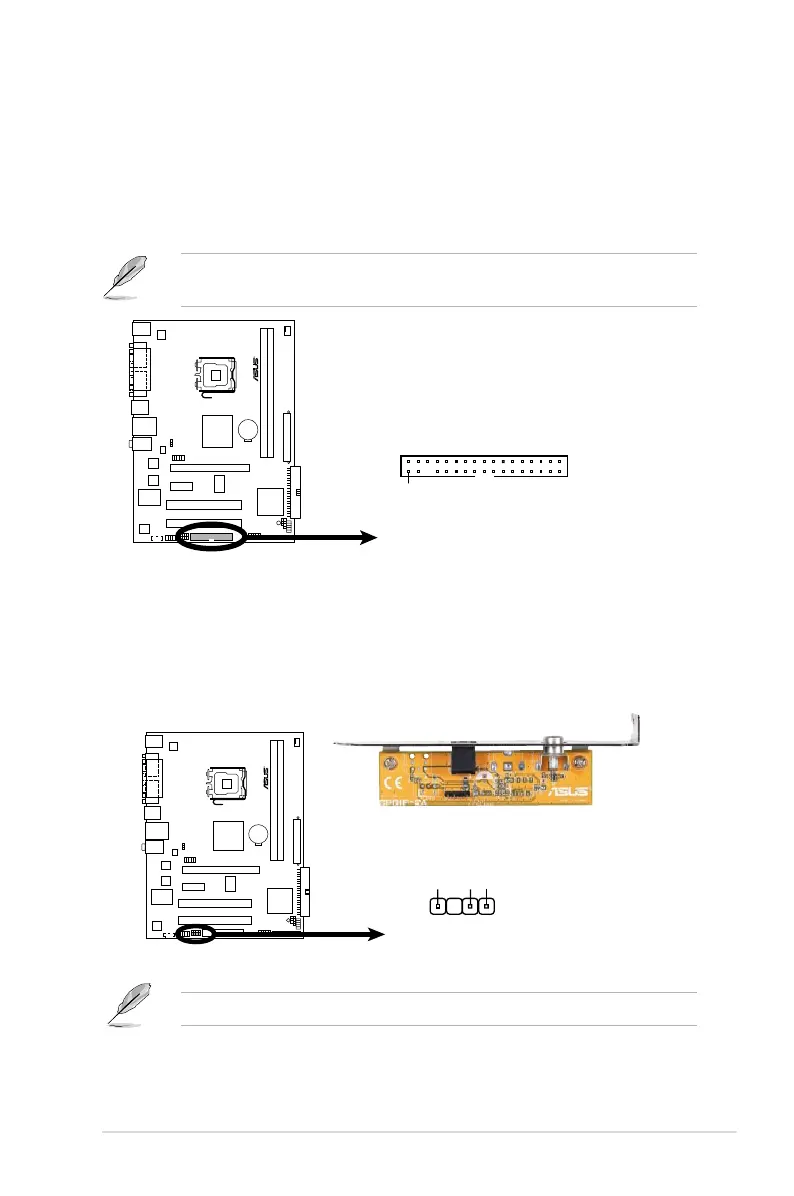

ASUS P5SD2-VM 1-29

1.10.2 Internal connectors

1. Floppy disk drive connector (34-1 pin FLOPPY)

This connector is for the provided oppy disk drive (FDD) signal cable. Insert

one end of the cable to this connector, then connect the other end to the

signal connector at the back of the oppy disk drive.

Pin 5 on the connector is removed to prevent incorrect cable connection when

using a FDD cable with a covered Pin 5.

P5SD2-VM

Floppy Disk Drive Connector

P5 SD2 -VM

NOTE:

Orient the red markings on

the floppy ribbon cable to PIN 1.

PIN1

FLOPPY

2. Digital Audio connector (4-1 pin SPDIF_OUT)

This connector is for the S/PDIF audio module to allow digital sound output.

Connect one end of the S/PDIF audio cable to this connector and the other

end to the S/PDIF module.

The S/PDIF out module is purchased separately.

P5SD2-VM Digital Audio Connector

P5 SD2 -V M

+5V

SPDIFOUT

GND

SPDIF_OUT
